Upgrading Firmware

MXD/T-701 7" Modero X Series® G5 Touch Panels

Installing Touch Panel Pages From An External Disk

TPDesign5 page files may be loaded onto a touch panel, both via TPDesign5 and through files saved to a USB-enabled

external drive.To load TPD5 pages via USB:

1. Download the panel pages and save them to a USB stick or other external drive with USB capability.

2. Insert the USB stick into an available USB port. This may require disassembling wall-mounted touch panels to

access the USB ports if a USB extension was not already installed.

3. From the Reset & Update window, select Install Pages from External Disk to open the TP5 File Browser window

(FIG. 28). The page files or the folder in which they are stored will appear in the window.

4. Select the files, and click OK.

5. The pages will be uploaded to the touch panel.

Removing User Pages From a Touch Panel

In order to remove user pages from a Modero X Series G5 touch panel:

1. From the Reset and Update menu, select Remove User Pages to open the Remove User Pages window (FIG. 29).

2. To return to the Reset and Update menu without saving any changes, click No. To remove the user pages from the

touch panel, click Yes.

Upgrading Firmware Via NetLinx Studio (v3.4 or higher)

G5 touch panels use an Ethernet connection for programming, firmware updates, and touch panel file transfer via

NetLinx Studio. If you have access to the panel’s network, you may transfer files directly to the panel through NetLinx

Studio.

NetLinx Studio (v3.4 or higher) features the ability to transfer G5 firmware files directly to a G5 touch panel via HTTP

(via a stand-alone web server). This feature is provided to shorten the amount of time required for transferring a G5 *.kit

file by removing the NetLinx Master from the transfer path.

*.kit files for G5 panels contain a token to signify to NetLinx Studio that a web server file transfer can take place, as

indicated in the file information window of the Send To NetLinx Device dialog:

Look for "**** HTTP File Transfer Capable ****" at the end of the file (see FIG. 31 on page 28).

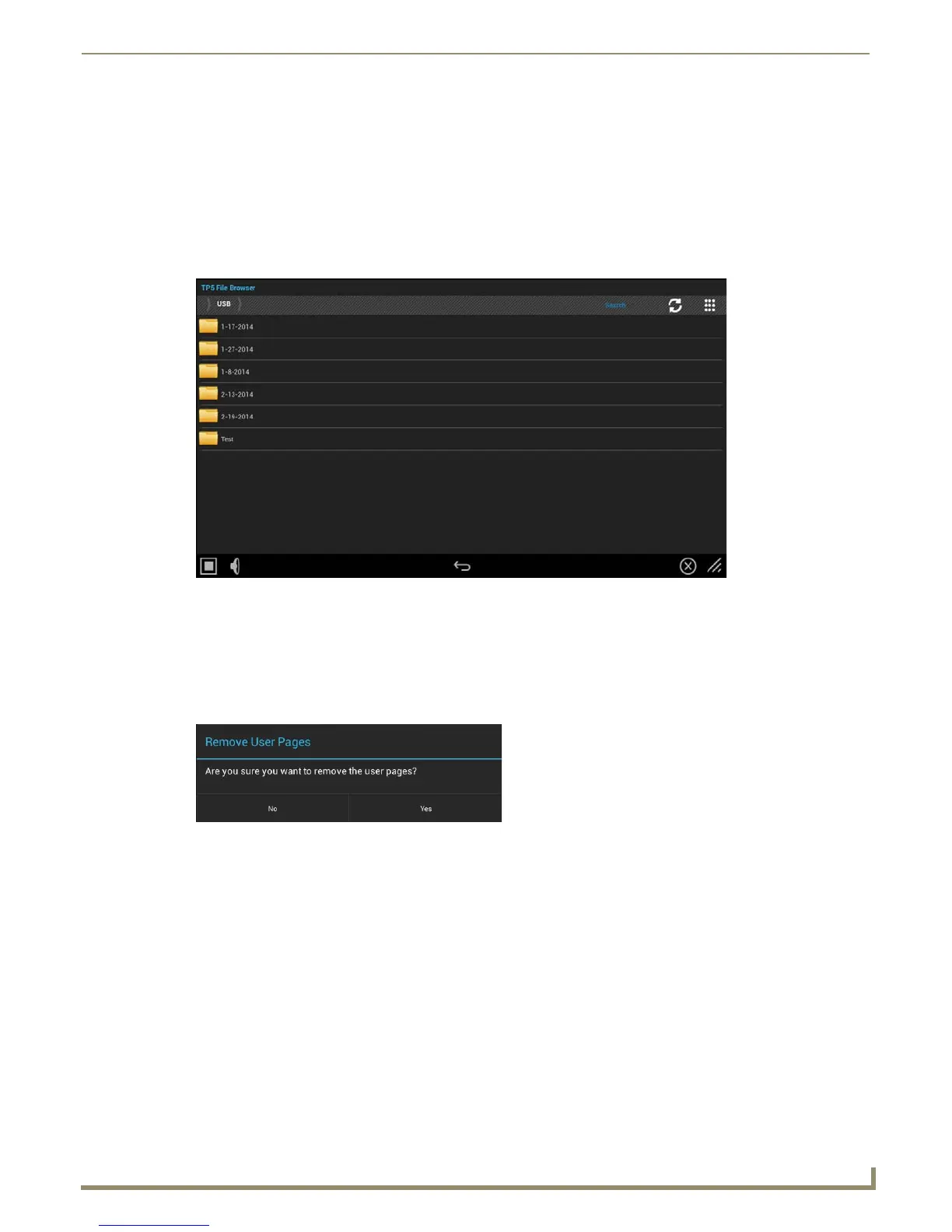

FIG. 28 TPDesign5 File Browser window

FIG. 29 Remove User Pages window
