Upgrading Firmware

MXD/T-701 7" Modero X Series® G5 Touch Panels

Installing New Firmware From An External USB Stick

To install new firmware to the touch panel from an external disk via the Settings app:

1. Download the latest Modero X Series G5 touch panel firmware from www.amx.com and save it to a USB stick or

other external drive with USB capability.

2. Insert the USB stick into an available USB port. This may require disassembling wall-mounted touch panels to

access the USB ports if a USB extension was not already installed.

3. From the Firmware Update window, select Install Firmware from USB to open the KIT File Browser window

(FIG. 26).

4. Select the KIT file to be installed.

5. The device will now upload the new firmware (FIG. 27) and then reboot.

The firmware can be saved at the root directory, or be saved in a folder in the USB

stick directory.The folder name is not case sensitive.

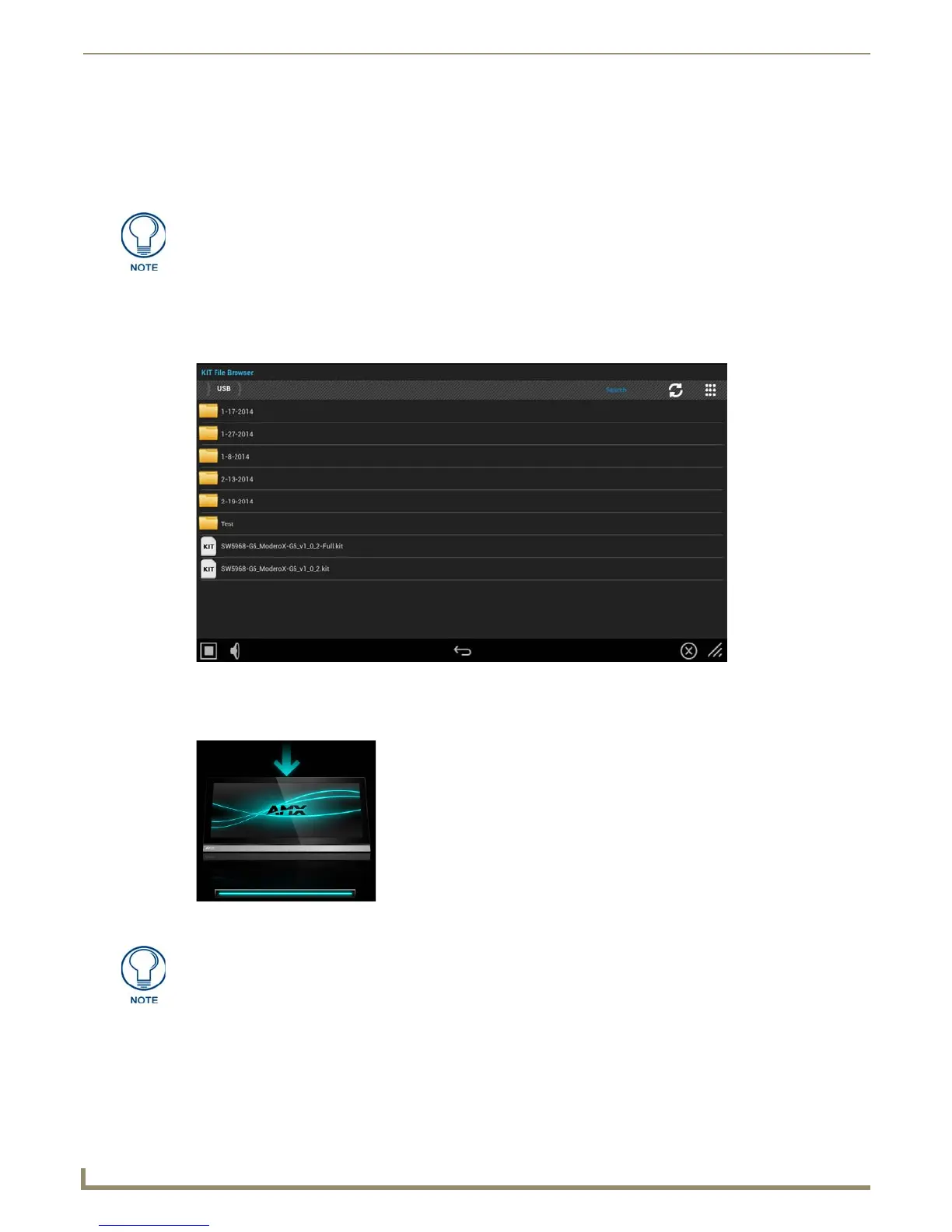

FIG. 26 KIT File Browser window

FIG. 27 Update Progress display

For more information on updating firmware for your touch panel, please refer to the

Modero X Series G5 Programming Guide, available at www.amx.com.
