Modero X Series® G5 Touch Panels
8
MXD/T-701 7" Modero X Series® G5 Touch Panels
A Note On The Touch Panel Aspect Ratio
While the touch panel's screen’s physical dimensions fall between 16:9 and 16:10, any incoming video stream can be
scaled to 16:9 if needed. This may lead to some letter boxing around the video in some cases.
Memory
The MXD-701 comes with 2GB of SDRAM and 16GB of Flash memory, neither of which can be upgraded. A maximum
of 12GB is available to the user for projects.
Basic Operation
The MXD-701 is operated using its integral touchscreen, as well as the Sleep/Settings button on the top of the device
(FIG. 4). If the device has gone into its Sleep Mode, a touch of the touchscreen or of the Sleep/Settings button will
reactivate it.
Powering on the MXD-701
The MXD-701 may be powered on by touching and holding the Sleep/Settings button on the top of the device.
Microphone
The MXD-701 contains a built-in microphone above the touch screen for video and audio conferencing capabilities. This
microphone is concealed by the casing.
Audio/Video Capabilities
The MXD-701 has the capability of displaying multiple JPEG and PNG files at one time. The device also supports
streaming motion JPEG video (of the sort used by many IP and Web cameras), as well as MP3 and WAV audio files.
* - Feature will be supported in a future firmware update

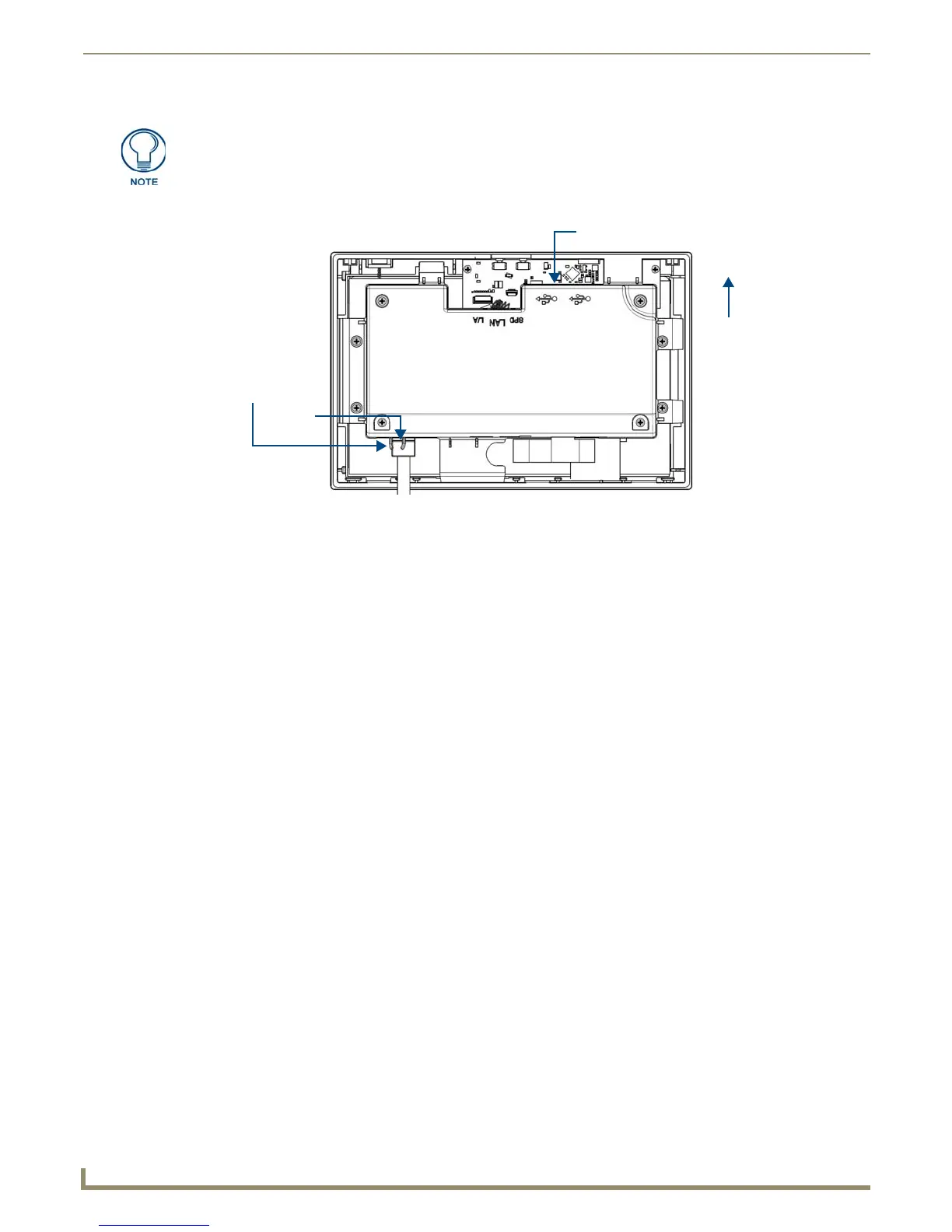

FIG. 6 Rear of the MXD-701 (Landscape)
RJ45
Port
USB
Port
Top
RJ45
Cable
Clip
