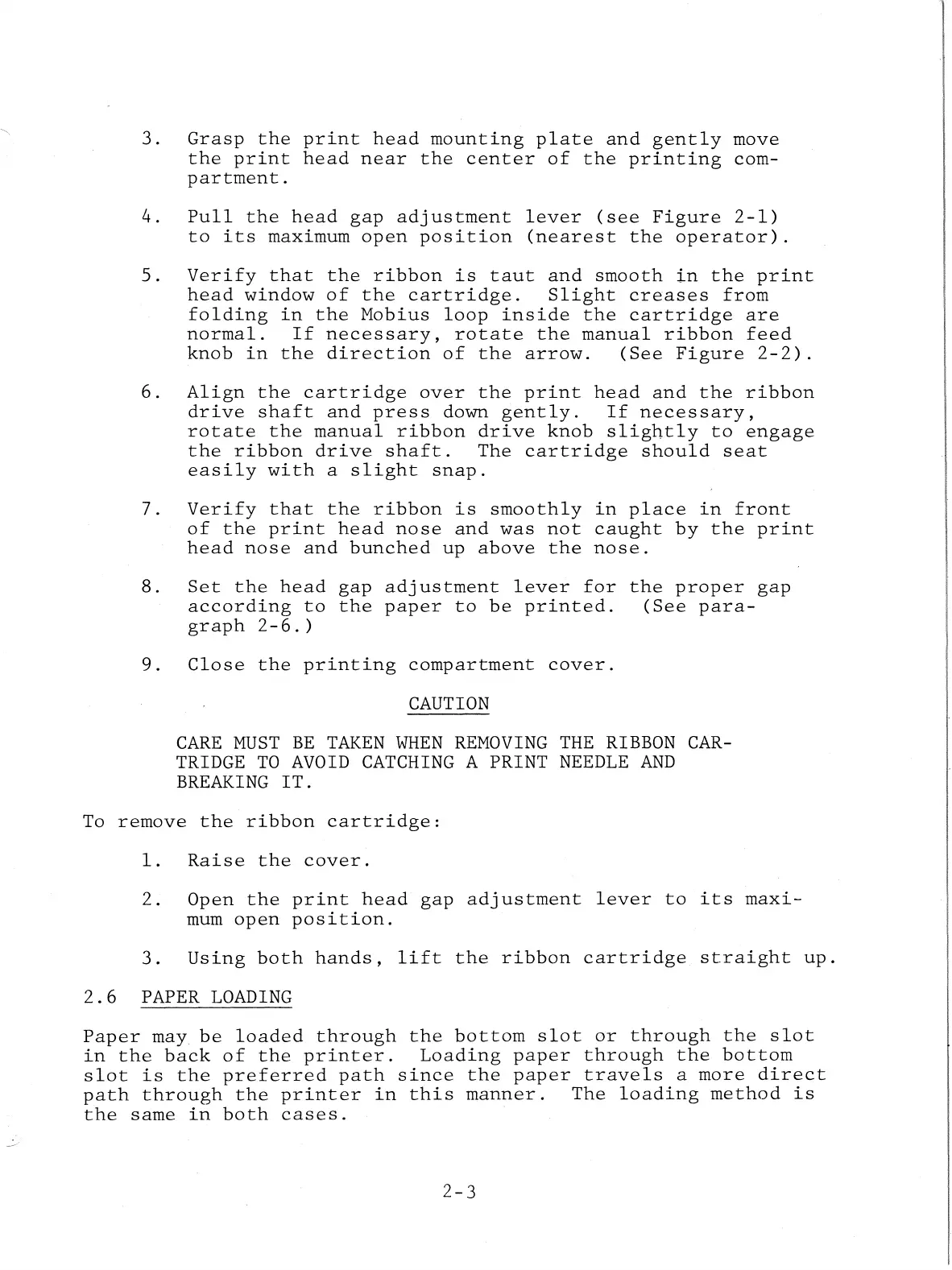

3.
Grasp
the
print
head
mounting
plate
and
gently
move
the
print
head
near
the
center
of
the
printing
com-
partment.
4.
Pull
the
head
gap
adjustment
lever
(see
Figure
2-1)
to
its
maximum
open
position
(nearest
the
operator).
5.
Verify
that
the
ribbon
is
taut
and
smooth
in
the
print
head
window
of
the
cartridge.
Slight
creases
from
folding
in
the
Mobius
loop
inside
the
cartridge
are
normal.
If
necessary,
rotate
the
manual
ribbon
feed
knob
in
the
direction
of
the
arrow.
(See
Figure
2-2).
6.
Align
the
cartridge
over
the
print
head
and
the
ribbon
drive
shaft
and
press
down
gently.
If
necessary,
rotate
the
manual
ribbon
drive
knob
slightly
to
engage
the
ribbon
drive
shaft.
The
cartridge
should
seat
easily
with
a
slight
snap.
7.
Verify
that
the
ribbon
is
smoothly
in
place
in
front
of
the
print
head
nose
and
was
not
caught
by
the
print
head
nose
and
bunched
up
above
the
nose.
8.
Set
the
head
gap
adjustment
lever
for
the
proper
gap
according
to
the
paper
to
be
printed.
(See
para-
graph
2-6.)
9.
Close
the
printing
compartment
cover.
CAUTION
CARE
MUST
BE
TAKEN
WHEN
REMOVING
THE
RIBBON
CAR-
TRIDGE
TO
AVOID
CATCHING
A PRINT
NEEDLE
AND
BREAKING
IT.
To
remove
the
ribbon
cartridge:
1.
Raise
the
cover.
2.
Open
the
print
head
gap
adjustment
lever
to
its
maxi-
mum
open
position.
3.
Using
both
hands,
lift
the
ribbon
cartridge
straight
up.
2.6
PAPER
LOADING
Paper
may.
be
loaded
through
the
bottom
slot
or
through
the
slot
in
the
back
of
the
printer.
Loading
paper
through
the
bottom
slot
is
the
preferred
path
since
the
paper
travels
a
more
direct
path
through
the
printer
in
this
manner.
The
loading
method
is
the
same
in
both
cases.
2-3
