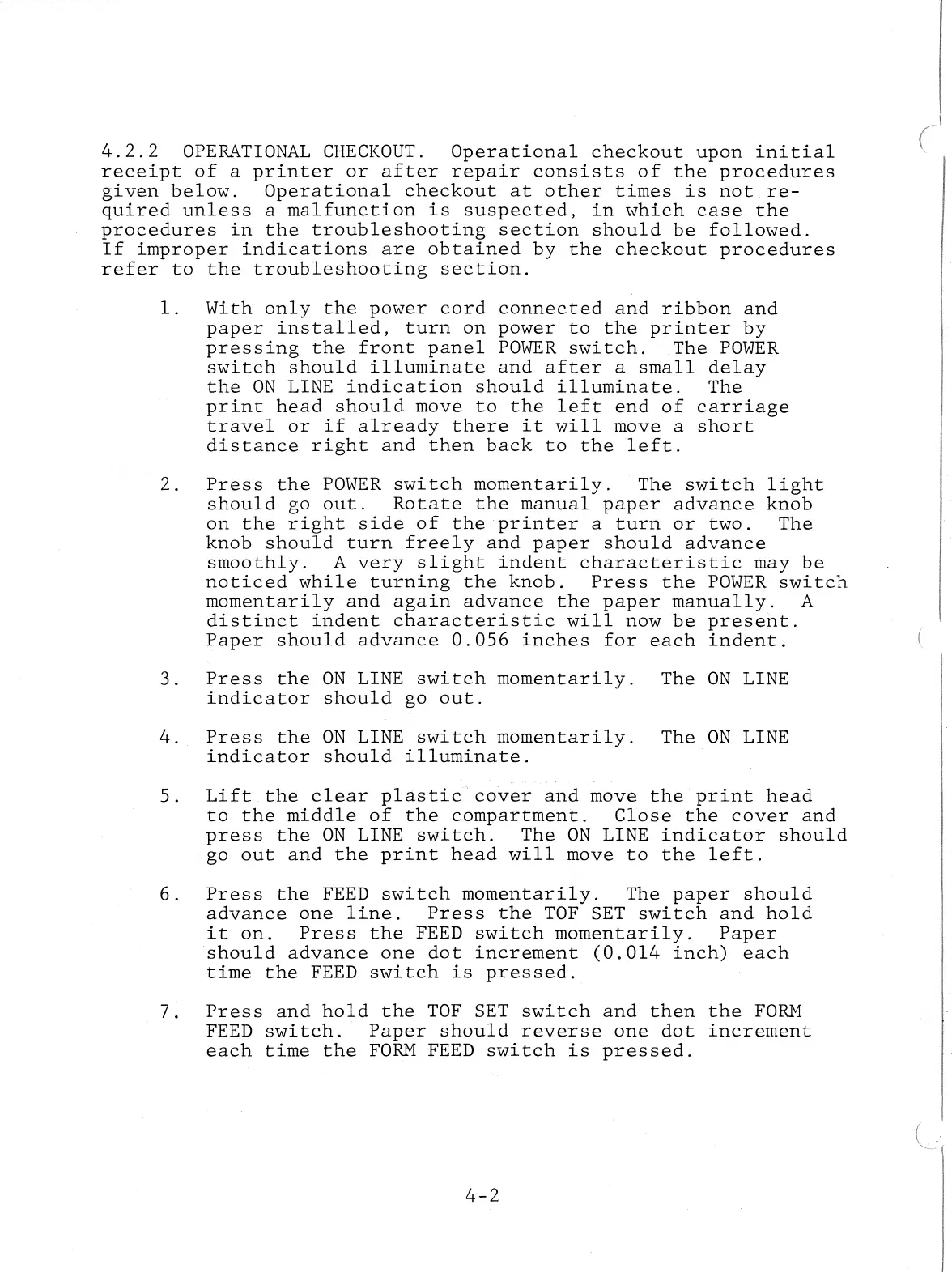

4.2.2

OPERATIONAL

CHECKOUT.

Operational

checkout

upon

initial

receipt

of

a

printer

or

after

repair

consists

of

the

procedures

given

below.

Operational

checkout

at

other

times

is

not

re-

quired

unless

a

malfunction

is

suspected,

in

which

case

the

procedures

in

the

troubleshooting

section

should

be

followed.

If

improper

indications

are

obtained

by

the

checkout

procedures

refer

to

the

troubleshooting

section.

1.

With

only

the

power

cord

connected

and

ribbon

and

paper

installed,

turn

on

power

to

the

printer

by

pressing

the

front

panel

POWER

switch.

The

POWER

switch

should

illuminate

and

after

a

small

delay

the

ON

LINE

indication

should

illuminate.

The

print

head

should

move

to

the

left

end

of

carriage

travel

or

if

already

there

it

will

move

a

short

distance

right

and

then

back

to

the

left.

2.

Press

the

POWER

switch

momentarily.

The

switch

light

should

go

out.

Rotate

the

manual

paper

advance

knob

on

the

right

side

of

the

printer

a

turn

or

two.

The

knob

should

turn

freely

and

paper

should

advance

smoothly.

A

very

slight

indent

characteristic

may

be

noticed

while

turning

the

knob.

Press

the

POWER

switch

momentarily

and

again

advance

the

paper

manually.

A

distinct

indent

characteristic

will

now

be

present.

Paper

should

advance

0.056

inches

for

each

indent.

3.

Press

the

ON

LINE

switch

momentarily.

The

ON

LINE

indicator

should

go

out.

4.

Press

the

ON

LINE

switch

momentarily.

The

ON

LINE

indicator

should

illuminate.

5.

Lift

the

clear

plastic

cover

and

move

the

print

head

to

the

middle

of

the

compartment.

Close

the

cover

and

press

the

ON

LINE

switch.

The

ON

LINE

indicator

should

go

out

and

the

print

head

will

move

to

the

left.

6.

Press

the

FEED

switch

momentarily.

The

paper

should

advance

one

line.

Press

the

TOF

SET

switch

and

hold

it

on.

Press

the

FEED

switch

momentarily.

Paper

should

advance

one

dot

increment

(0.014

inch)

each

time

the

FEED

switch

is

pressed.

7.

Press

and

hold

the

TOF

SET

switch

and

then

the

FORM

FEED

switch.

Paper

should

reverse

one

dot

increment

each

time

the

FORM

FEED

switch

is

pressed.

4-2
