. SELF TEST
- A
manual paper adjustment knob is pro-
vided on the right side of the printer
for manual paper position. The knob
moves the paper in 0.056 inch increments
bidirectionally. (See CAUTION above.)
- Depressing this switch when the printer
is in ON LINE status and if the TOF
switch has been depressed and held, the
SELF TEST program is initiated.
3.2.2 INTERNAL CONTROLS WITH EXTERNAL ACCESS: Four switch
blocks, Sl, S2, S3, and S4 are located internally on the
printed circuit card, and are accessible to the user/operator
through an access slot at the rear of the printer. (See
figure 3-2.) See tables 3-1 through 3-3 for switch function
assignments.
in off position as viewed from the rear of printer
May be a toggle switch
or a slide switch
Interface
Selection
5-·3
8-2
Format &
Protocol Control
8-1

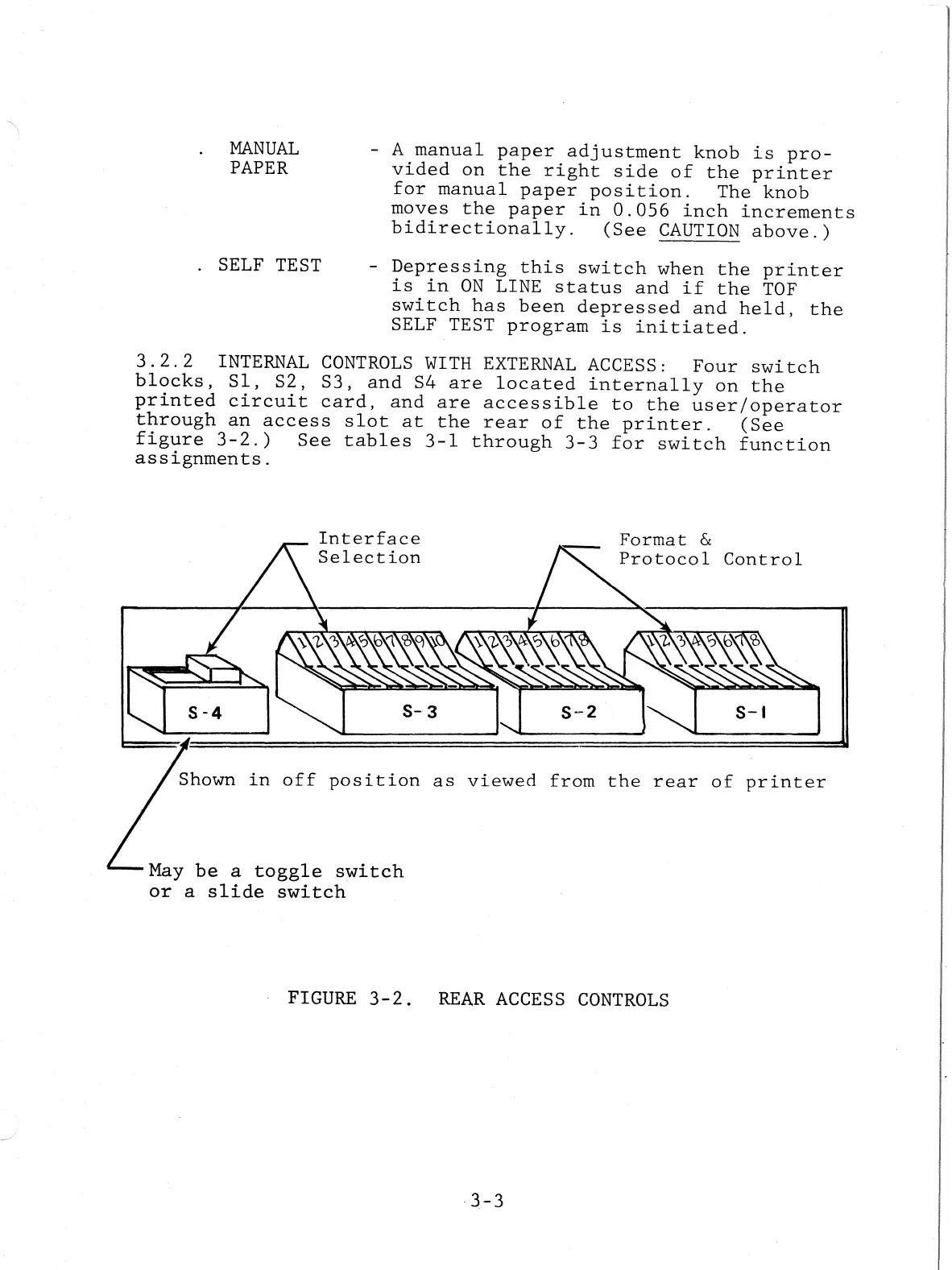

FIGURE 3-2. REAR ACCESS CONTROLS
·3-3
