Anadex DP-9000 - Paper Feed Path

To load the paper:
1. Lift the printing compartment cover.
2. Raise both tractor paper hold-down gates.
3. Move the head gap adjustment lever all the way toward
the front of the printer (maximum open position).
4. Insert the paper through the bottom or rear paper entry
slots (see Figure 2-3). Push the paper through until
the paper clears the print head and ribbon cartridge
assembly.
HEAD GAP
ADJUSTMENT
PAPER OUT
MICRO SWITCH

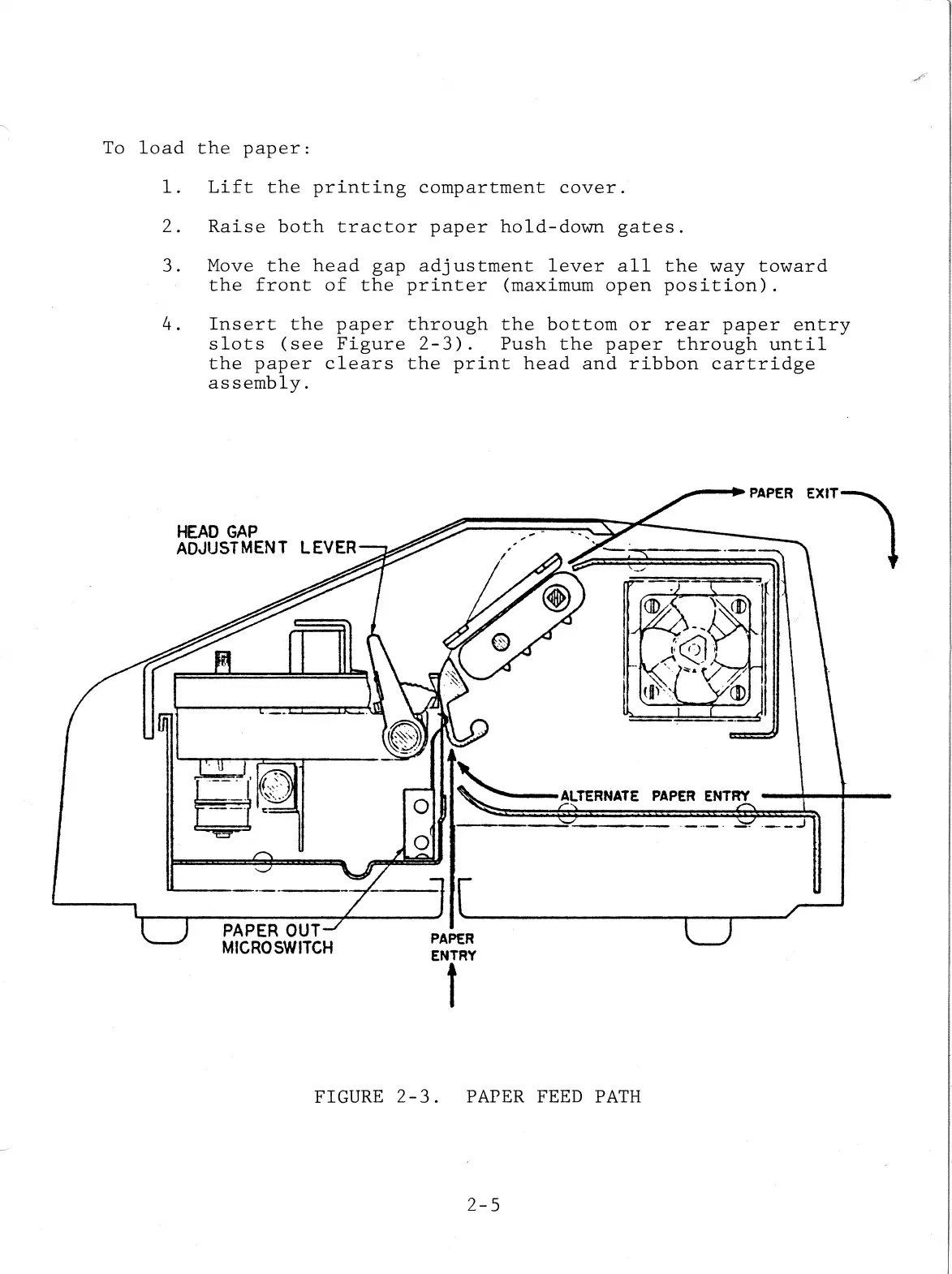

FIGURE 2-3. PAPER FEED PATH
2-5
~-~ PAPER EXIT
