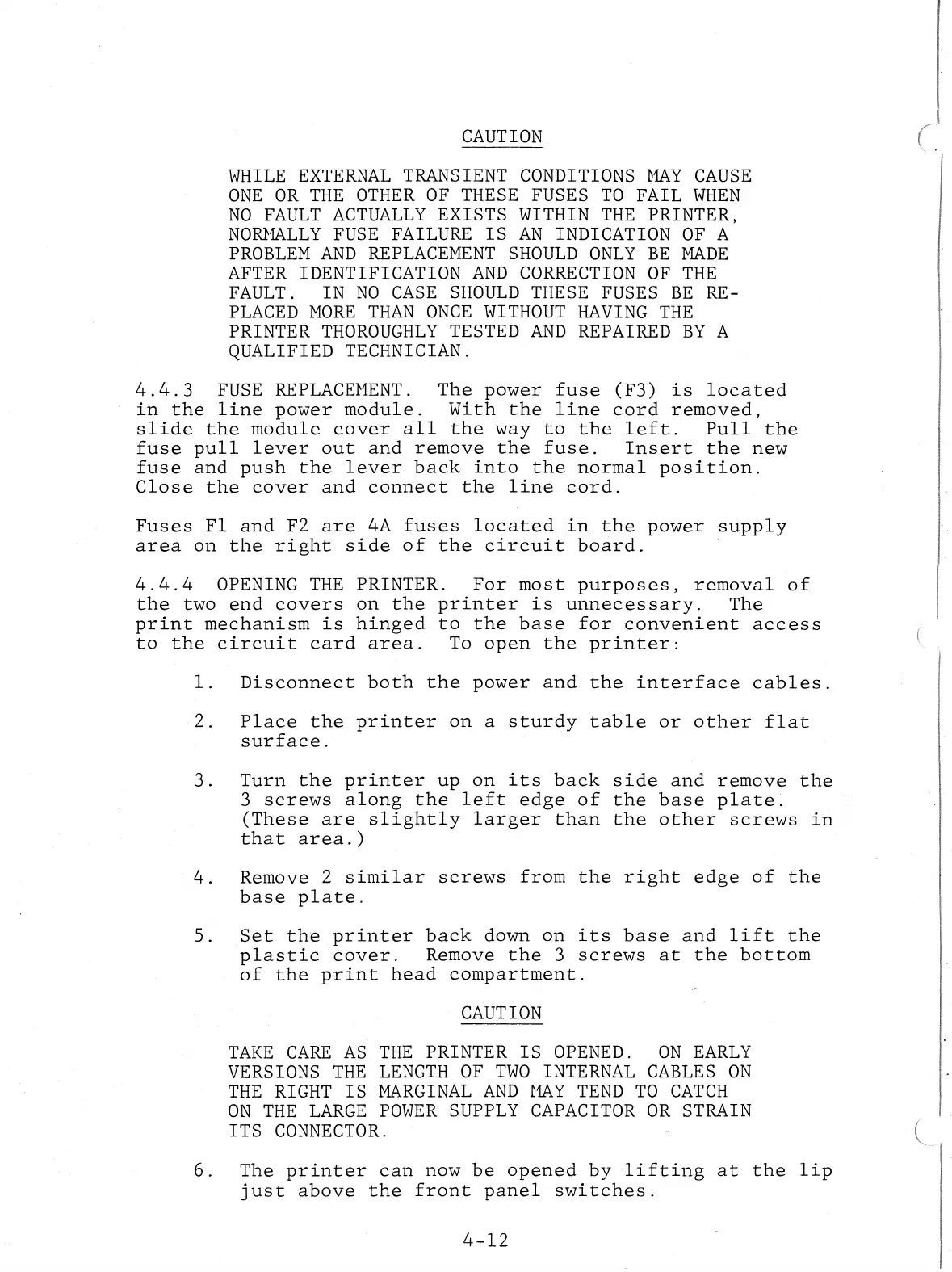

CAUTION

",mILE

EXI

I

ERNAL

TRANSIENT

CONDITIONS

~1AY

CAUSE

ONE

OR

THE

OTHER

OF

THESE

FUSES

TO

FAIL

WHEN

NO

FAULT

ACTUALLY

EXISTS

WITHIN

THE

PRINTER,

NOID1ALLY

FUSE

FAILURE

IS

AN

INDICATION

OF

A

PROBLEM

AND

REPLACEMENT

SHOULD

ONLY

BE

}1ADE

AFTER

IDENTIFICATION

AND

CORRECTION

OF

THE

FAULT.

IN

NO

CASE

SHOULD

THESE

FUSES

BE

RE-

PLACED

MORE

THAN

ONCE

WITHOUT

HAVING

THE

PRINTER

THOROUGHLY

TESTED

AND

REPAIRED

BY

A

QUALIFIED

TECHNICIAN.

4.4.3

FUSE

REPLACE~1ENT.

The

power

fuse

(F3)

is

located

in

the

line

power

module.

With

the

line

cord

removed,

slide

the

module

cover

all

the

way

to

the

left.

Pull

the

fuse

pull

lever

out

and

remove

the

fuse.

Insert

the

new

fuse

and

push

the

lever

back

into

the

normal

position.

Close

the

cover

and

connect

the

line

cord.

Fuses

Fl

and

F2

are

4A

fuses

located

in

the

power

supply

area

on

the

right

side

of

the

circuit

board.

4.4.4

OPENING

THE

PRINTER.

For

most

purposes,

removal

of

the

two

end

covers

on

the

printer

is

unnecessary.

The

print

mechanism

is

hinged

to

the

base

for

convenient

access

to

the

circuit

card

area.

To

open

the

printer:

1.

Disconnect

both

the

power

and

the

interface

cables.

2.

Place

the

printer

on

a

sturdy

table

or

other

flat

surface.

3.

Turn

the

printer

up

on

its

back

side

and

remove

the

3

screws

along

the

left

edge

of

the

base

plate.

(These

are

slightly

larger

than

the

other

screws

in

that

area.)

4.

Remove 2

similar

screws

from

the

right

edge

of

the

base

plate.

5.

Set

the

printer

back

down

on

its

base

and

lift

the

plastic

cover.

Remove

the

3

screws

at

the

bottom

of

the

print

head

compartment.

CAUTION

TAKE

CARE

AS

THE

PRINTER

IS

OPENED.

ON

EARLY

VERSIONS

THE

LENGTH

OF

TWO

INTERNAL

CABLES

ON

THE

RIGHT

IS

MARGINAL

AND

t1AY

TEND

TO

CATCH

ON

THE

LARGE

POWER

SUPPLY

CAPACITOR

OR

STRAIN

ITS

CONNECTOR.

6.

The

printer

can

now

be

opened

by

lifting

at

the

lip

just

above

the

front

panel

switches.

4-12
