J3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
DSTR
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DB8
ACK
IBZ (Alt. BUSY)
PE
SELECT
SIG GND
NC
SIG GND
CRAS SIS GND~"
+ 5 Vdc BIAS
J3
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
SIG
GND
SIG GND
SIG GND
SIG GND
SIG GND
SIG GND
SIG GND
SIG GND
SIG GND
SIG GND
SIG GND
SIG GND
INPUT PRIME
FAULT
EMPTY
NC
NC
IBZ
* See comments under signal levels.
Mating Connector - ANADEX PN 2101-5001-01
AMPRENOL PN 57-30360 or equiv.

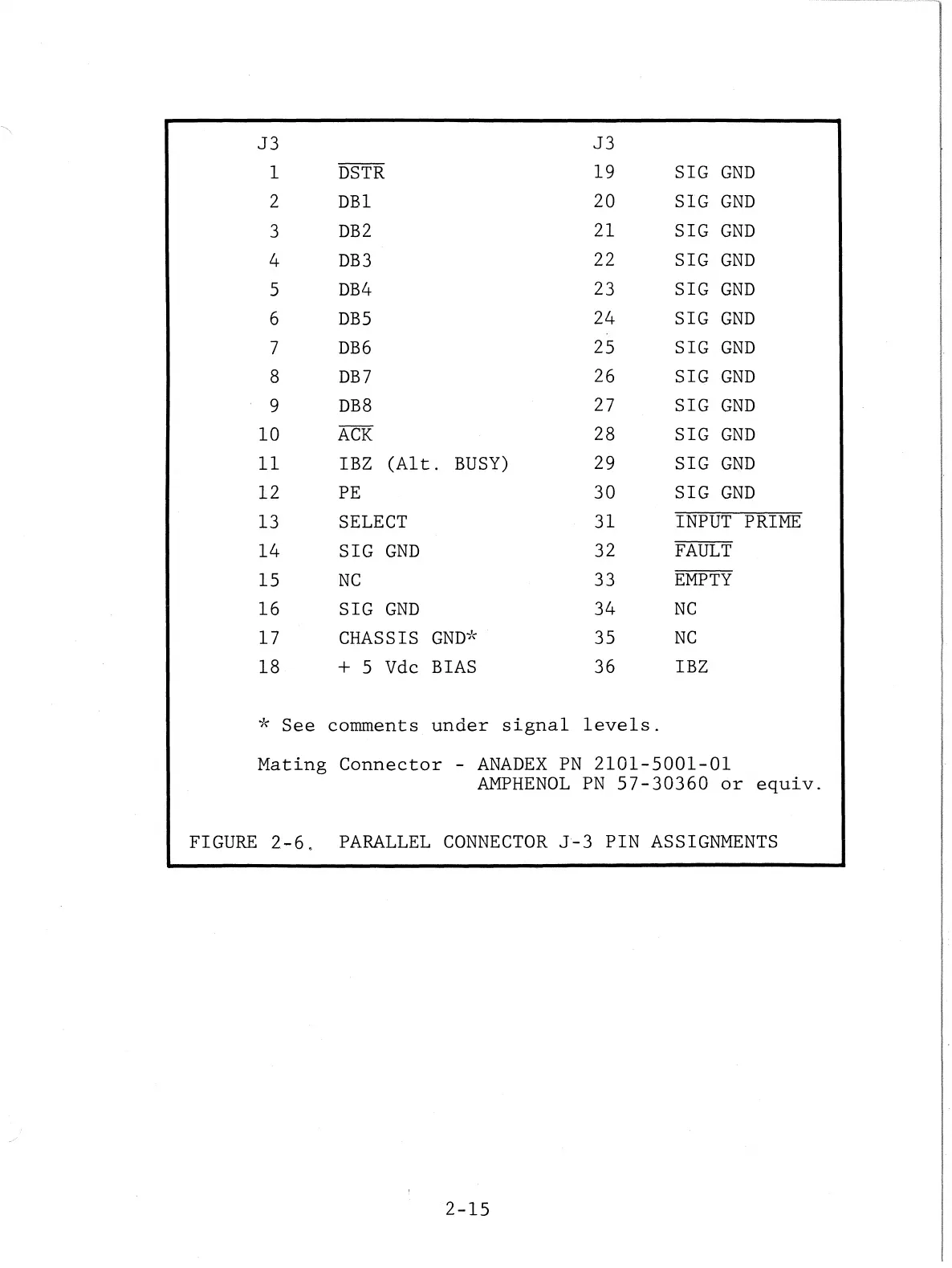

FIGURE 2-6 ~ PARALLEL CONNECTOR J"-3 PIN ASSIGNMENTS
2-15
