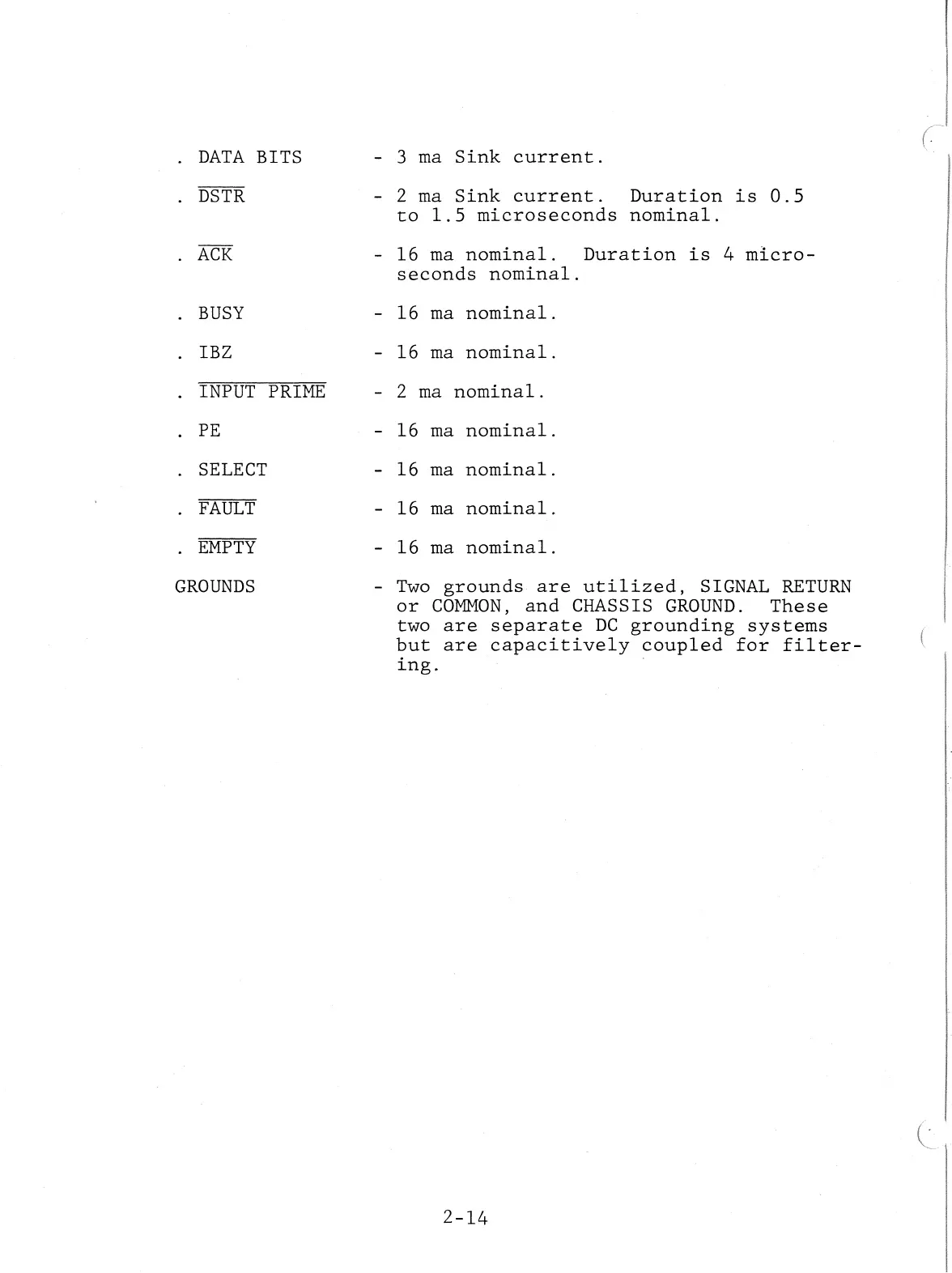

Anadex DP-9000 User Manual

DATA BITS
DSTR
BUSY
IBZ
INPUT PRIME
PE
SELECT
FAULT
EMPTY
GROUNDS
- 3 rna Sink current.
2 rna Sink current. Duration is 0.5
to 1.5 microseconds nominal.
16 rna nominal. Duration is 4 micro-
seconds nominal.
- 16 rna nominal.
- 16 rna nominal.
- 2 rna nominal.
- 16 rna nominal.
- 16 rna nominal.
- 16 rna nominal"
- 16 rna nominal.
- Two grounds are utilized, SIGNAL RETURN
or COMMON, and CHASSIS GROUND. These
two are separate DC grounding systems
but are capacitively coupled for filter-
ing.
2-14
