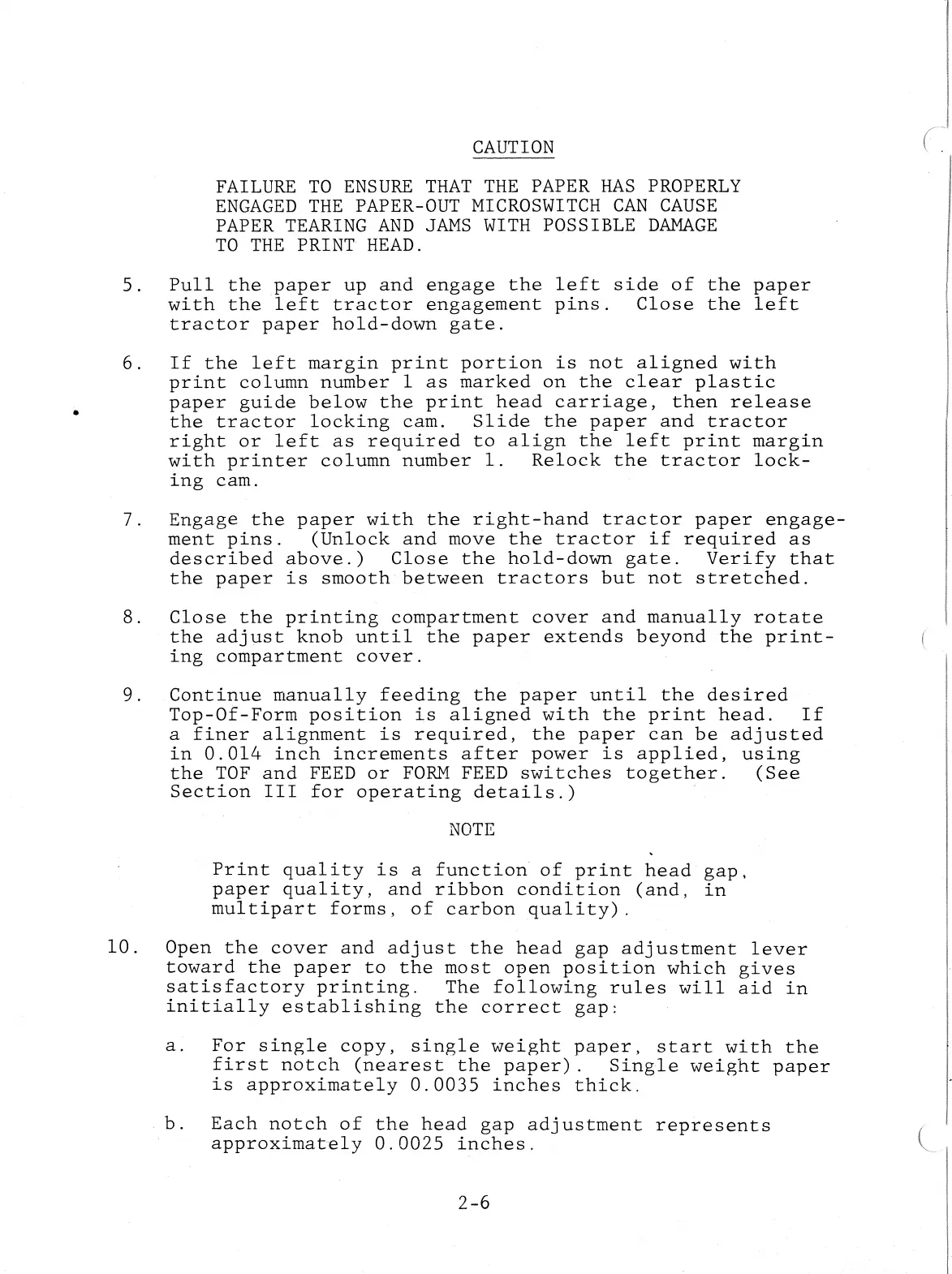

CAUTION
FAILURE TO ENSURE THAT THE PAPER HAS PROPERLY
ENGAGED THE PAPER-OUT MICROSWITCH CAN CAUSE
PAPER TEARING AND JAMS WITH POSSIBLE DAMAGE
TO THE PRINT HEAD.
5. Pull the paper up and engage the left side of the paper
with the left tractor engagement pins. Close the left
tractor paper hold-down gate.
6. If the left margin print portion is not aligned with
print column number 1 as marked on the clear plastic
paper guide below the print head carriage, then release
the tractor locking cam. Slide the paper and tractor
right or left as required to align the left print margin
with printer column number 1. Relock the tractor lock-
ing cam.
7. Engage the paper with the right-hand tractor paper engage-
ment pins. (Unlock and move the tractor if required as
described above.) Close the hold-down gate. Verify that
the paper is smooth between tractors but not stretched.
8. Close the printing compartment cover and manually rotate
the adjust knob until the paper extends beyond the print-
ing compartment cover.
9. Continue manually feeding the paper until the desired
Top-Of-Form position is aligned with the print head. If
a finer alignment is required, the paper can be adjusted
in 0.014 inch increments after power is applied, using
the TOF and FEED or FORM FEED switches together. (See
Section III for operating details.) .
NOTE
Print quality is a function- of print head gap,
paper quality, and ribbon condition (and, in
multipart forms, of carbon quality).
10. Open the cover and adjust the head gap adjustment lever
toward the paper to the most open position which gives
satisfactory printing. The following rules will aid in
initially establishing the correct gap:
a. For single copy, single weight paper, start with the
first notch (nearest the paper). Single weight paper
is approximately 0.0035 inches thick.
b. Each notch of the head gap adjustment represents
approximately 0.0025 inches.
2-6
