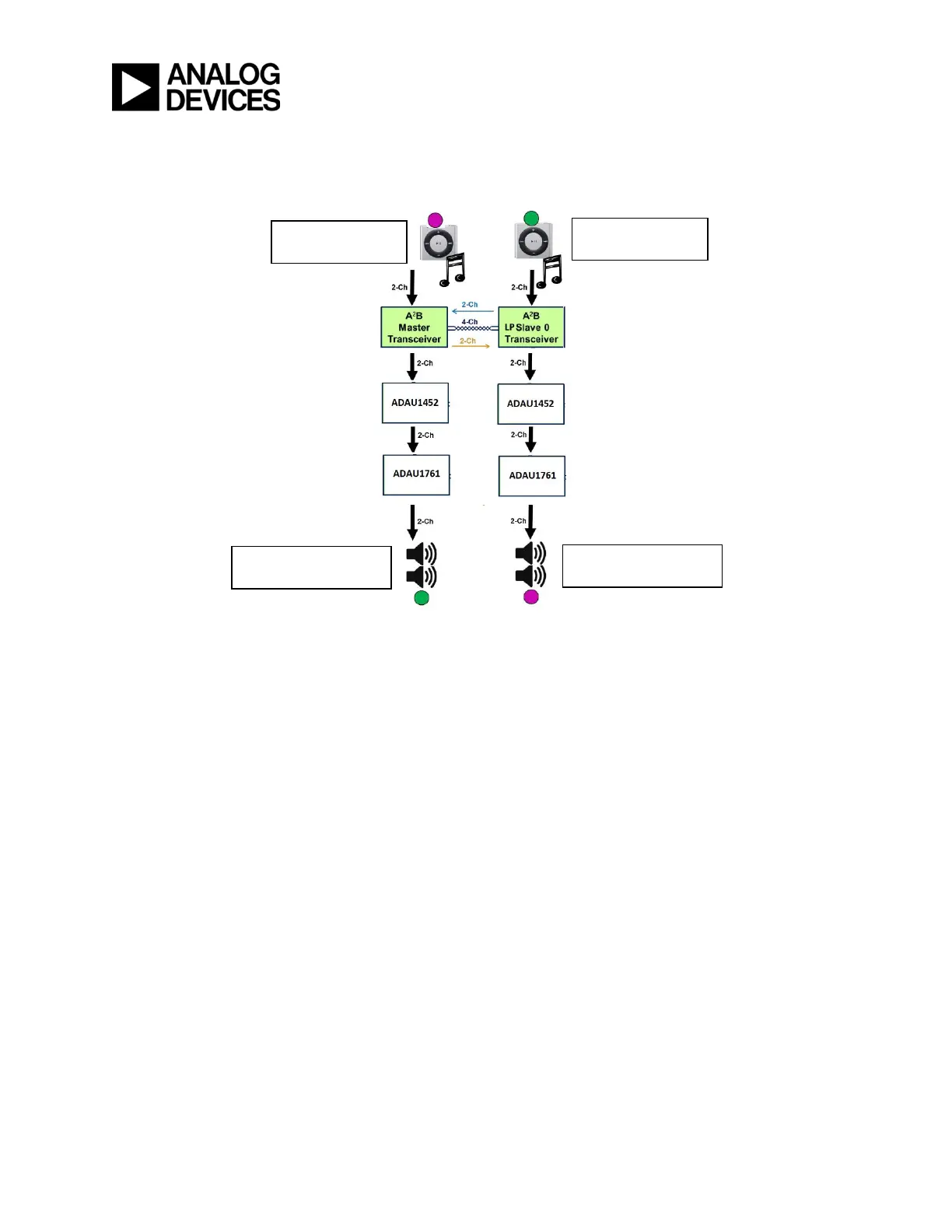

Audio Routing – Block Diagram
Instructions
A: Routing of analog signals.
1. Connect the A2B Master node to an LPS Slave node using a A2B UTP cable.
2. Make sure the jumpers are configured as per the tables above.
3. Open the A2B schematics ..\A2B_Project.dspproj.
4. For routing of the analog signals used the ‘..\xml\codec_to and fro’ Master and slave .xml files.
5. Link Compile Download the A2B schematics onto the target
6. Feed audio data by connecting the Aux cable to the Line-In connector J3 of the Master, verify the
audio on the slave node Line-Out J4 with the help of headphones.
7. Feed audio data by connecting the Aux cable to the Line-In connector J3 of the Slave node, verify
the audio on the Master node Line-Out J4 with the help of headphones.
Line-In/ SPDIF-In
Line-In/ SPDIF-In
Line-Out/ SPDIF-Out
Line-Out/ SPDIF-Out
