MAX30001 Evaluation System Evaluates: MAX30001
MAX30002
BioZ MUX Tab
The BioZ MUX tab (Figure 9) congures the internal BioZ switches that precede the BioZ signal path. Internal calibration
and verication functions of the IC are also accessible from this tab. In order to use the BioZ channel, the BIP Switch
and BIN Switch in the Switches block must be set to Connected. The switches should be set to Isolated if using
the internal self-test features. As part of the BioZ self-test, a resistive load is available on the DRVP and DRVN pins.
Clicking on Selectable Resistive Load will bring the GUI to the BioZ Load tab. Refer to the full MAX30001 data sheet
for detailed descriptions of the BioZ MUX congurations.

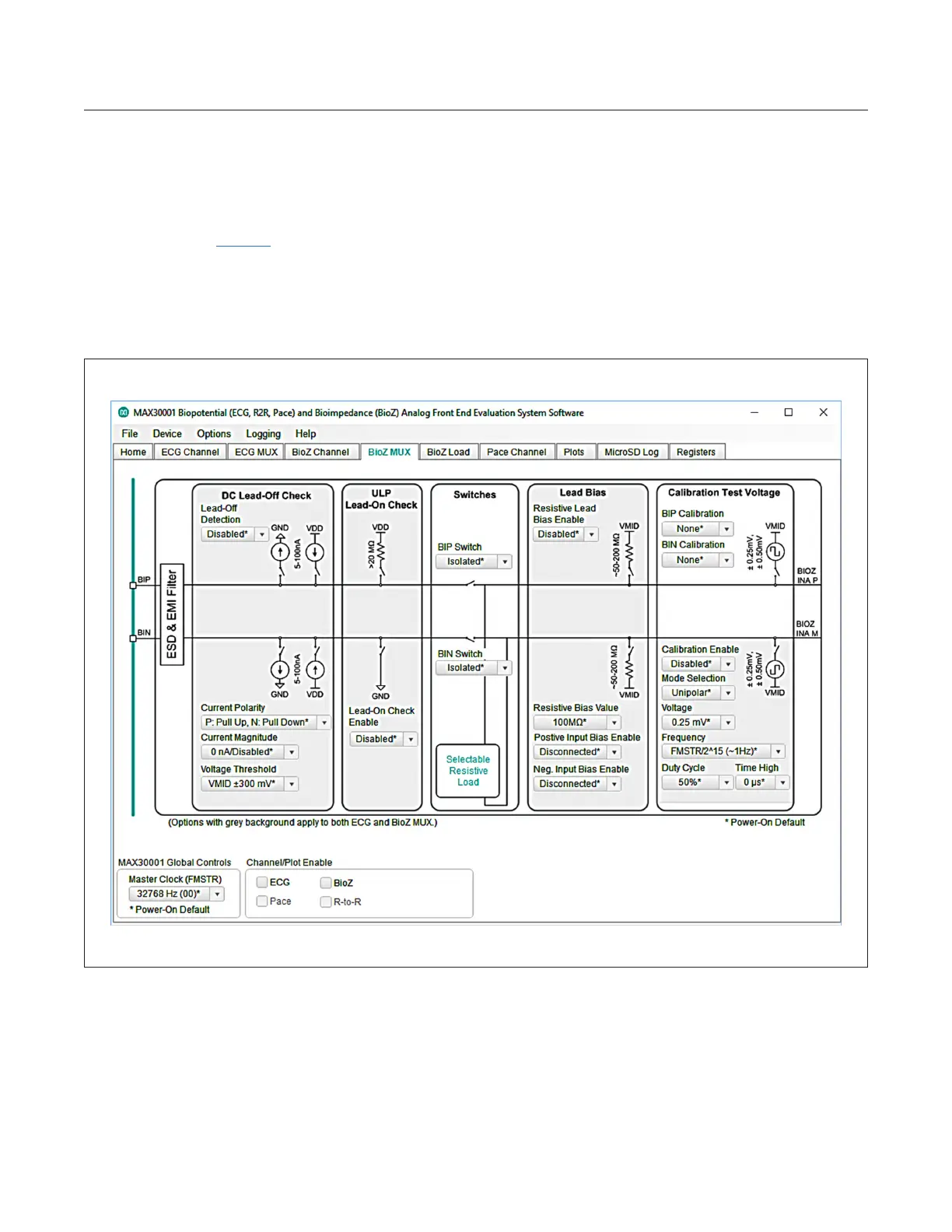

Figure 9. BioZ MUX Tab.
