BioZ Channel Tab
The BioZ Channel tab (Figure 8) hosts the settings that control the BioZ components following the BioZ Input MUX. As
in the ECG Channel tab, controls on this tab congure the lters and ampliers of the device’s BioZ channel.
A detailed description of all BioZ channel conguration settings can be found in the MAX30001 data sheet.

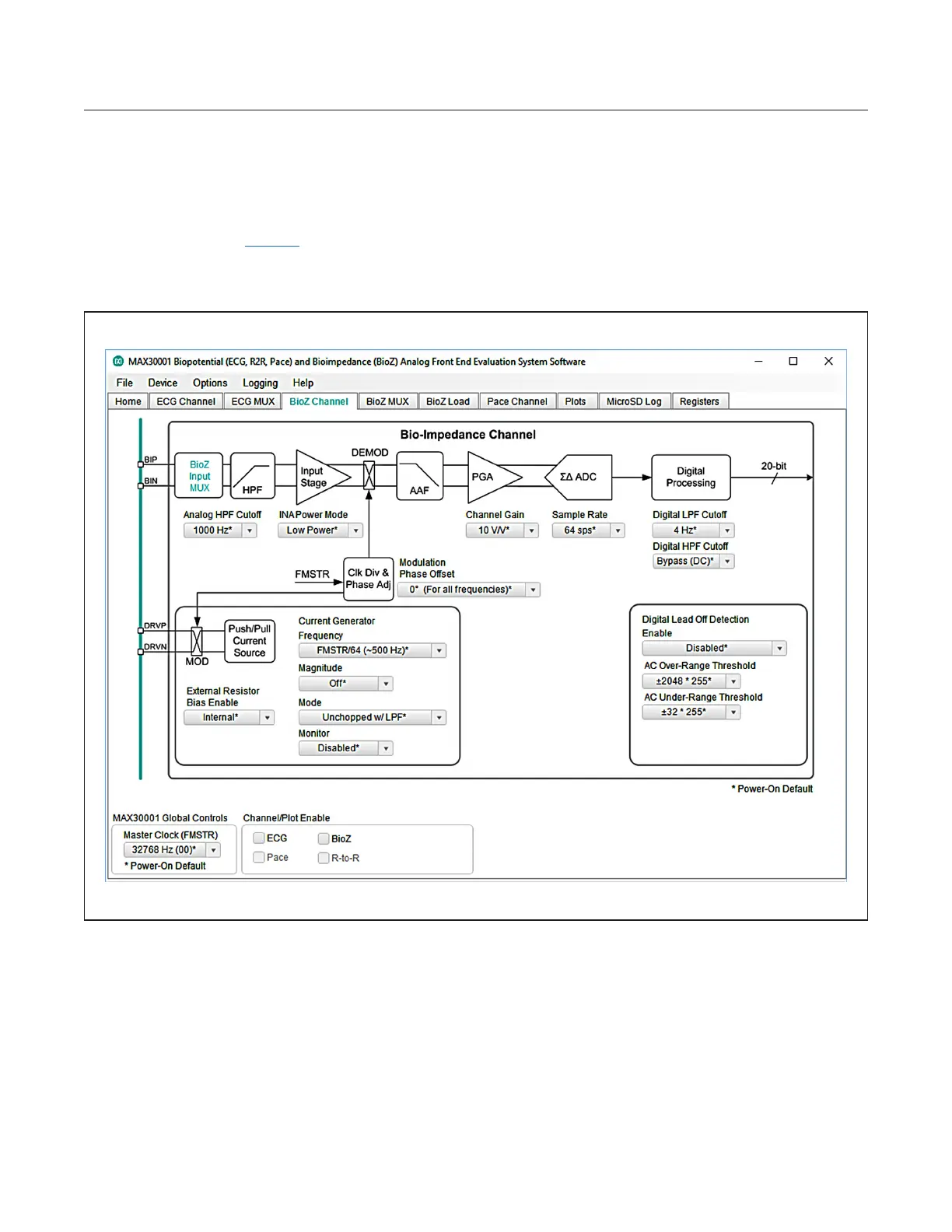

Figure 8. BioZ Channel Tab.
