BioZ Load
The BioZ Load tab (Figure 10) congures the resistive load used for the self-test of the BioZ channel. The nominal
resistance and modulation frequency are set by the Nominal Resistance and Frequency controls in the Modulated
Resistance Built-In-Self-Test (RMOD BIST) block. RMOD BIST Enable congures the BioZ channel to connect or
detach the resistive load.
Refer to the full IC data sheet for a description of the modulated resistive load.

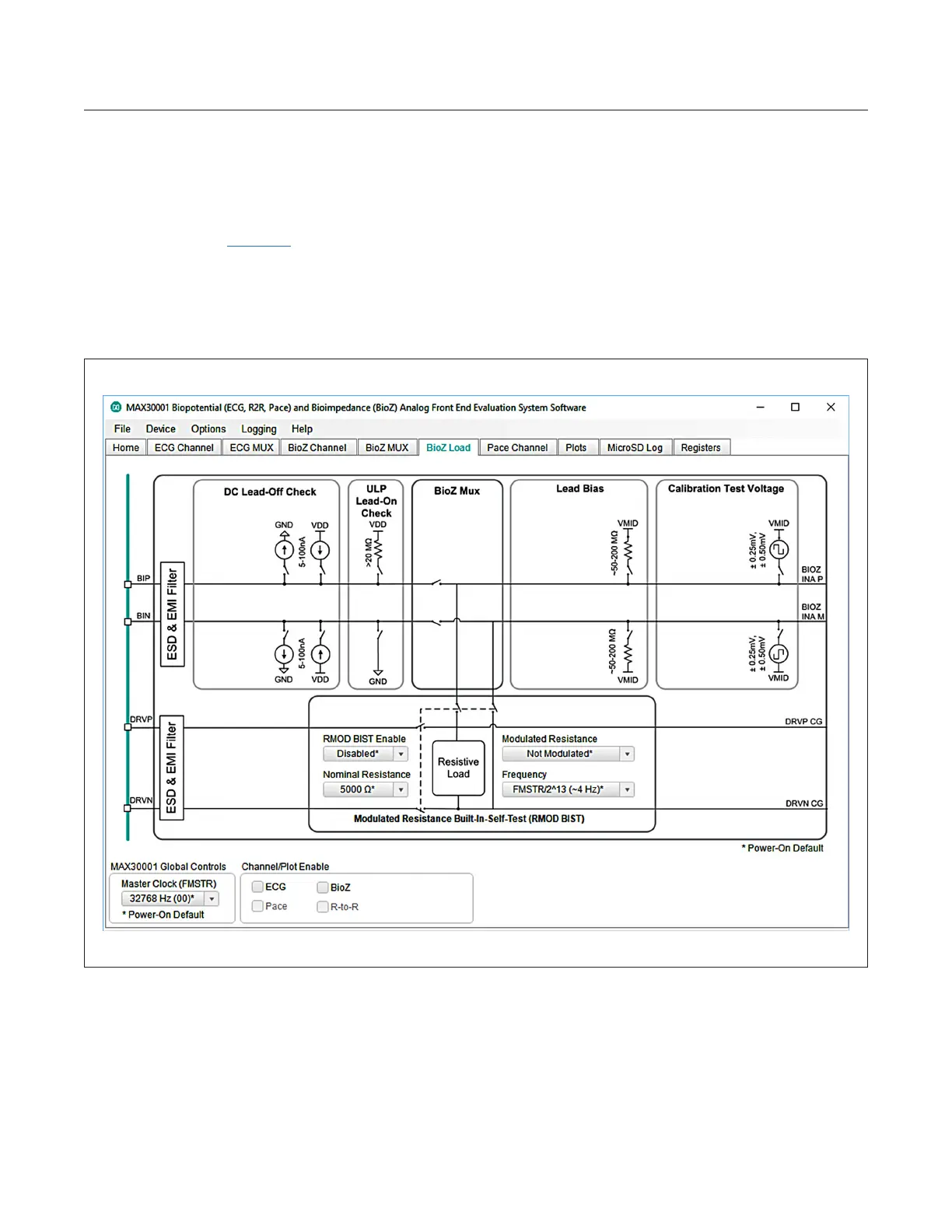

Figure 10. BioZ Load Tab.
