MAX30001 Evaluation System Evaluates: MAX30001
MAX30002
Pace Channel Tab
The Pace Channel tab (Figure 11) congures the input channel for pace detection. In addition to setting the channel gain
and detection thresholds, this tab can route signals at various points in the input path to AOUT using the Signal Selection
control. To enable pace detection, BIP Switch and BIN Switch in the BioZ MUX tab must be set to Connected. If using
the current generator to measure BioZ and pace simultaneously, the frequency must be 40kHz or 80kHz.

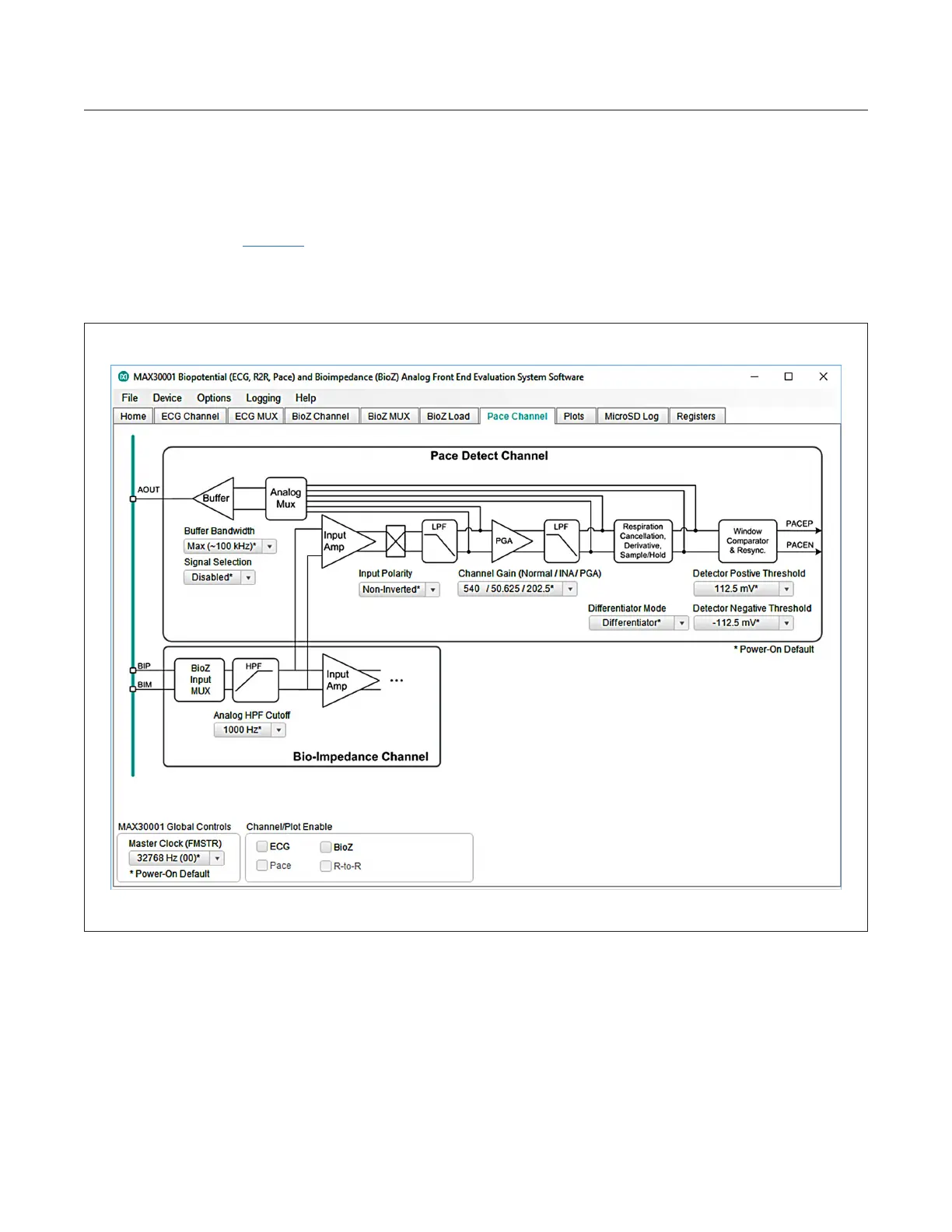

Figure 11. Pace Channel Tab.
