MAX30001 Evaluation System Evaluates: MAX30001
MAX30002
ECG Channel Tab
The ECG Channel tab (Figure 6) contains all settings which dictate the signal processing behavior of the ECG measurement
channel. Controls for the ECG input channel, such as Fast Recovery settings, gain for the programmable amplier, and
the ADC sampling rate, are found in the ECG Channel block diagram. The R-to-R box congures R-to-R detection using
the ECG input data.
A detailed description of all ECG channel conguration settings and R-to-R functionality can be found in the MAX30001
data sheet.

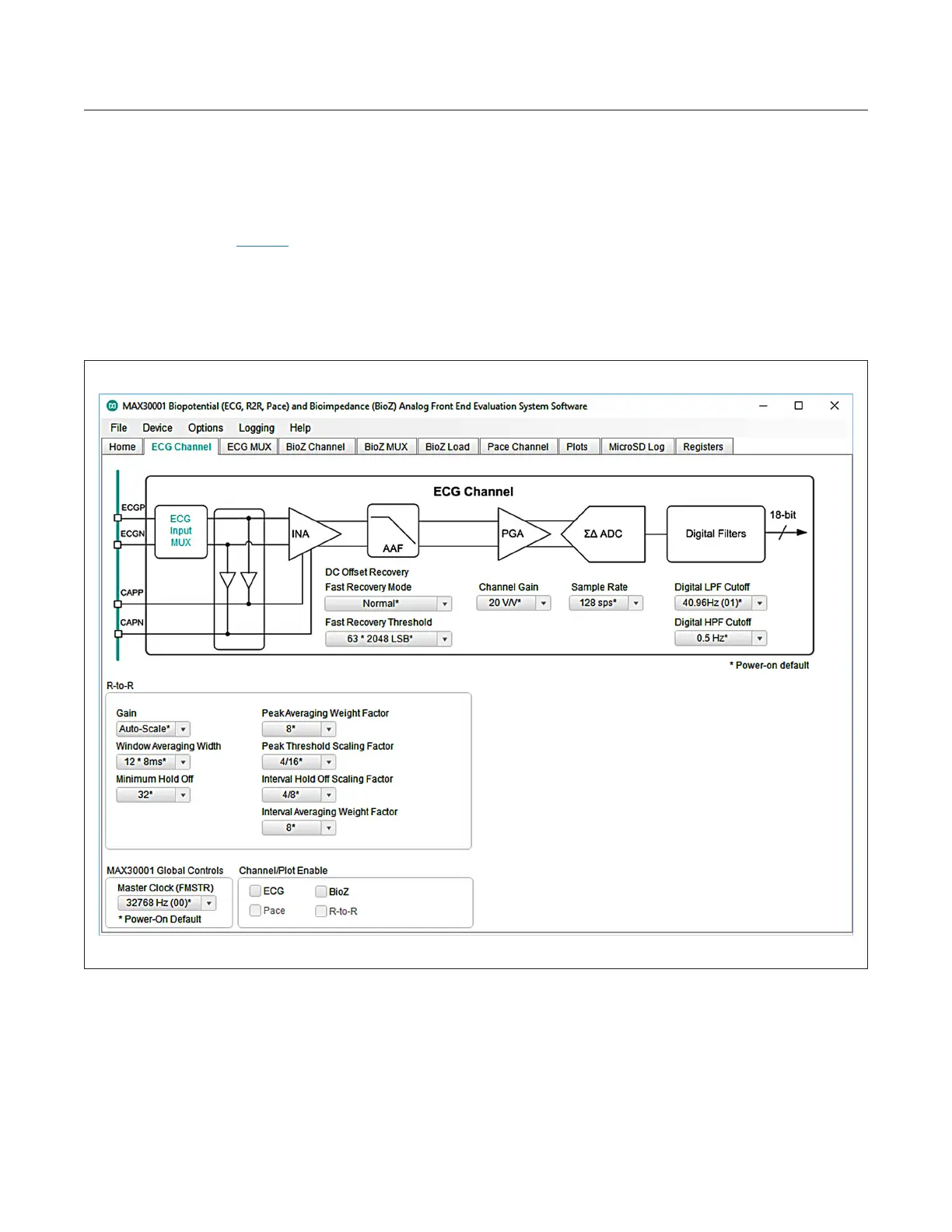

Figure 6. ECG Channel Tab.
