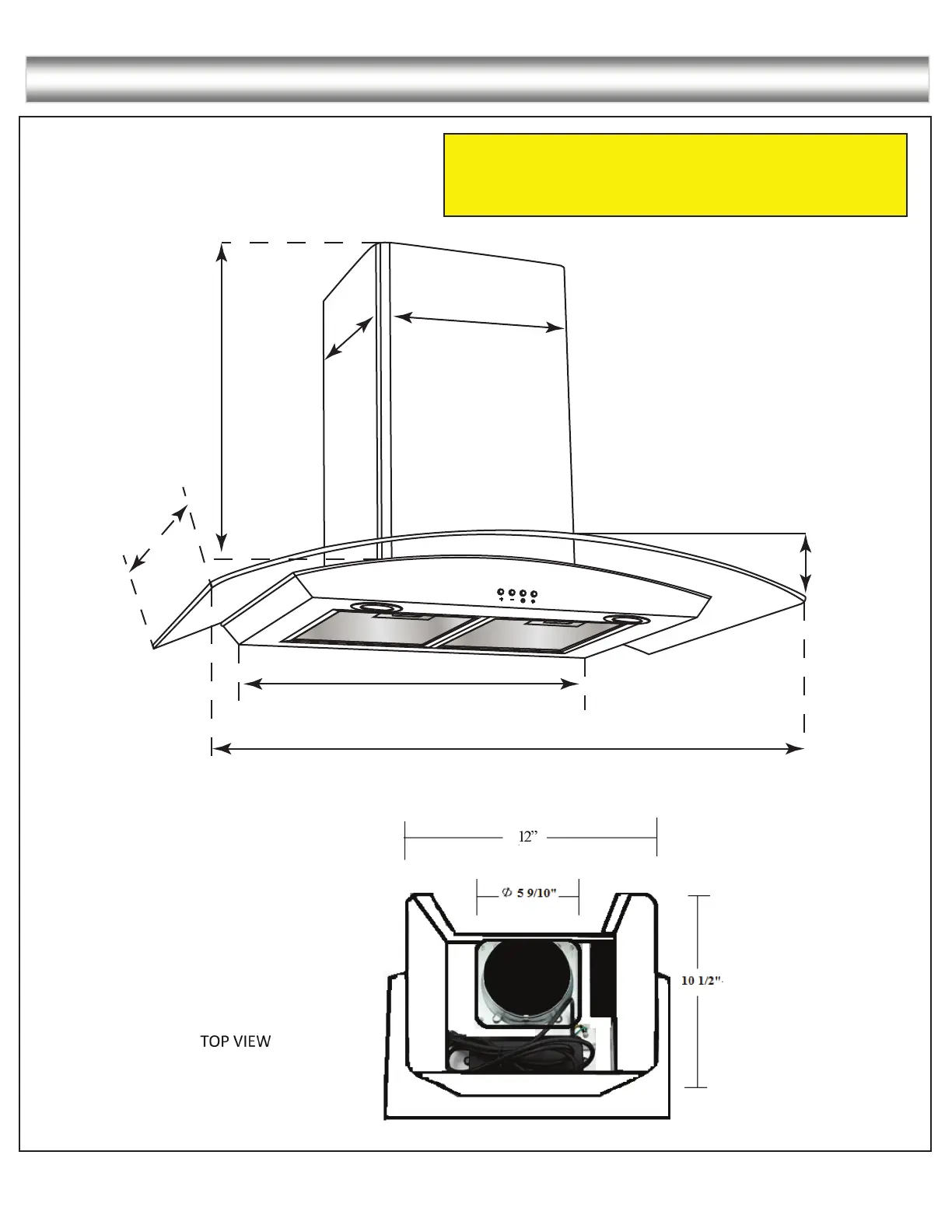

MEASUREMENTS AND DIAGRAMS:
This range hood can reach a 9’ ceiling if installed at
32” from the cooking surface.
22 3/8” (568 mm)
29 3/8” (747 mm)
19” to
38 1/4”
(480 mm
to 970 mm)
12”
(304 mm)
2.99”
(76 mm)
10 1/2”
(265 mm)
19 5/8”
(499 mm)
Glass Depth
16
