Ancona gc430 - Mounting Bracket Dimensions

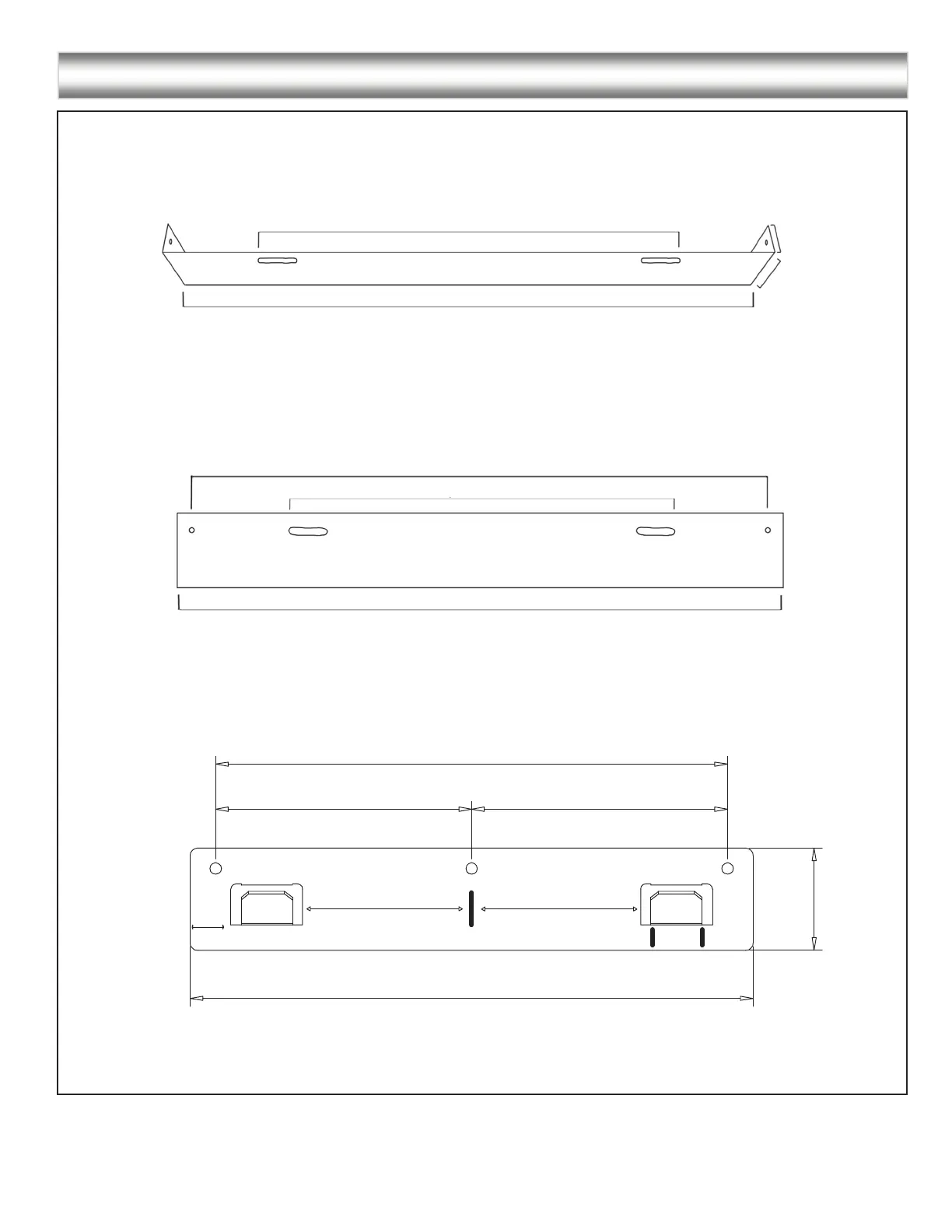

MOUNTING BRACKETS:
Upper/Inner Chimney Bracket
Lower/Outer Chimney Bracket
Hood Mounting Bracket Hook
9 1/16” (231 mm)
4 1/2” (115 mm)
4 1/2” (115 mm)
9 15/16” (253 mm)
1 5/8”
(40 mm)
3 1/8” (82 mm)
3 1/8” (82 mm)
5/8” (16 mm)
1 1/8”
(28 mm)
11 1/4” (286 mm)
11 7/8” (302 mm)
11 7/8” (302 mm)
8 1/4” (211 mm)
15
