Anderson Group Grain bagger GB-series – Operation Guide 19
1.3.2 Loading auger
The loading auger is used to transport the grains to the hopper. It is equipped with a plastic hopper
(A) into which the grains can spill. A flow control valve (B) enables the speed adjustment of the
screw. To know how to adjust the loading auger speed, see Adjusting the loading auger
speedsection 4.2
Thanks to its wheels (C) and its spring system (D), the auger can be displaced around the bagger. It
can also adapt to the bagger's movement during bagging. See section 3.6
During displacements, the auger must be placed in an elevated position on a connecting rod (E)
attached to the tunnel (see section 3.1 to know how to proceed).

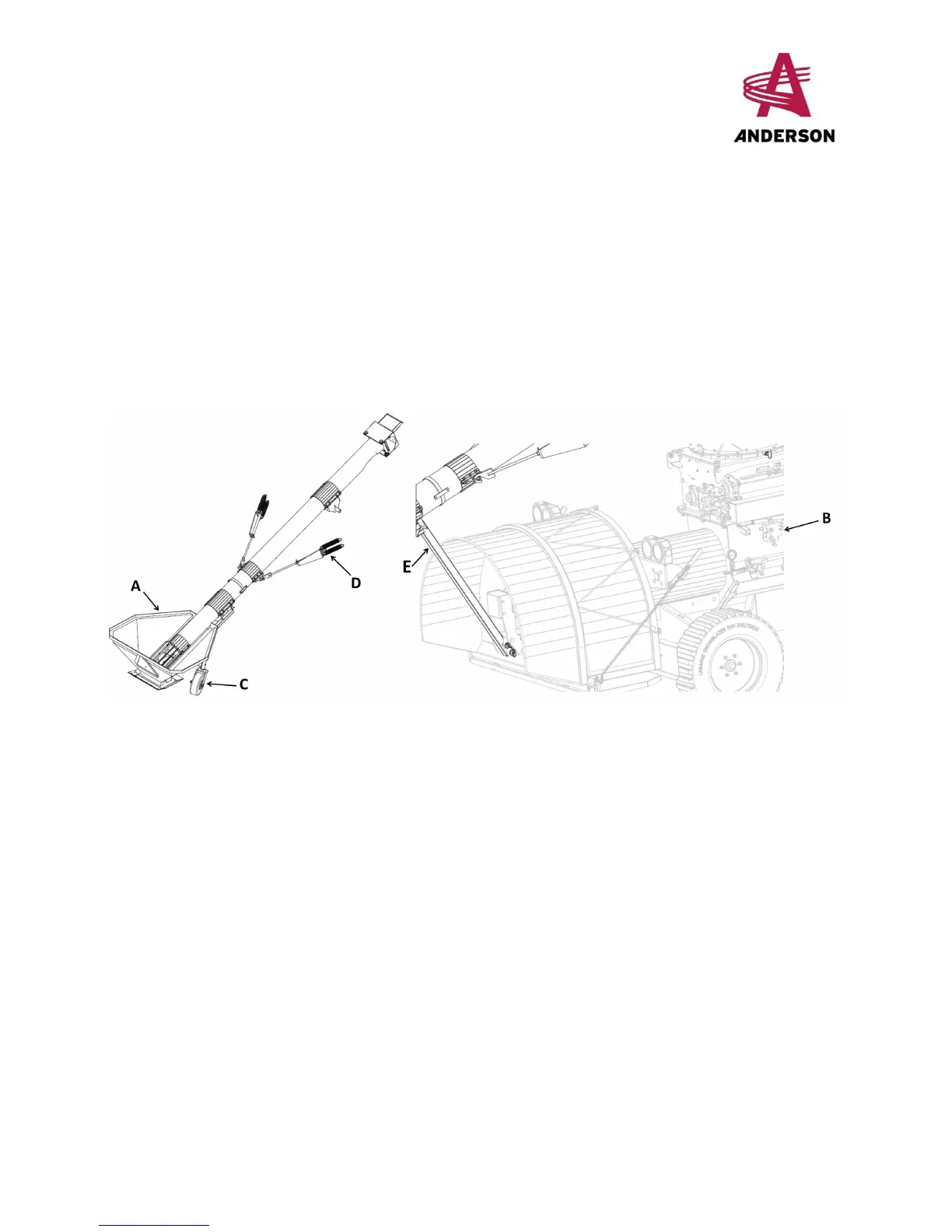

Figure 5 – Loading auger
