18 Operation Guide – Grain bagger GB-series Anderson Group
1.3 Presentation of components
1.3.1 Tongue and hitch
The tongue is used to harness the bagger to the tractor. It is equipped with a drive shaft (A) support
which allows the placing of the shaft in a safe position when it is not connected to the tractor. A hand
jack (B), located in front of the tongue, supports the front of the machine when the bagger is not
hitched. The height of the hitch (C) can be adjusted to put the tongue in horizontal position.

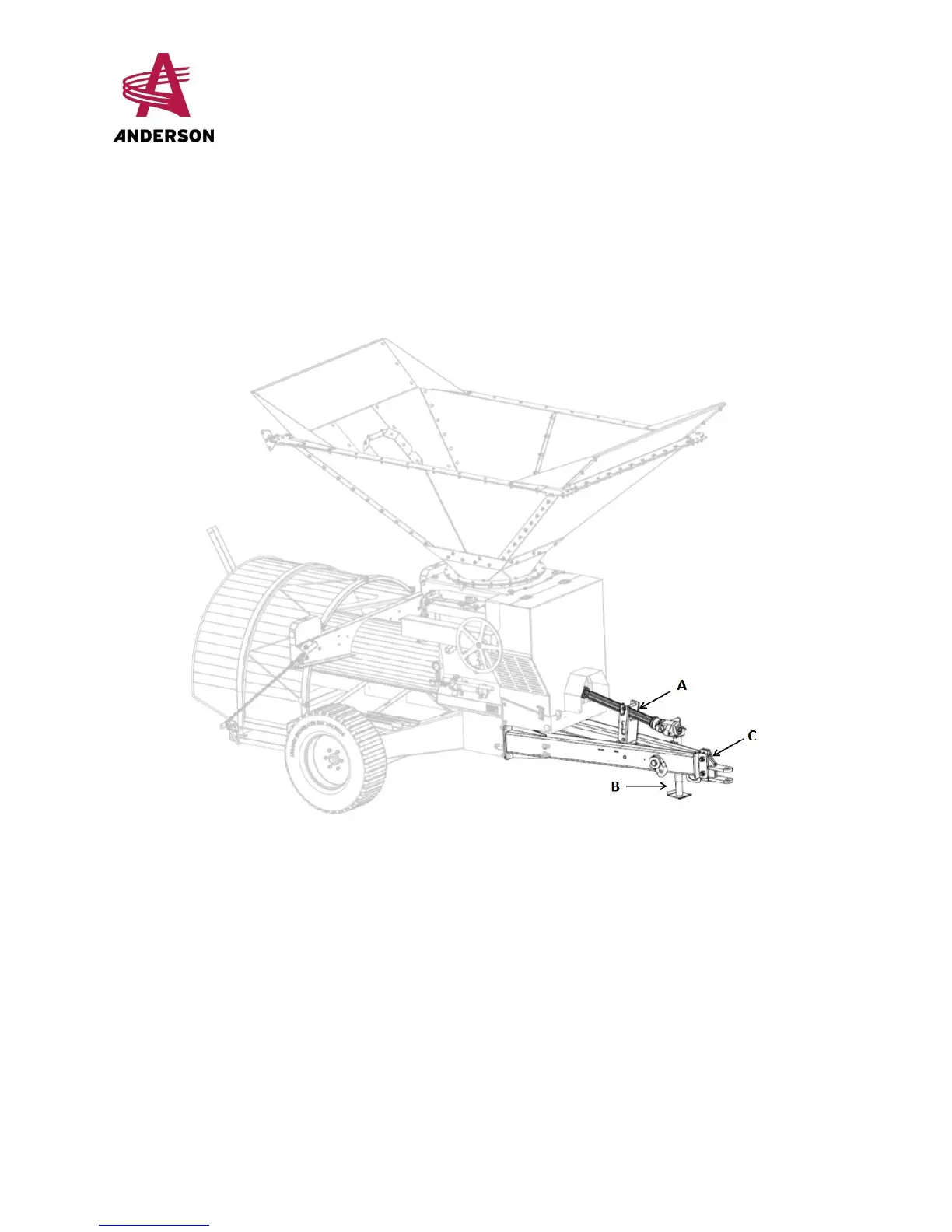

Figure 4 –Tongue
