How to choose lens
Lens L：
Working distance：90mm-300mm，Magnification：60-240x（with3 times digital
zoom, output to 28inch HDMI monitor)
Applications：circuit board observe, watch repair etc.
(Pic 5 Go with lens L）

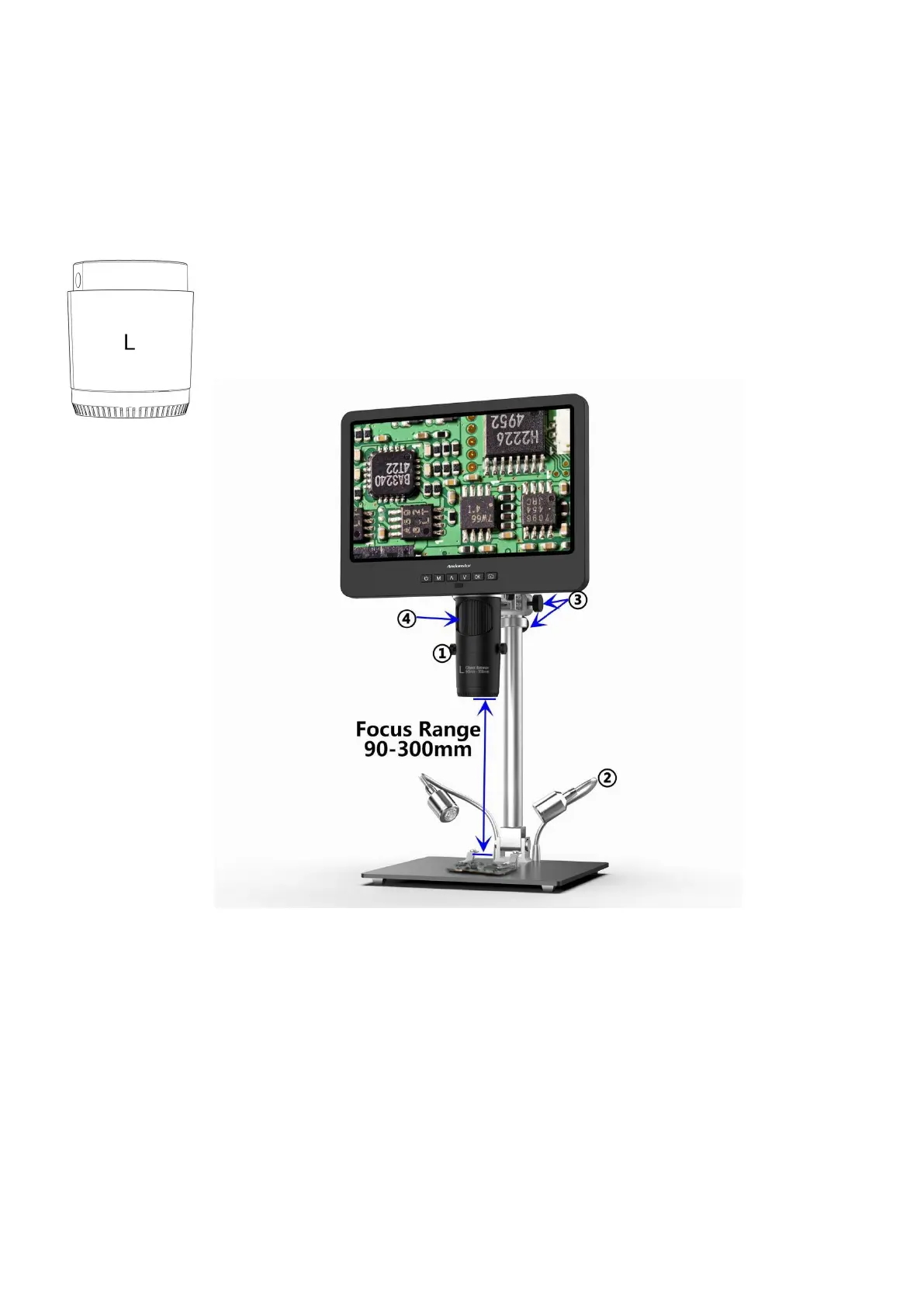

Steps：In pic 5 it marked out which parts of the microscope are involved to each step.
①Install and fix lens L to the bottom of the focusing tube.
②Bend the two goose-neck spot lights, make the field of view enough illuminated.
③Loose the Arm V-locker, locate the whole monitor part to a desire height (distance from the lens to
the specimen should be around 90mm to300mm), then fix the V-locker. In order to adjust object
distance more precisely, adjust the height of the secondary bracket. The shorter the object distance is,
the bigger magnification is.
④Turn the focusing tube to get a clear image. Turn it clockwise to zoom in and the other way to zoom
out.
