andrews MAXXflo - HWST Tank Dimensions and Wiring Diagram

MAXXo Water Heater
1919
INSTALLATION • SECTION 3

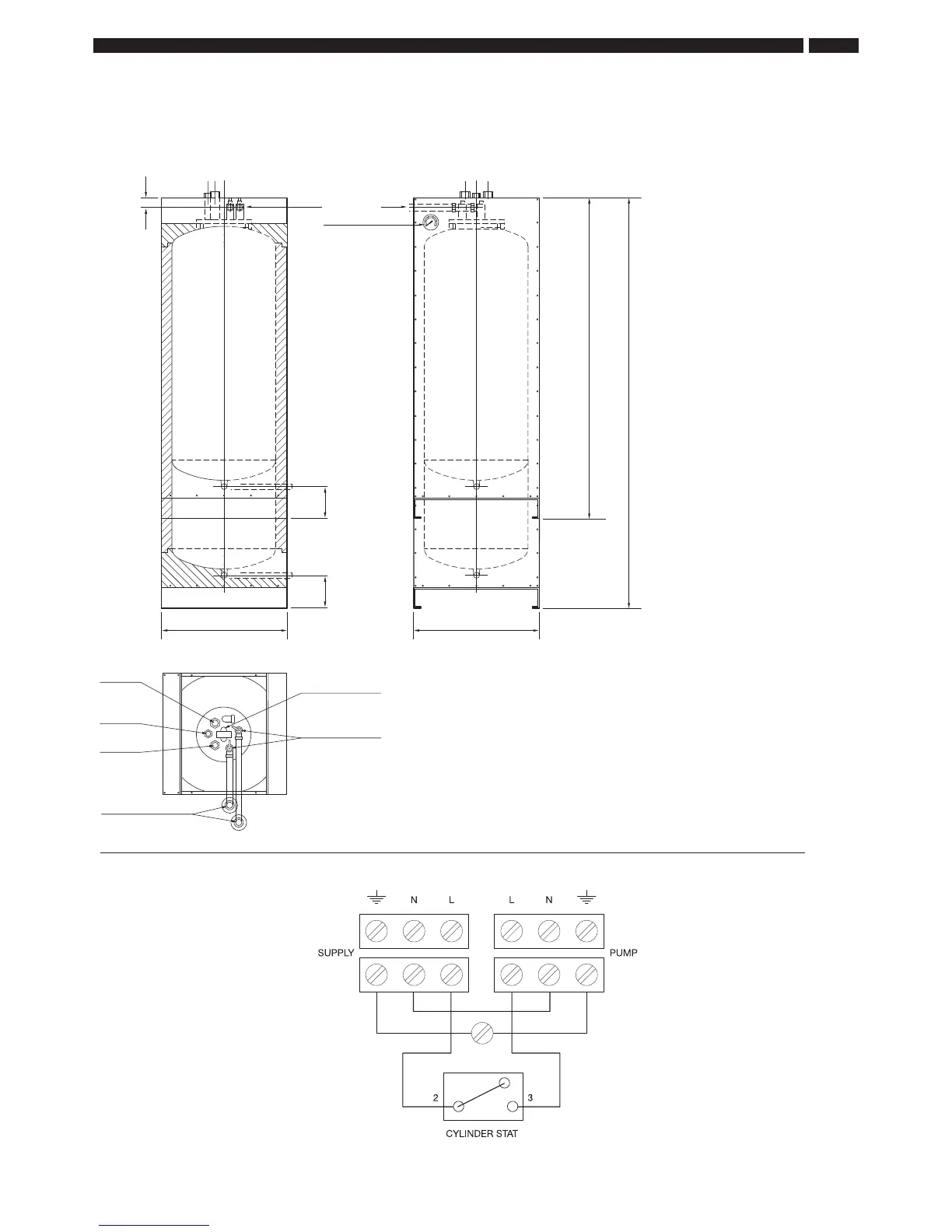

Fig 9 – HWST Tank Dimensions
Fig 10 – Wiring Diagram
1
1
/2" Hot
water
supply
1" Return
1
1
/2" Feed from
water heater
Tank inspection hatch
28 mm T&P outlets
1 or 2 Tundishes supplied
PLAN VIEW
47
T&P outlets
Thermostat
153
153
Drain access
28 mm valve
602 602
1528 (200 litre t ank)
1952 (300 litre t ank)
HWST 200 HWST 300 STORAGE TANKS
