Anet A2 - Bottom Aluminium Profile Installation

Name QTY Note
2040*150
Aluminium Profile
2
2040*400
Aluminium Profile
1
Header Corner 4
M5*12 Screw 8
M5 Pillar 8
M5 T Nut 8
2040*150
Aluminium Profile
Cambox
2040*400
Aluminium Profile

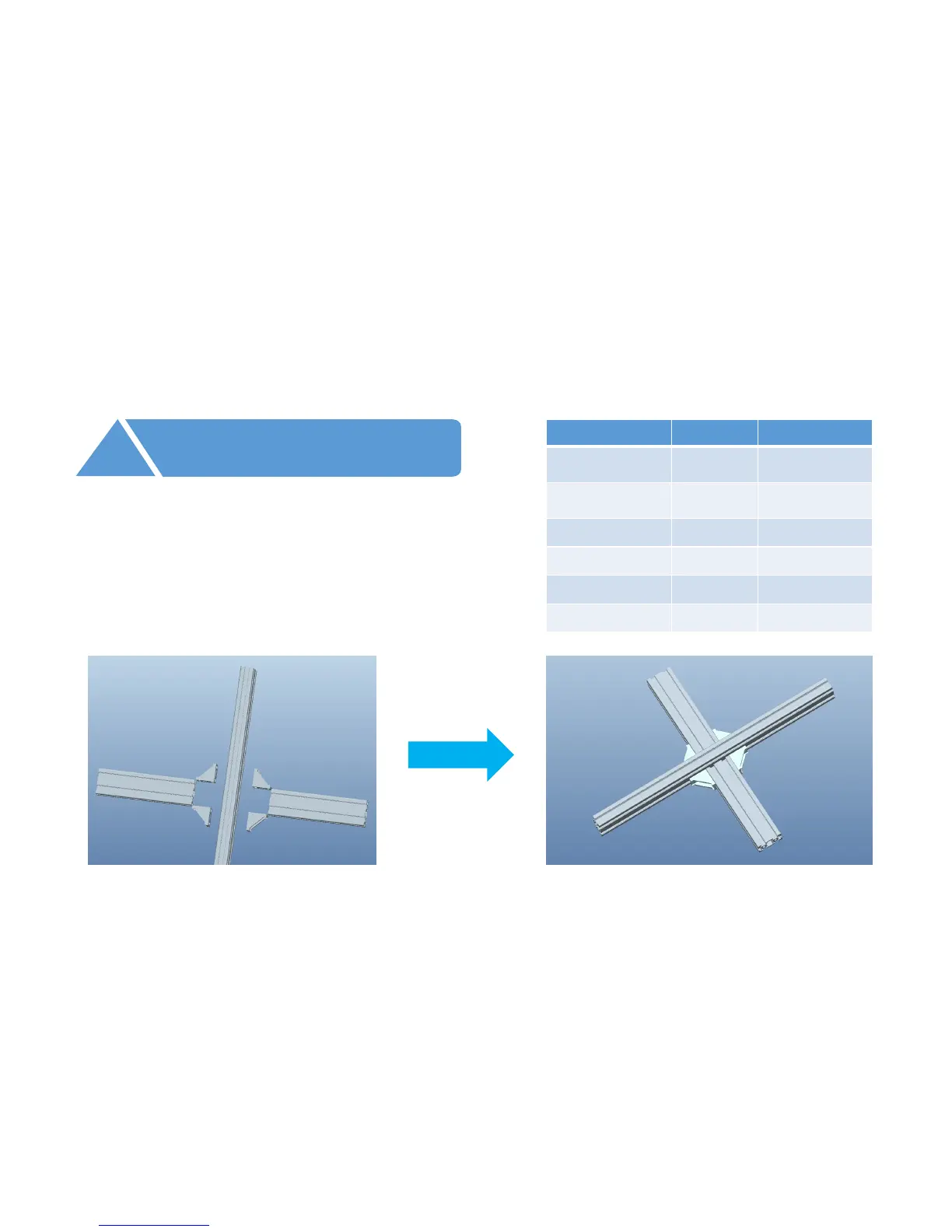

Attention:
Keep the Aluminium Profile at the same level during assembly . It’s
better to hold the Aluminium Profile when you lock the Cambox.
Installation of Bottom Aluminium Profile
01
