Anet A2 - X Belt Bearing Fixing Plate Assembly

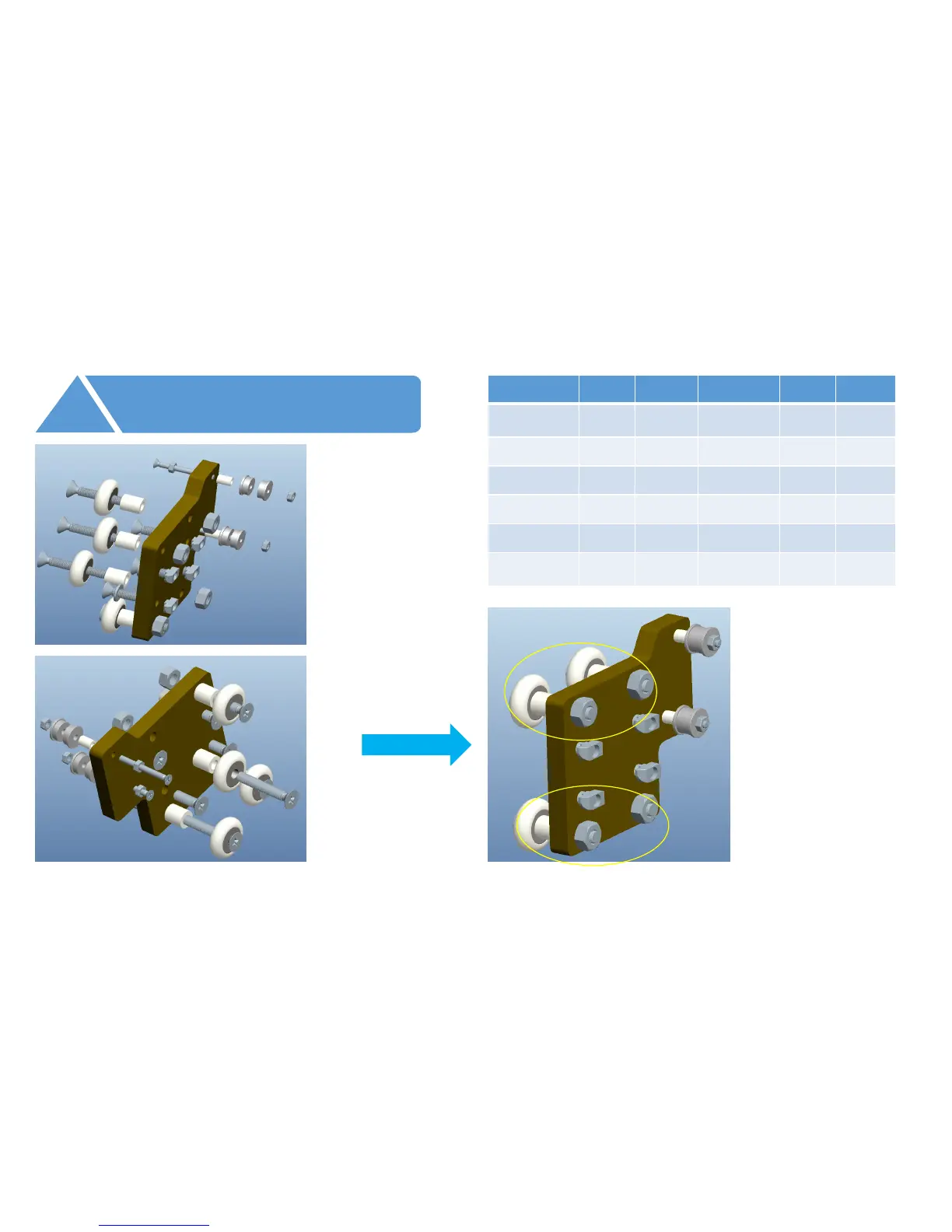

Installation of X Belt Bearing Fixing Plate
11
Name QTY Note Name QTY Note
X Belt Bearing
Fixing Plate
1
M5 T Nut
4
M5*30 Screw
4
M3 Nut
4
M5*14 Screw
4
M5*10 Pillar
4
M3*30 Screw
2
M3*7 Pillar
2
M5 Nut
4
Plastic Bearing
4
Unilateral Flange
Bearing
4
Attention:
Don’t tighten too much
when you install pulley ,or
it will have bad influence
on the fluency of slicing.
