Anet A2 - Y Axis Component Alignment for Limit Switch

Installation of Y
08
Name QTY Note
Y Limited Switch
Fixing Plate
1
Y Limited Switch 1
M2 Self-tapping
Screw
2
M5*12 Screw 2
M5 T Nut 2

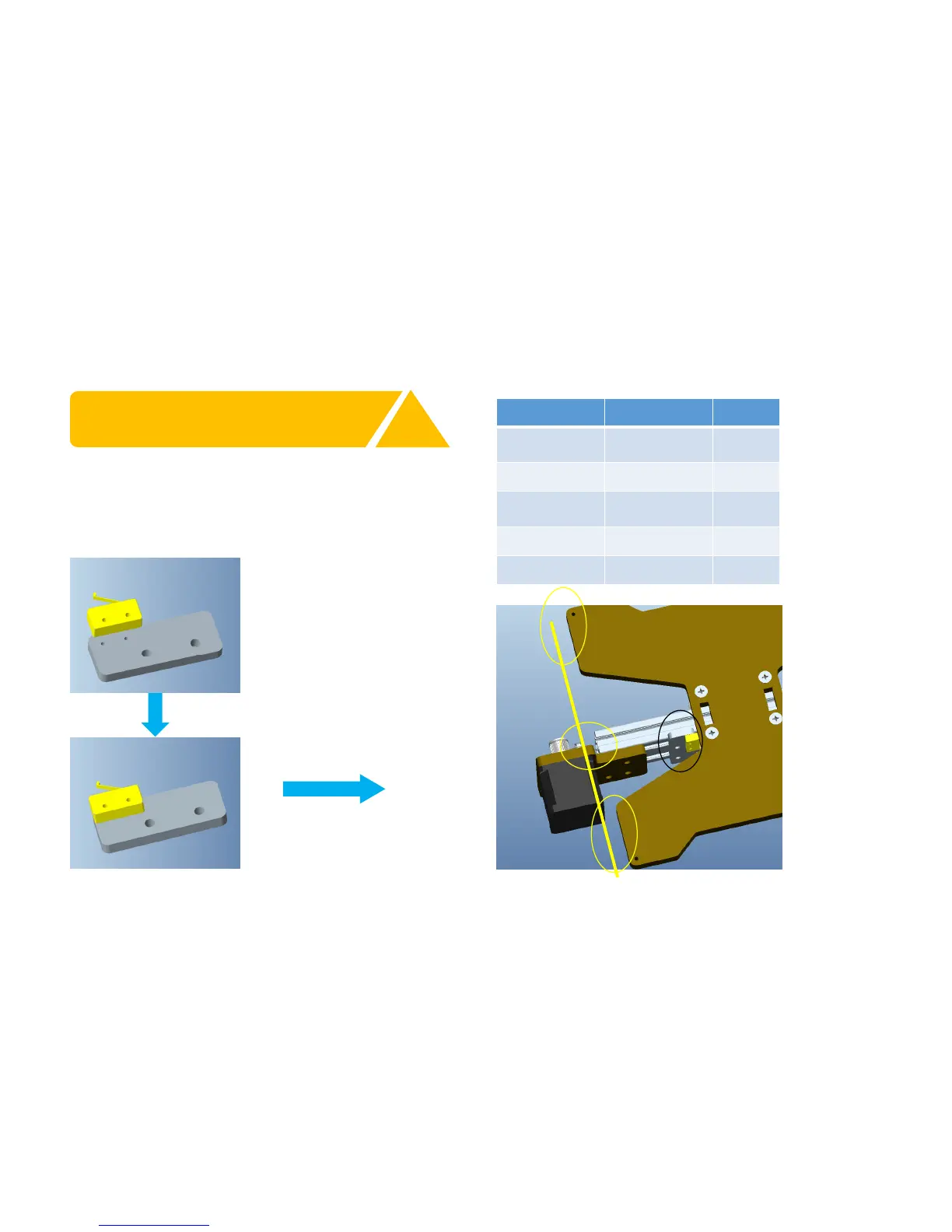

Attention:
Keep the hotbed fixing plate and motor fixing plate
at the same level . The adge of hotbed fixing plate
is the position of the limited switch.
