The oven (referred to below as the appliance), is designed and
constructed to cook foods in the professional catering sector.
The appliance's functions are controlled by a control board al-
lowing setting of all the functions provided to allow more uniform
cooking.

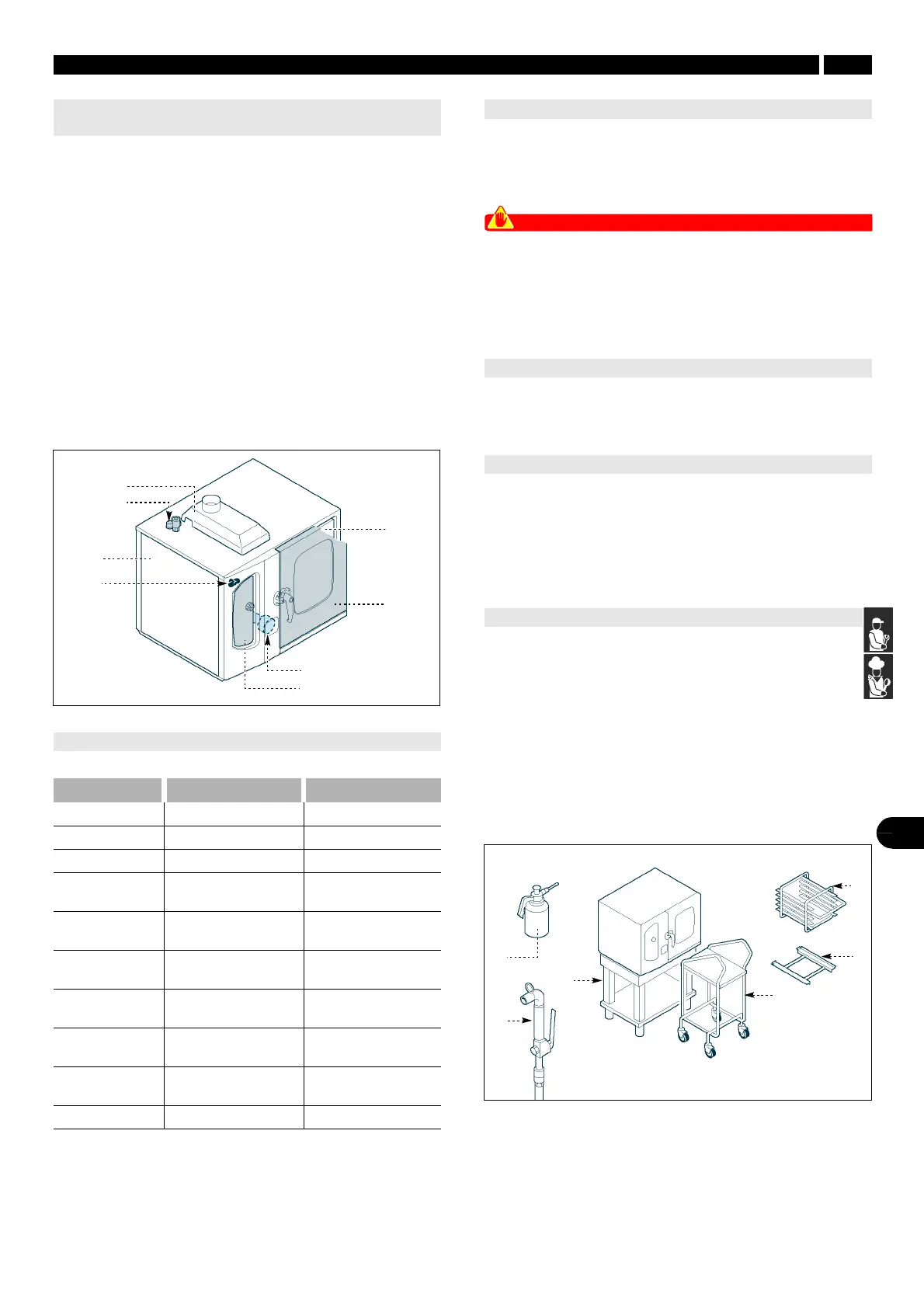

Main parts
A)Electrical component compartment panel.
B)Control board.
C)Cooking chamber.
D)Oven door.
E)Burner.
F)Fume exhaust vent.
G)Steam exhaust pipes.
L)Steam exhaust knob
Although the appliance is complete with all safety devices,
during installation and connection additional devices must be
added if necessary to comply with the relevant legal require-
ments.
Caution - warning
Make a daily check that the safety devices are properly
installed and in good working order.
Do not tamper with the safety devices in the points
sealed and marked with paint.
See chart at back of manual for the position of the signs provided.
The appliance is delivered complete with the following:
– Set of nozzles; for adapting the appliance to the type of gas
available.
– Driver screw: for use when replacing the air fan.
The appliance can be equipped with the following accesso-
ries on request:
A)Detergent spray (PND).
B)Washing spray gun (LDL).
C)Container rack (spacing 60/85).
D)Container rack trolley.
E)Container rack guides.
F)Support frame.
G)Stacked installation kit.
H)Set of pastry trays.
TECHNICAL INFORMATION 2
GENERAL DESCRIPTION OF THE
APPLIANCE
2/1
TECHNICAL DATA
2/2
Description FC 611 G FC 1011 G
Oven dimensions 976x770x(725+100) mm 976x770x(940+100) mm
Electricity supply 230V 1N 50-60Hz 230V 1N 50-60Hz
Rated power 12 kW 18 kW
Electricity power
consumption
650 W 650 W
Power supply
cable gauge
3G 2.5 mmq 3G 2.5 mmq
Chamber opening
dimensions
440x450 mm 440x665 mm
Chamber
dimensions
647,5x652,5x510 mm 647,5x652,5x725 mm
Number of
containers
6 10
Containers
dimensions
325x530x40 325x530x40
Current rating 5,5 A 5,5 A
SAFETY DEVICES
2/3
SAFETY AND INFORMATION SIGNS
2/4
STANDARD ACCESSORIES
2/5
OPTIONAL ACCESSORIES
2/6
IDM-39614001100.tif
A
F
C
D
E
B
G
L
IDM-39614000100.tif
A
B
F
D
E
C
