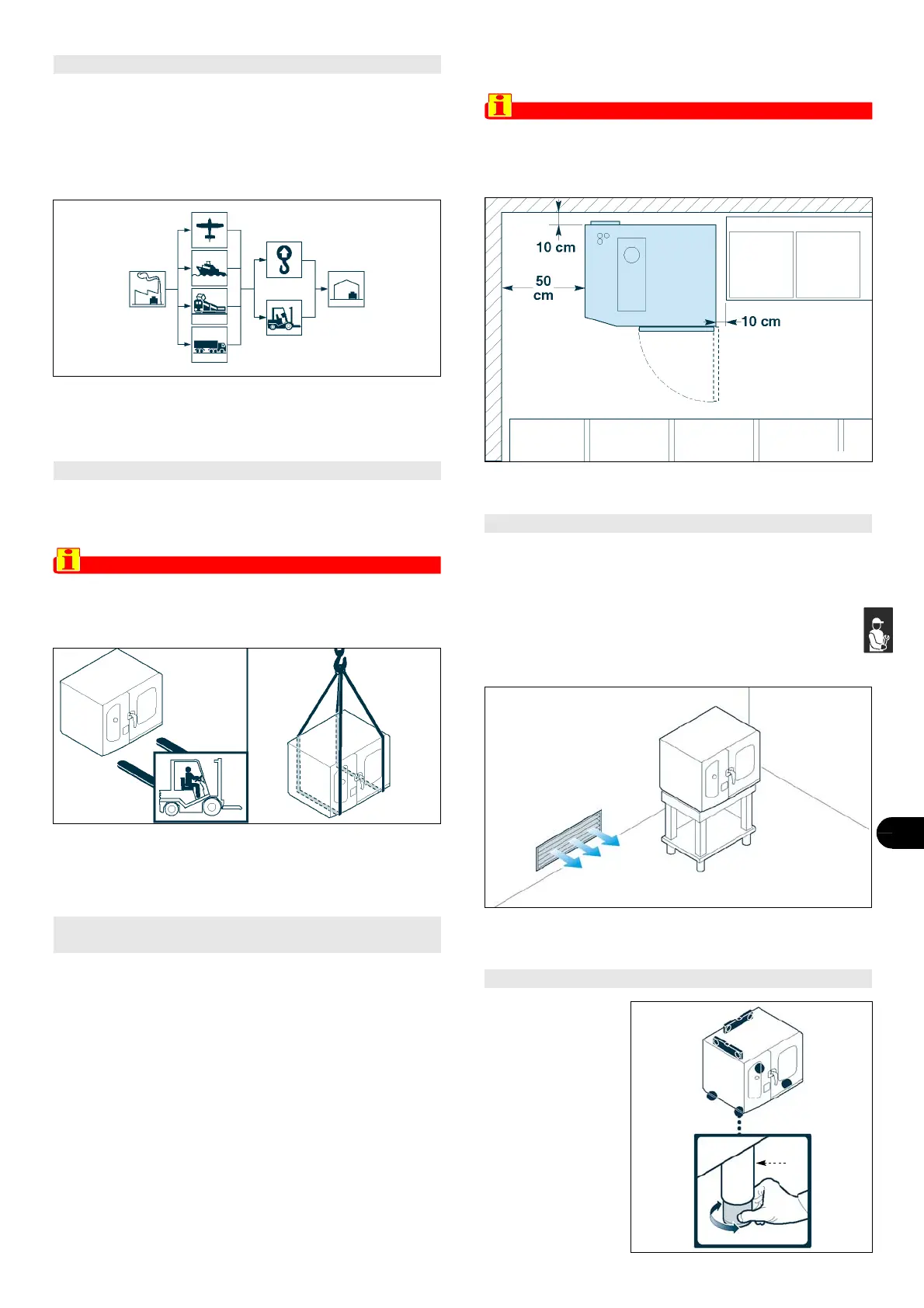

Different means of transport may be used, depending partly on
the destination.
The chart shows the most commonly used alternatives.
During transport, fix the packaging to the means of transport se-
curely to prevent undesirable shifting.
The appliance can be handled using fork-lift or hook equipment
of suitable load-carrying capacity.
Before lifting, check the position of the load’s centre of gravity.
Important
When engaging with the lifting equipment, watch out
for the intake and outlet pipes.
All installation stages must be considered right from production
of the general layout. Before starting these stages, as well as
deciding the place of installation, if necessary, the person au-
thorised to carry out these operations must organise a "safety
plan" to protect the people directly involved, and he must also
ensure strict compliance with all legal requirements, especially
those relating to mobile work-sites.
The place of installation must have all the utility supply, ventila-
tion, extraction and production residue venting connections
needed, must be suitably lit and must meet all legal health and
hygiene requirements to prevent the contamination of the foods.
If necessary, fix the exact position of each individual appliance
or subassembly by mark coordinates to locate them correctly.
Install in accordance with the relevant legislation, regulations
and specifications in the country of use.
Important
Install the appliance on a stand (available as an op-
tional) and position it as shown in the diagram.
The room where the appliance is installed must have air inlets
to ensure that the appliance can operate correctly and provide
the necessary air exchange in the room itself.
The air inlets must be of appropriate size and must be pro-
tected by gratings and placed so that they cannot be ob-
structed.
Adjust the floor-
mounted feet (A) to
level the appliance.
TRANSPORT
7/3
HANDLING AND LIFTING
7/4
INSTALLATION OF THE
APPLIANCE
7/5
ROOM VENTILATION
7/6
LEVELLING
7/7
Lifting
equipment
Means of transport
IDM-3960200180.tif
IDM-3960320130.tif
IDM-3960320140.tif
IDM-3960320330.tif
A
IDM-3960320160.tif
