1. GENERAL
1.1 A quick look at the appliance
The most important parts of the appliance are shown in the fold-out sheet in this manual.
Keep the fold-out sheet open when reading the instructions.
1.1.1 Most important parts
1. Appliance on/off switch coffee making 6. Top hot plate
section and bottom hot plate 7. Glass jug/thermos flask
2. On/off switch for top hot plate 8. Descaling opening
3. Basket filter with drip stop device 9. Jug detector
4. Basket filter paper 10. Bottom hot plate
5. Control panel coffee maker 11. Type plate
5.1 Display 12. Water drain
5.2 Descale indicator light 13. Connection cable with plug
5.3 Brewing process indicator light 14. Dry-boil protection
5.4 Selection button 15. Water connection
5.5 Start/stop button

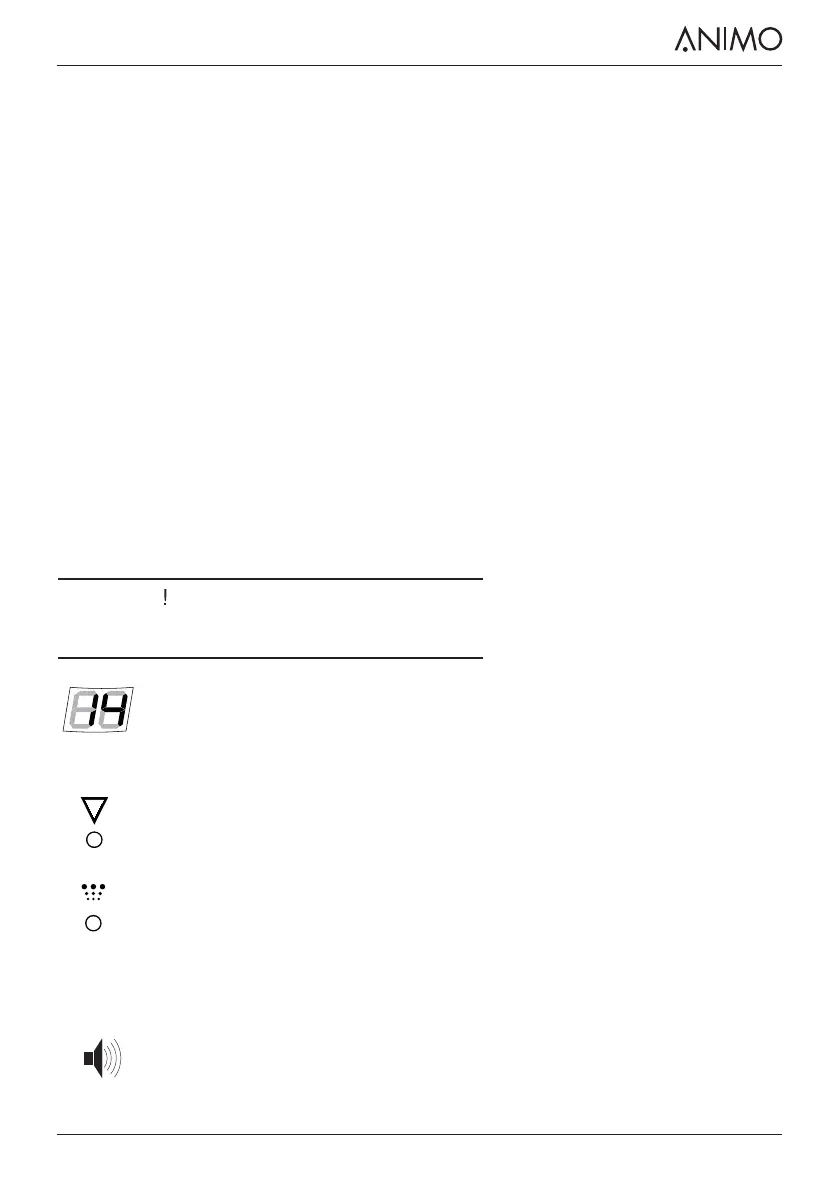

1.1.2 Control panel
The control panel has the following functions:
Display (5.1); The display shows the selected amount of coffee, in terms of
cups. For display in litres, see chapter 5.2.
While the coffee is being made the display alternately shows the selected
amount and the amount of coffee that has already been made.
Descale indicator light (5.2); The red indicator light will light up if the
appliance needs to be descaled. The appliance will continue to work so that it
can be descaled when it is not being used. See also chapter 6.2.
Brewing process indicator light (5.3); The green indicator light lights up
when the coffee passes through the system. At the end of the coffee making
process a signal sounds three times and the green indicator light goes out.
The indicator light flickers if the jug is temporarily removed during the coffee
making process. A signal will also sound indicating that the coffee making
process has temporarily stopped.
Sound signals; Sounds three times at the end of the coffee making process.
Sounds once if the jug is removed during the coffee making process.
A long signal sounds when the appliance is switched on.
CAUTION
• Neverpressdebuttonswithasharpobject.
• Protectthecontrolsagainstdirtandgrease.
