Page 13 of 20

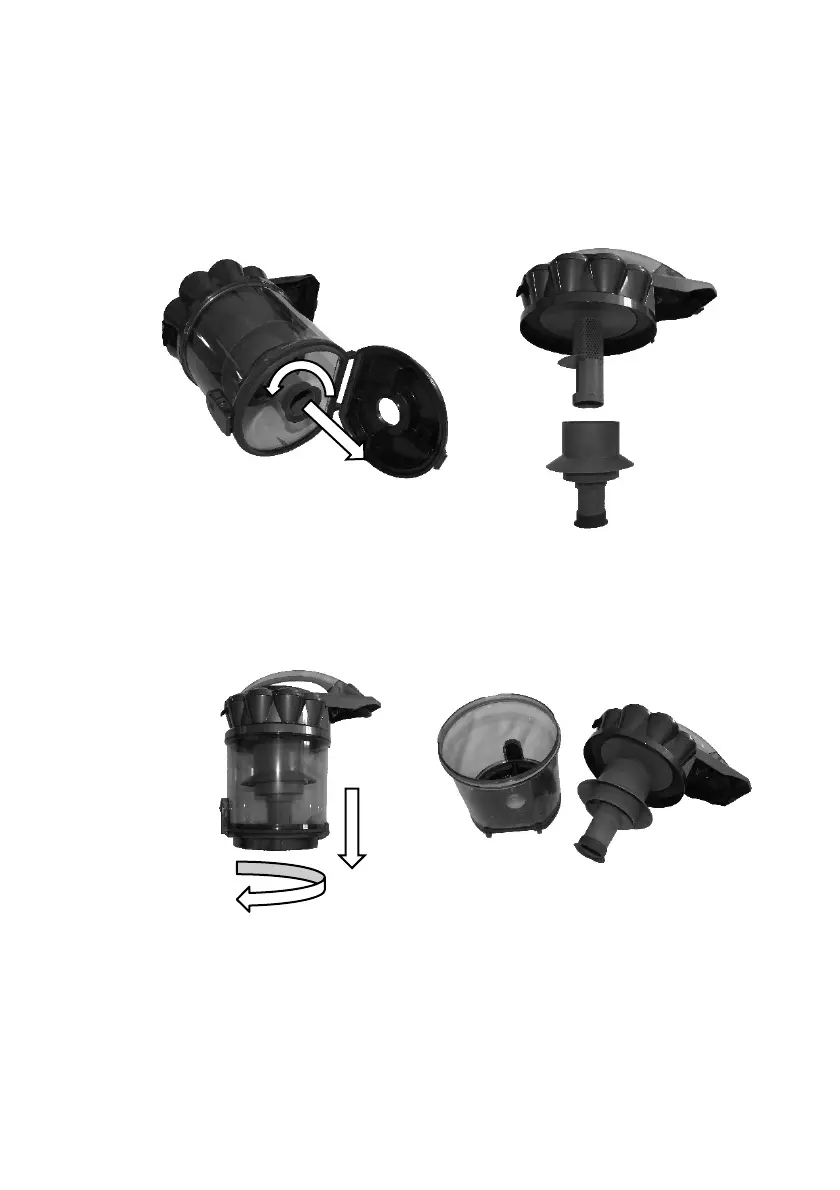

• During emptying of the dust canister, the outer lower post should be
removed so as to clean away any hair and debris that may be wrapped
around the inner post.
• To remove, whilst the dust canister trap door is open, hold the dust
canister body firmly, grasp the outer lower post and rotate
anticlockwise to unlock then pull straight out as shown.
• Clean the inner tube using your fingers or a brush.
• Alternatively, first remove the dust canister body by holding the top
section of the dust canister and rotate the bottom clear section of the
dust canister anticlockwise and pull apart.
• Then remove the outer lower post and clean as described above.
• Brush the inside of the dust canister with a small brush or wash Refer
to section “Cleaning”.
• To refit the
outer lower post, push over the inner post all the way and
rotate clockwise until it locks in place.
