6 Assembly Method
Please Note: Always remove the plug from the power socket before fitting or
removing accessories.
Ensure all Filters are fitted and fitted correctly before using.

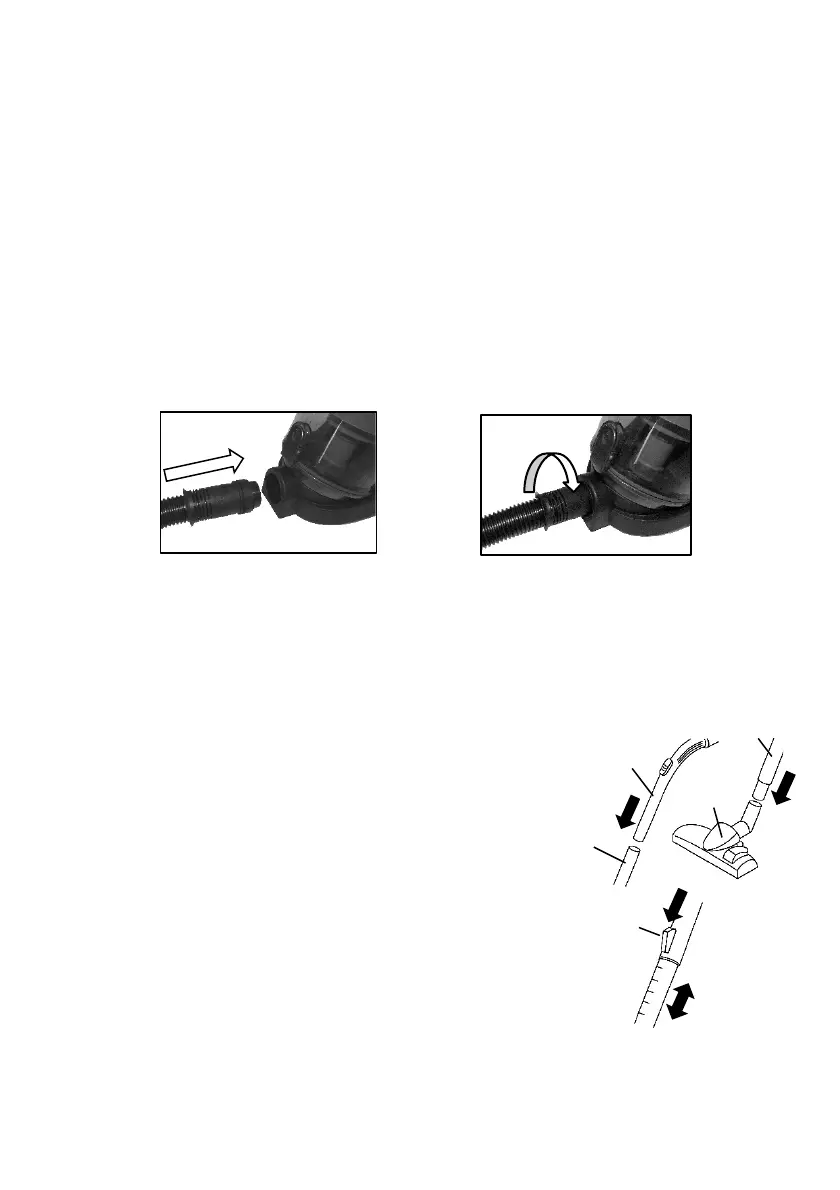

6.1 Fitting Flexible Hose
Align the two tabs on the side of the hose coupling with the two slots in the
vacuum cleaner
Hose Connector hole, then push the hose coupling all the
way into the Hose Connector hole.
Grasp and rotate the hose coupling clockwise to lock in place.
6.2 Hose Removal
To remove the flexible hose from the vacuum cleaner, grasp and rotate the
hose coupling anticlockwise and then pull the coupling straight out.
6.3 Fitting Telescopic Tube and Accessories
• Insert the hose handle (1) into the upper end of
the telescopic tube (2).
• Insert the lower end of the telescopic tube (4)
into the Floor Head (3).
• To adjust the length of the telescopic tube,
press the telescopic tube lock button (5) down,
and then pull the handle and tube out to the
desired length.
