6-1 Opening the Site Master Case Assembly Replacement
6-2 PN: 10580-00253 Rev. J S3xxE MM
4. Use a Phillips screwdriver to remove the six screws securing the two halves of the Site Master case
together (Figure 6-2).
5. Carefully lift up on the side of the case indicated above and begin to separate the two halves.
6. Lay the Site Master flat and remove the battery connector cable between the two halves (Figure 6-3).
7. Closing the case is the reverse of opening. Ensure all cables are properly seated and none are pinched
before closing the case. The torque setting for the 6 case screws is 7.5 lbf·in (0.85 N·m).

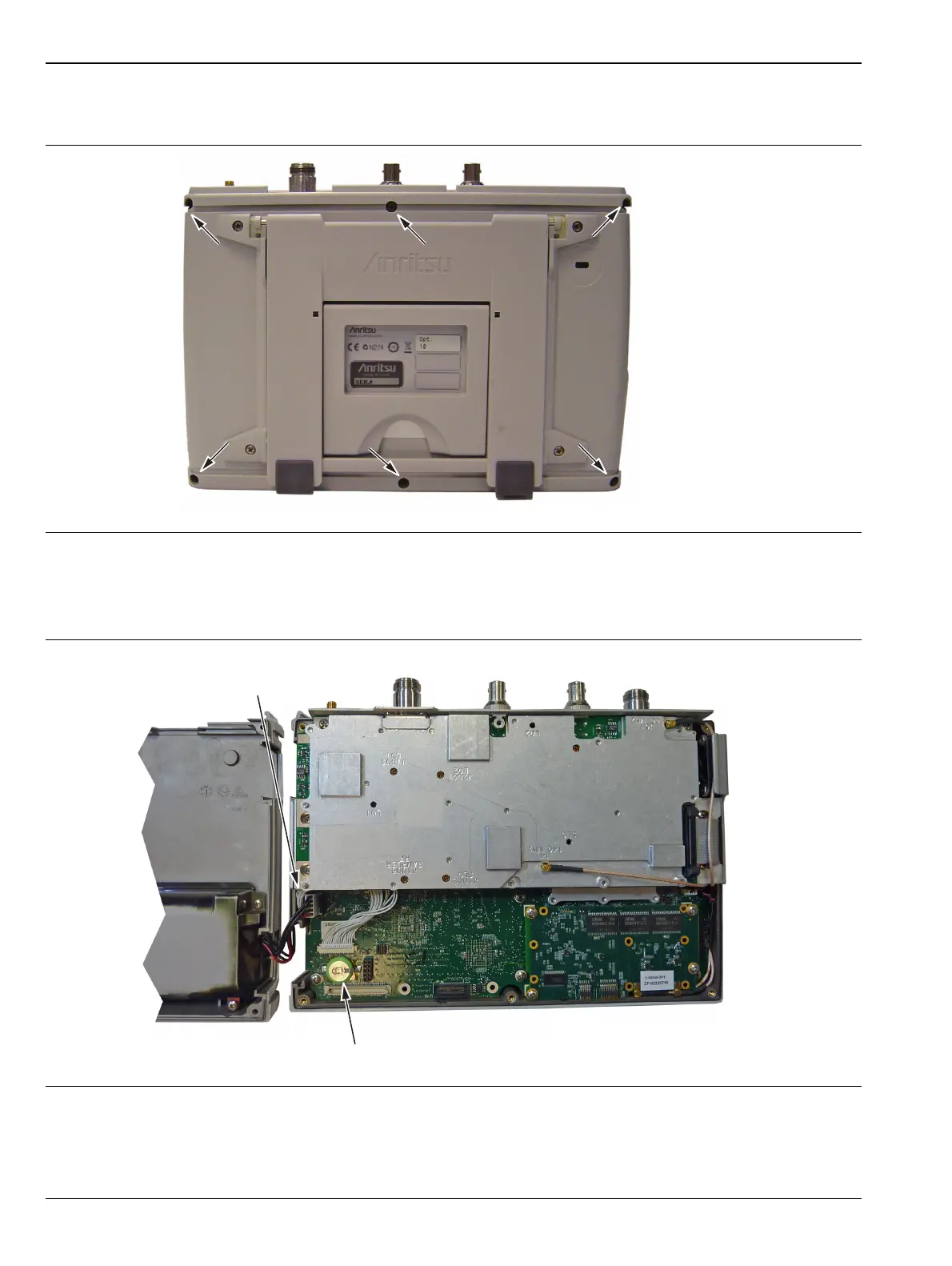

Figure 6-2. Remove the Four Screws
Figure 6-3. Site Master Opened 180 Degrees
Carefully lift
this side first
Location of the 6 screws to remove.
RTC Battery
Disconnect battery cable to
separate the case halves.
