Figure 4-3 is an example of a typical transmission line cable loss measurement trace using a
standard calibration.
4-6
Chapter 4 Cable & Antenna Measurements

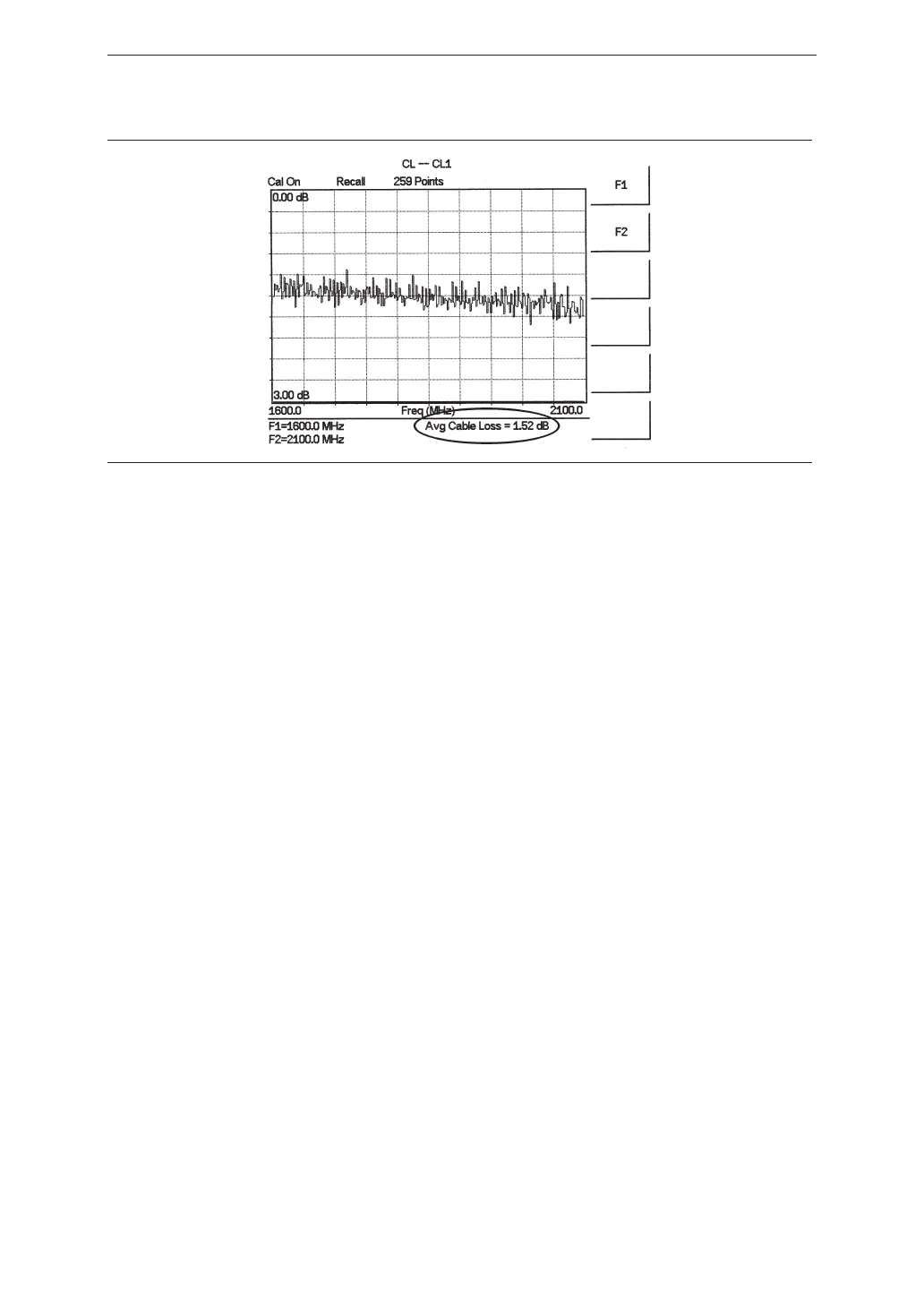

Figure 4-3. Typical Transmission Line Cable Loss Trace
