7. DISASSEMBLY AND MAINTENANCE
WARNING! Before disassembly, the pump must have the drive "locked out" and be flushed of all
dangerous liquids. Follow all Federal, State, Local and company regulations with regard to pump
decontamination prior to disassembly and inspection. Ansimag K Series pumps are provided with a
low point casing drain to maximize pump decontamination.
Both the long coupled and close coupled K Series pumps can be pulled back from the casing. Therefore,
if permitted by company regulations, pump disassembly and inspection can be conducted on site.
Before inspecting, be sure to have a spare casing O-ring on hand to reinstall after the inspection is
completed.
7-a. BASIC DISASSEMBLY FOR INSPECTION
1. Stop the pump, lock out the
pump starter, shut off all the
valves connected to pump,
and drain and decontaminate
the pump. Warning! Be
sure pump is flushed of
dangerous or hazardous
liquids and all internal
pressure is relieved before
opening the pump for
inspection.

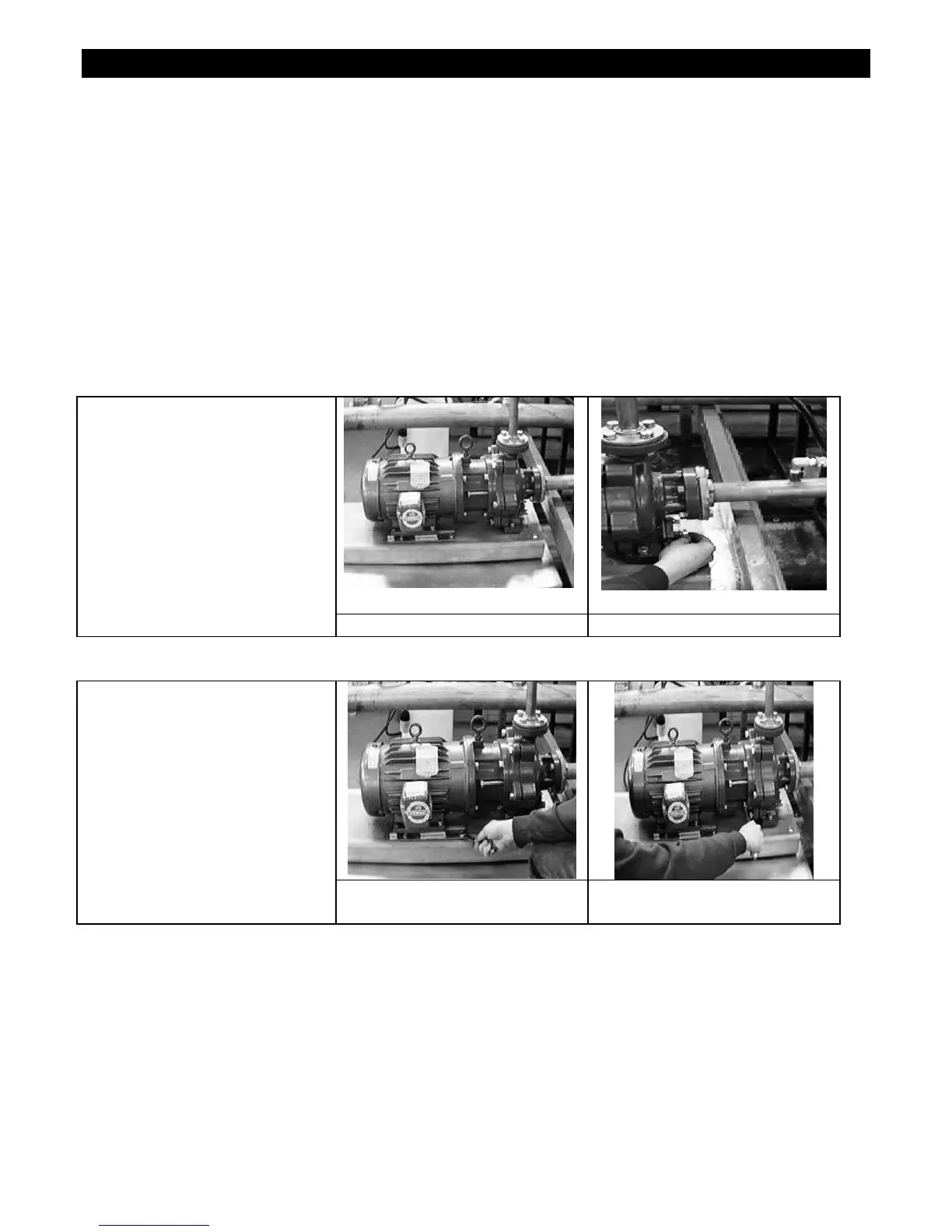

Fig. 7-1: K Series Pump Fig. 7-2: Casing Drain
2. Remove the bolts securing
the motor and/or the bracket
to the base. Remove the
bolts securing the pump
bracket to the rear support.
Fig. 7-3: Unbolt from Base Fig. 7-4: Unbolt Bracket from
Rear Support
