7
CAUTION
Read all instructions before removing pump from shipping container or preparing it for operation. It is
important to install and operate the pump correctly to eliminate any possible mishap that may be
detrimental to property or personnel. Keep this manual for future reference.
2. PUMP IDENTIFICATION
Every pump and wet end only unit shipped has a serial number, model number, and code number
stamped on a stainless steel identification tag. This plate is riveted on a bracket or casing. Please
confirm all information stamped on the plate as soon as pump is received. Any discrepancy between the
order and the information stamped on plate must be reported to your local dealer. If pump is purchased
with a factory supplied motor, the motor nameplate must also be checked to verify motor's compatibility
with pump and with order. Pay special attention
to voltage, HP, RPM, and frequency information.
Maintenance instructions in this manual are based
on K Series ANSI and ISO models equipped with
NEMA or IEC motors. Because Ansimag keeps
permanent records for all pumps by serial number,
this number should be included with all
correspondence. The model number, including
impeller diameter (in inches), together with the
code number and the mounting code number
define the type of pump in detail.

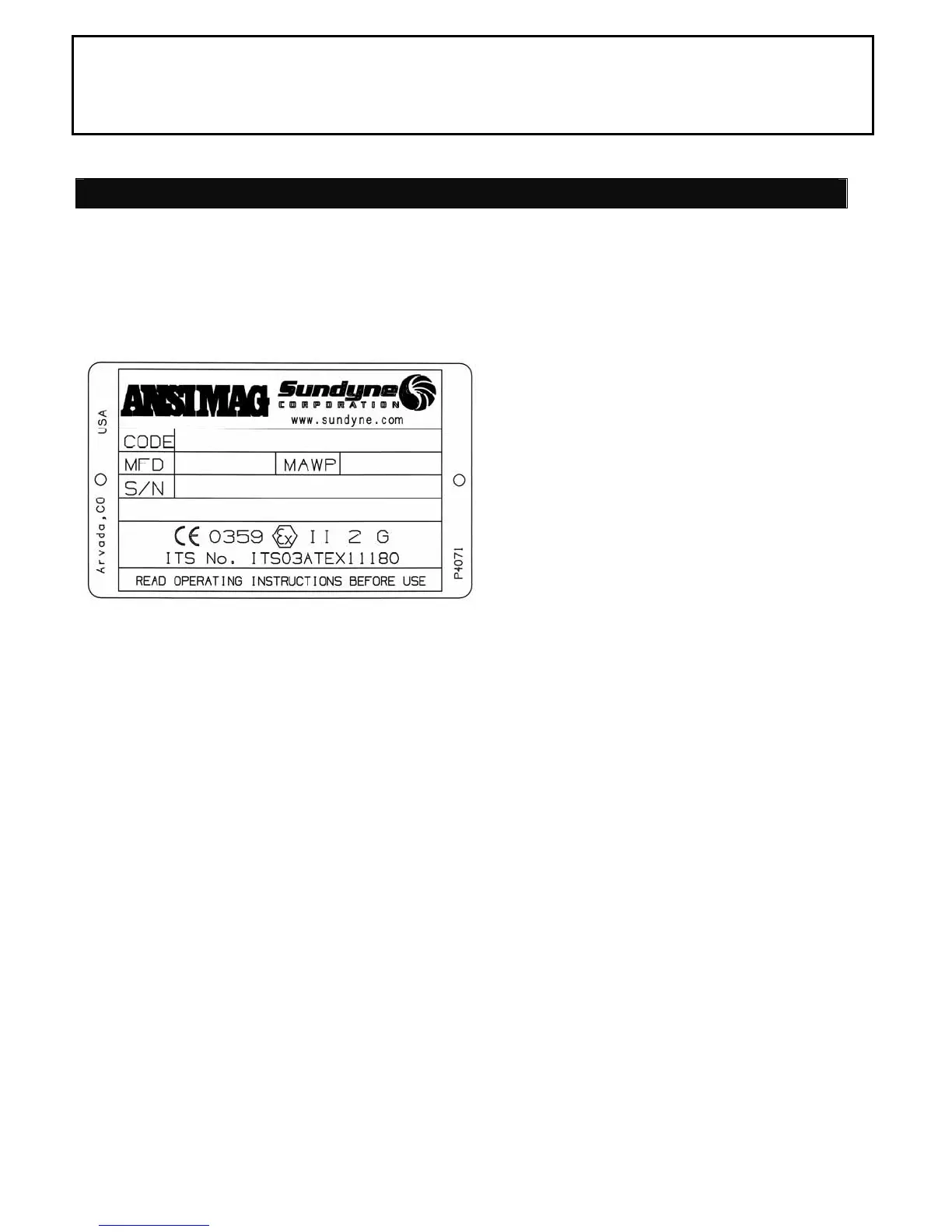

Fig. 2-1 Name Plate
