22
7-d. PARTS REPLACEMENT PROCEDURES
K+ Bushing Installation/Removal Tool

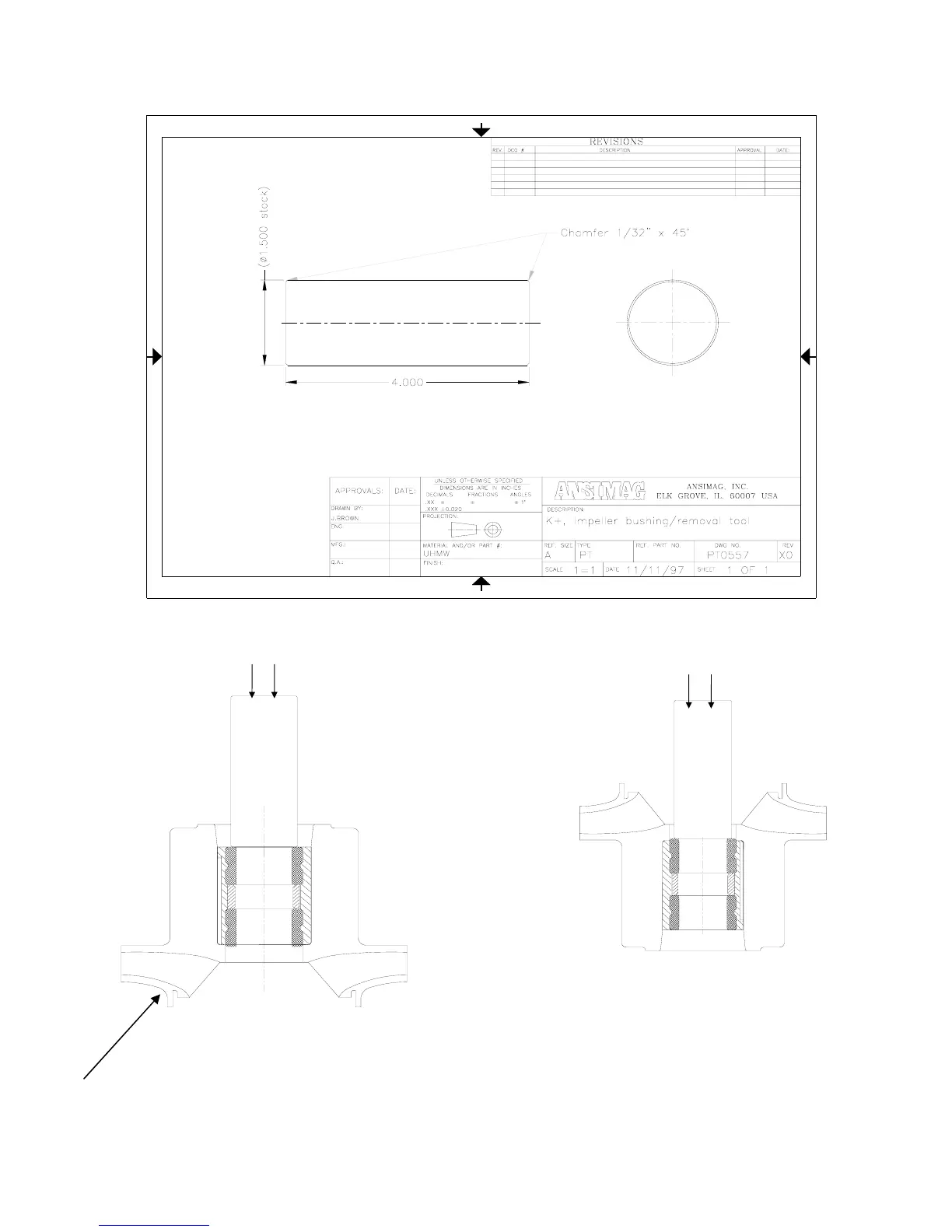

Figure 7-12: K+ Bushing/Installation Tool Drawing
Figure 7-13a: K+ Bushing Installation Figure 7-13b: K+ Bushing Removal
*CAUTION: Outer diameter of impeller must be supported to avoid damage to mouth ring area
during bushing installation.
