12. BEARING FRAME DISASSEMBLY & MAINTENANCE

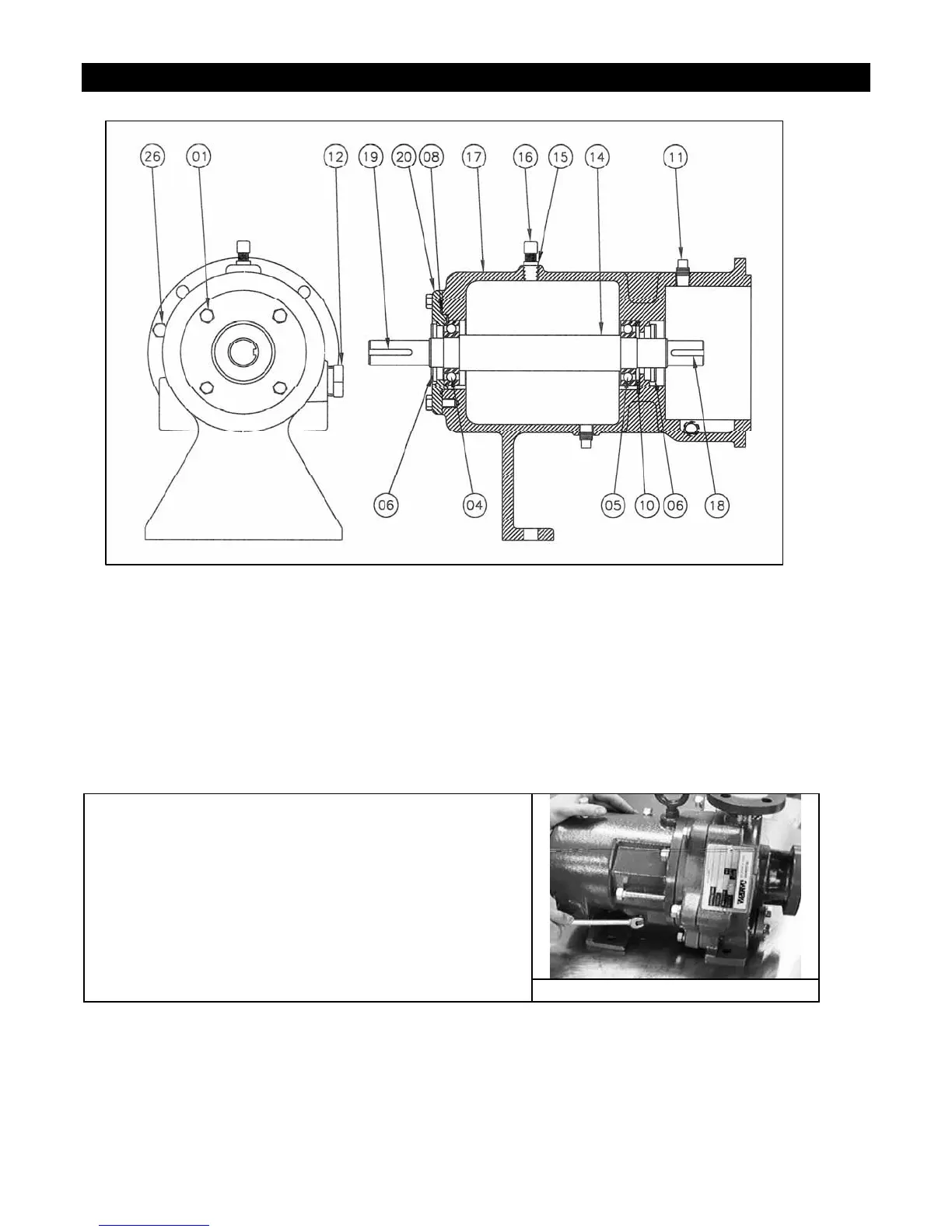

Fig. 12-1: Bearing Frame Assembly
12-a. DISASSEMBLY
Tools Needed:
Adjustable wrench
T handle long 3/16” Allen wrench
1. Remove the coupling guard. Disconnect the flexible
coupling between the motor shaft and bearing frame
shaft. Drain the oil from the bearing frame using the
drain plug on the bottom (8). Unbolt the bearing frame
foot from the base plate.
Fig. 12-2: Drain Plug
