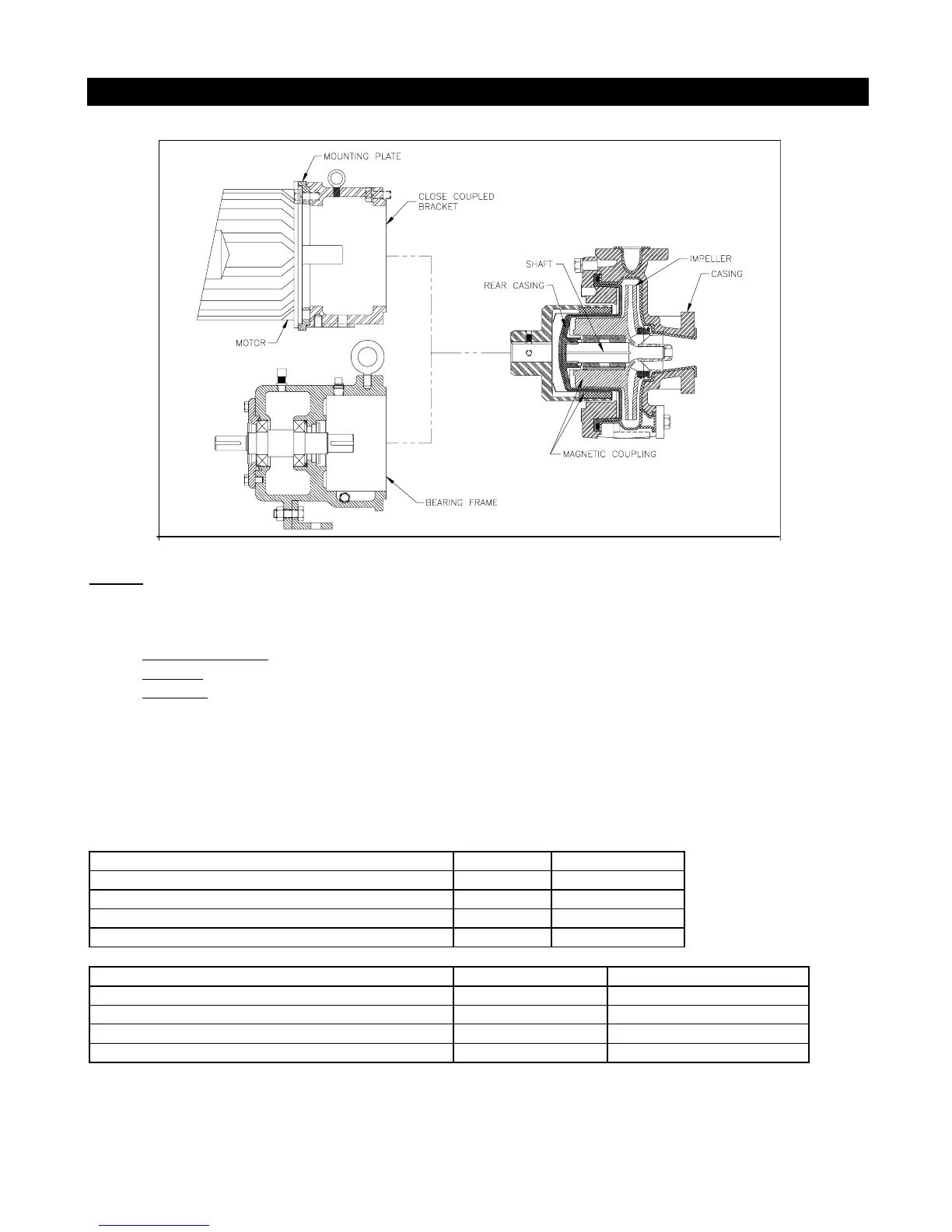

15. SPECIFICATIONS
PUMP
• Horizontal End-Suction, Centerline discharge, Mag-drive Centrifugal pump.
• Synchronous drive, magnetically coupled for zero leakage applications.
• Non-metallic wetted parts.
• Meets ASME/ANSI B73.3 dimensional specification for flange and foot position (close and long coupled).
• Meets ISO 2858 dimensional specifications for flange and foot position (long coupled, only).
• Meets JIS B8313 dimensional specifications for flange position and foot position (long coupled, only).
• Maximum power, 30 hp (22 kW) at 3500 rpm.
• Back pull out design.
• Exterior protection: polyamide epoxy primer with polyurethane top coat (green).
• Slurry: 5% wt. 0.005 inch (150 microns) max.
• Maximum diameter solids: 1/32 inch (0.8 mm) max.
• Max. vapor pressure: consult factory for liquids with vapor pressure curve that passes above 8 psia (0.54 Bar) @
90
o
F (32
o
C).
• Maximum viscosity: *
K1516 (Ki32160) (Kj40160) 700 SSU (150 centistokes)
K3156/K326s/K326 (Ki50160) (Kj50160) 1200 SSU (260 centistokes)
K436 (Ki65160) (Kj65160) 1700 SSU (365 centistokes)
K1518 (Ki32200) (Kj40200) 750 SSU (160 centistokes)
K3158 (Ki40200) (Kj50200) 750 SSU (160 centistokes)
• Minimum flow: **
K1516 (Ki32160) (Kj40160) 3 gpm at 3600 rpm (.68 m
3
/h at 2900 rpm)
K3156/ K326s/K326 (Ki50160) (Kj50160) 5 gpm at 3600 rpm (1.13 m
3
/h at 2900 rpm)
K436 (Ki65160) (Kj65160) 5 gpm at 3600 rpm (1.13 m
3
/h at 2900 rpm)
K1518 (Ki32200) (Kj40200) 5 gpm at 3600 rpm (1.13 m
3
/h at 2900 rpm)
K3158 (Ki40200) (Kj50200) 5 gpm at 3600 rpm (1.13 m
3
/h at 2900 rpm)
* Note: Pump performance (flow, head and efficiency) will be greatly affected by the viscosity of liquid pumped.
Maximum viscosities given above are approximate numbers. Please refer to the Hydraulic Institute's “Viscosity
Correction” chart. A pump should not be used or should be used with caution if efficiency with viscous liquid is less than
50% of efficiency with water.
** Note: Minimum flow data based on water. Consult factory for other liquids.
