k3001 6-3/8
Motor frame 143TC/145TC
6-3/8
Motor frame 182TC / 184TC
6-3/8
Motor frame 213TC / 215TC
K3002
6-3/8
Motor frame 254TC /256TC
Motor frame 284TSC
K3001 K3002 K3004
Motor Mounting Plates

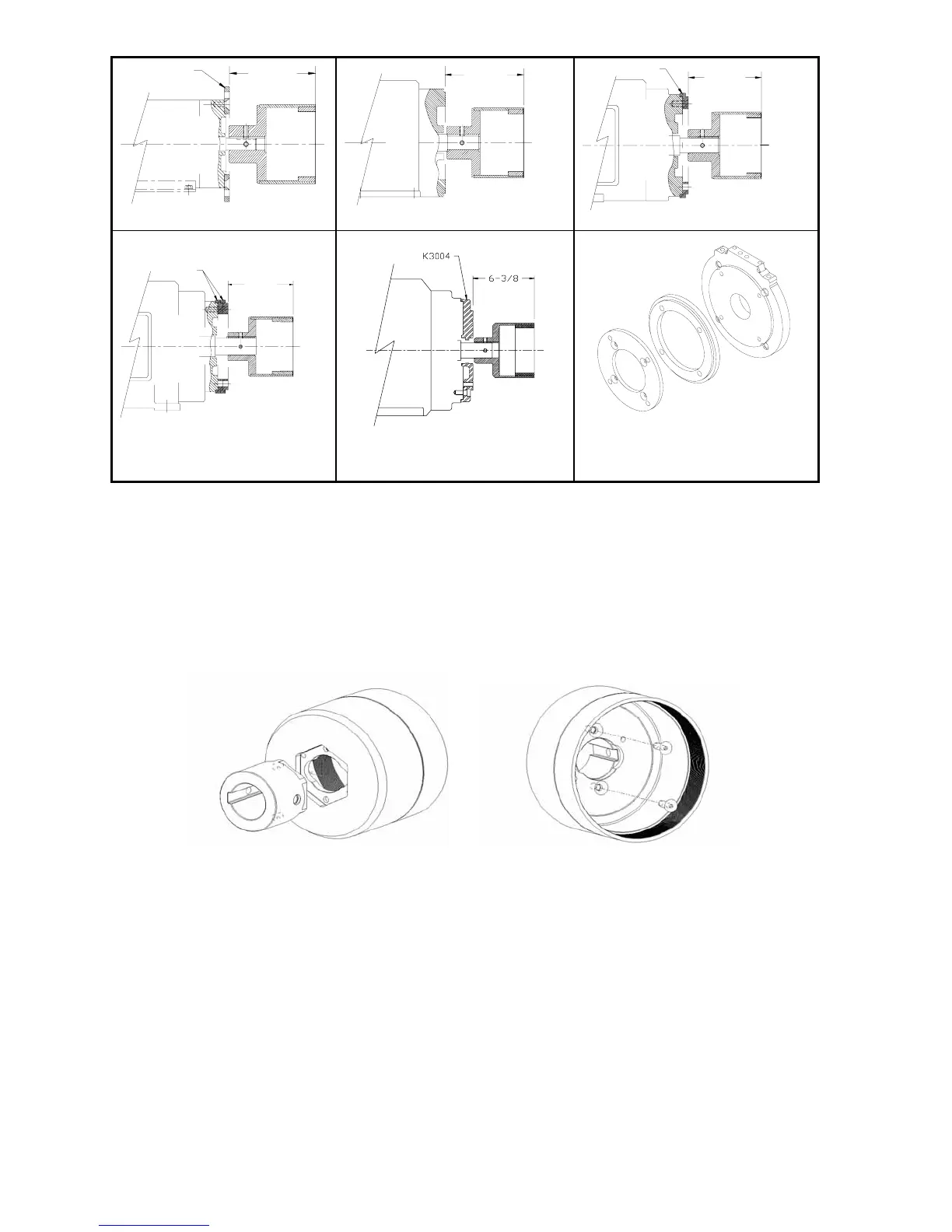

Fig. 9-2: NEMA Outer Drive Mounting Positions (Reference)
5. The outer magnet ring, OMR, (P4091X) is interchangeable to maintain the outer drive mounting
positions without removing the adapter hub (P4069X). After the initial installation, the outer
magnet ring of the outer drive assembly can be attached to the initial adapter hub position using the
two countersunk screws (02-414DJ). Tighten the screws to 60-70 in-lb using a long T handle 5/32”
allen wrench. Ensure the polygon drive and mounting surfaces of the adapter hub and OMR are
clean and smooth; a light oil may be used for preservation.
Fig. 9-3 Outer Drive Assembly
Adapter Hub and OMR
ssembly Installation
