Wiegand 26 date output format (W2 & other access control):
Card user: Output card number.(Decimal)
Fingerprint user: Output ID number.
Anviz Wiegand date output format：
ALL registered users output devieces’ last eight serial number.
(For example, SN of one device is 1050000014470004, then
Anviz Wiegand output 14470004.)

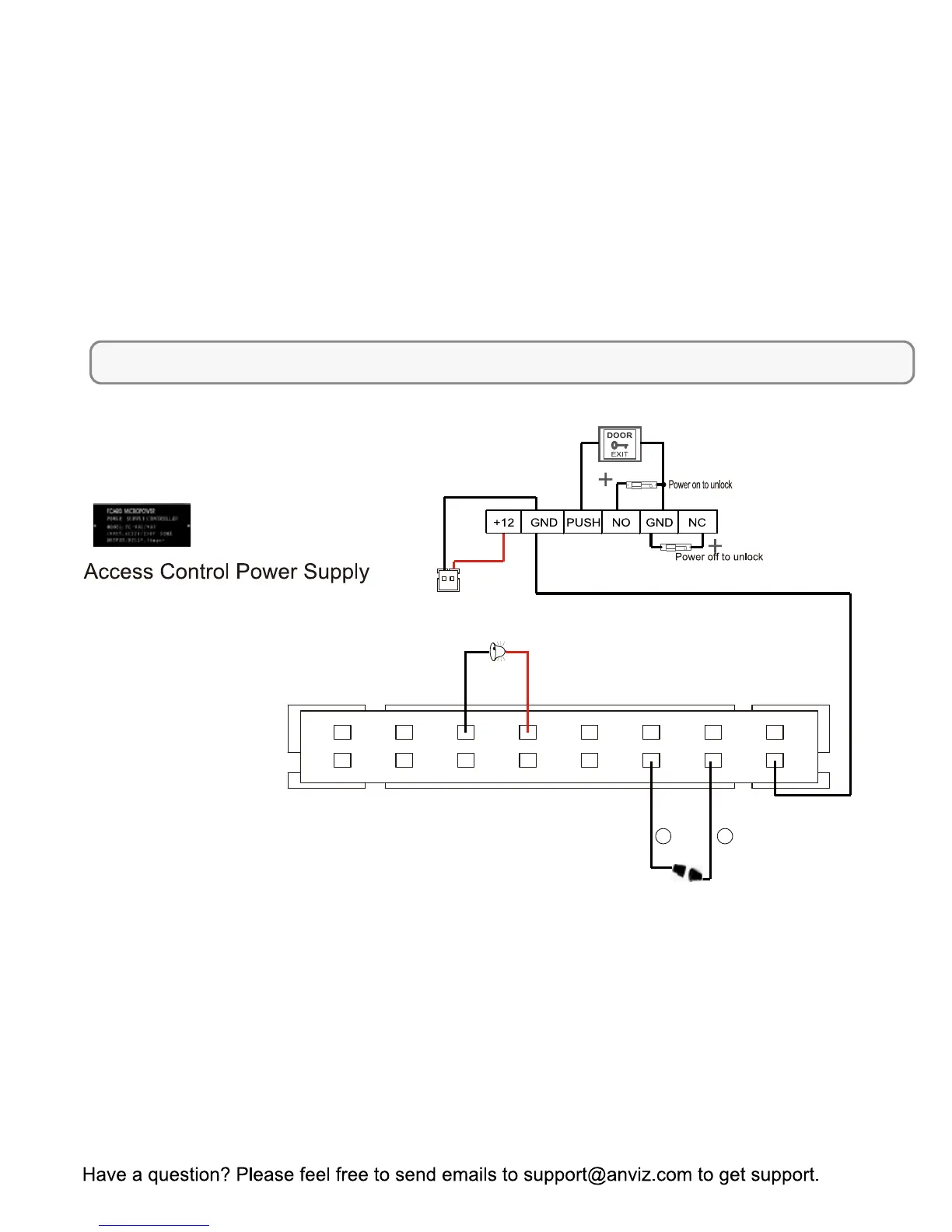

W2 & Access Control Power Supply
DC12V GND
J1
J12
WI0
WO0
GND
BELL-
485A
BELL+
485B
PWR
DM
OPEN
GND
NO
WI1
WO1
COM
NC
Exit button
Door Open Sensor
⑥ ⑧
Active doorbell
+5V
