3

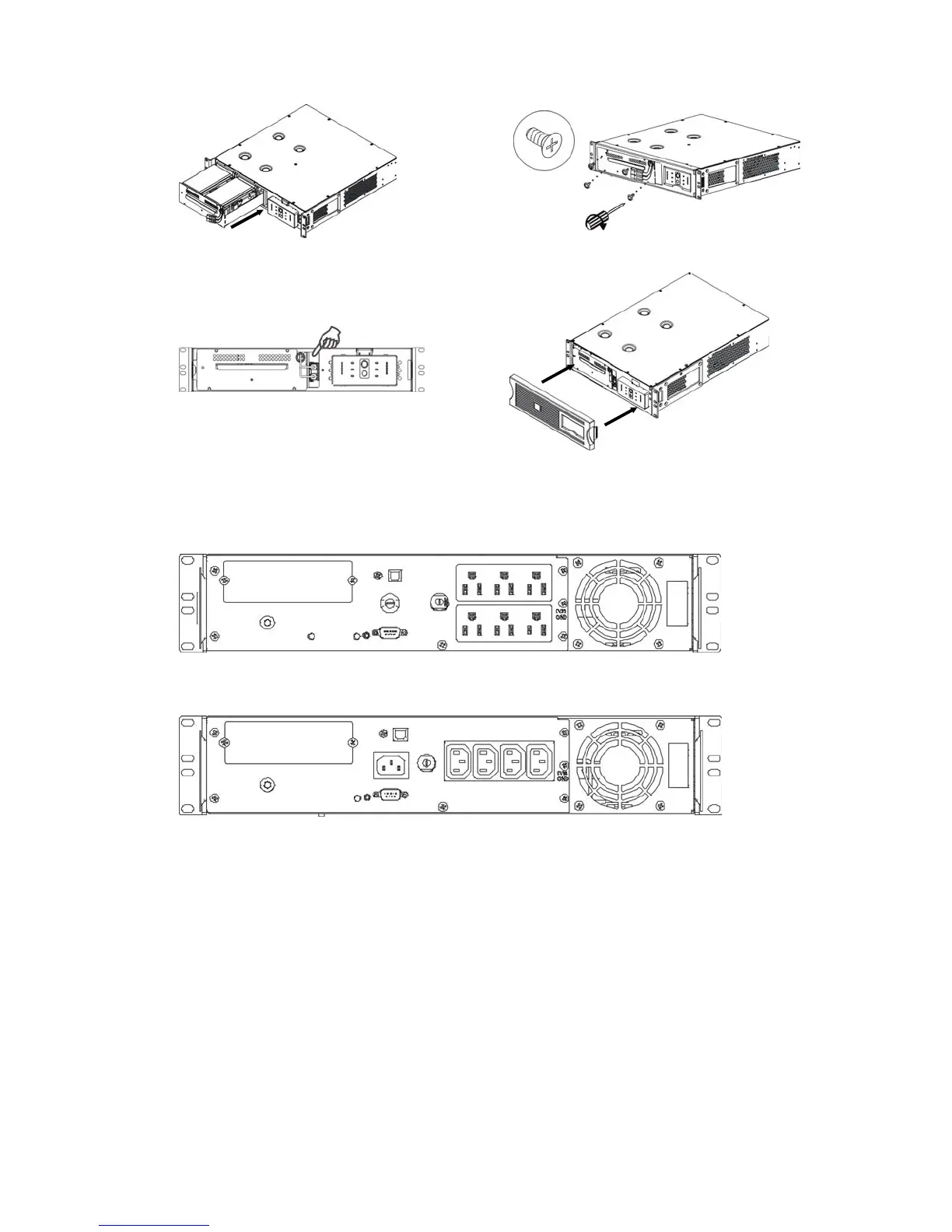

Installing and Connecting the Battery and Attaching the Front Bezel
Step 1 Step 2
Ste
p
3
Ste
p
4
Connect battery plug to UPS. Tuck white battery
cord into space above connector.
Connecting Equipment and Power to the UPS
SMART-UPS REAR PANEL
100/120V Models
120V Model Only: Site wiring fault indicator
230V Models
