Apogee Duet 2 User Manual

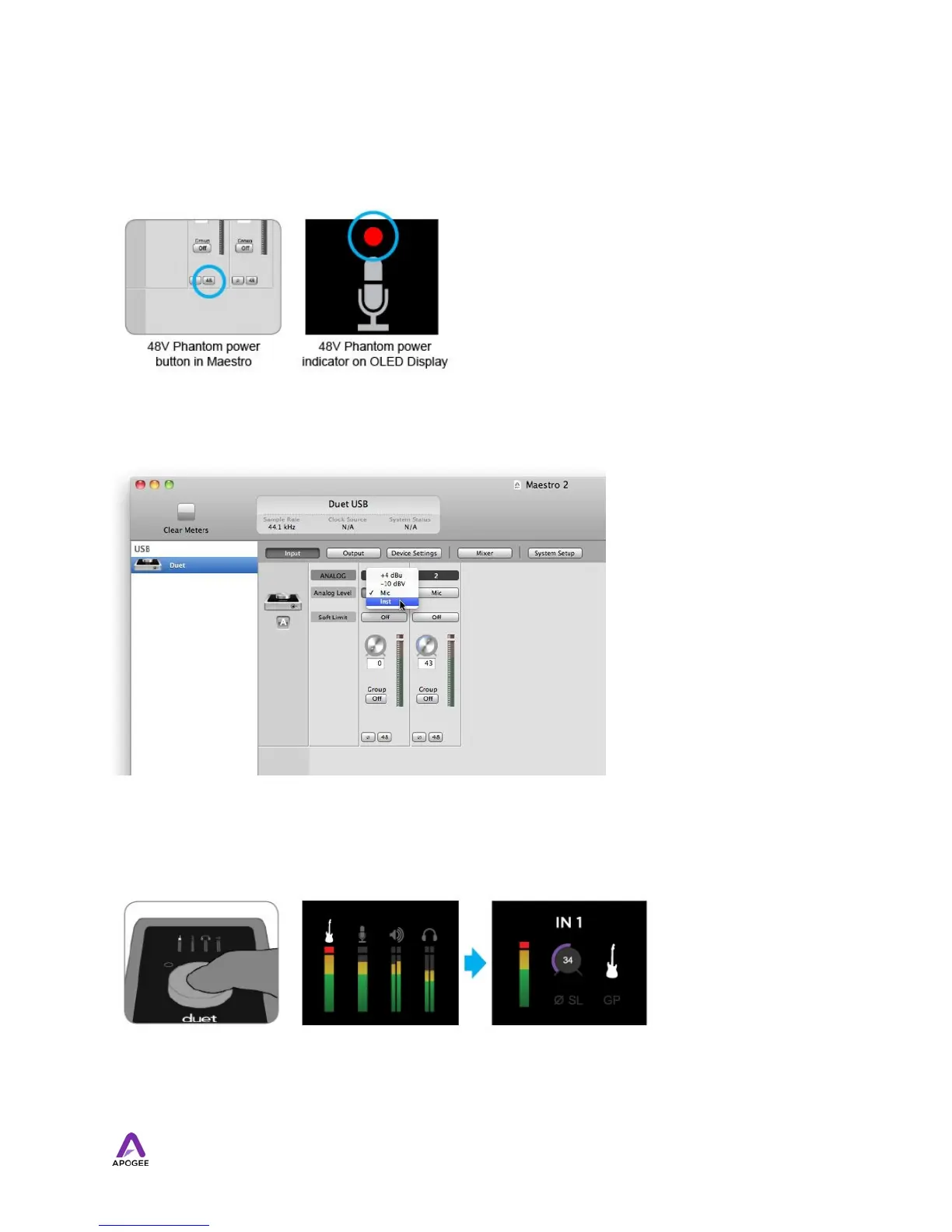

Note: If you are using a condenser microphone that requires phantom power, then select
the 48V box on the Input tab of Maestro 2.
Phantom power is indicated on Duet 2’s display by a red dot above the microphone icon.
If you have an instrument connected to the 1/4” input of the combo jack, then select “Inst”
from the Analog Level menu.
Push the Multi-function Controller Knob until the microphone or instrument icon is lit on the
Duet 2’s display and turn the knob to raise or lower Duet 2’s input level*.
*See the Duet 2 User’s Guide for a more detailed description of setting recording levels.
11

Apogee Duet 2 Specifications

General

Form Factor	Desktop
Max Sample Rate/Resolution	192kHz/24-bit
A/D Resolution	24-bit
Type	Audio Interface
Analog Inputs	2 x XLR/TRS Combo
Phantom Power	Yes
Sample Rates	44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Compatibility	Mac
