7. Check & Adjust Latching Pin to
Receiver.
Attention: When adjusting carrier pin,
verify docking pin is secure in receiver
when carrier is docked to tub.
With weight on chair, move chair in and
out of tub forcefully hitting carrier stop.
Carrier must not disengage from tub.

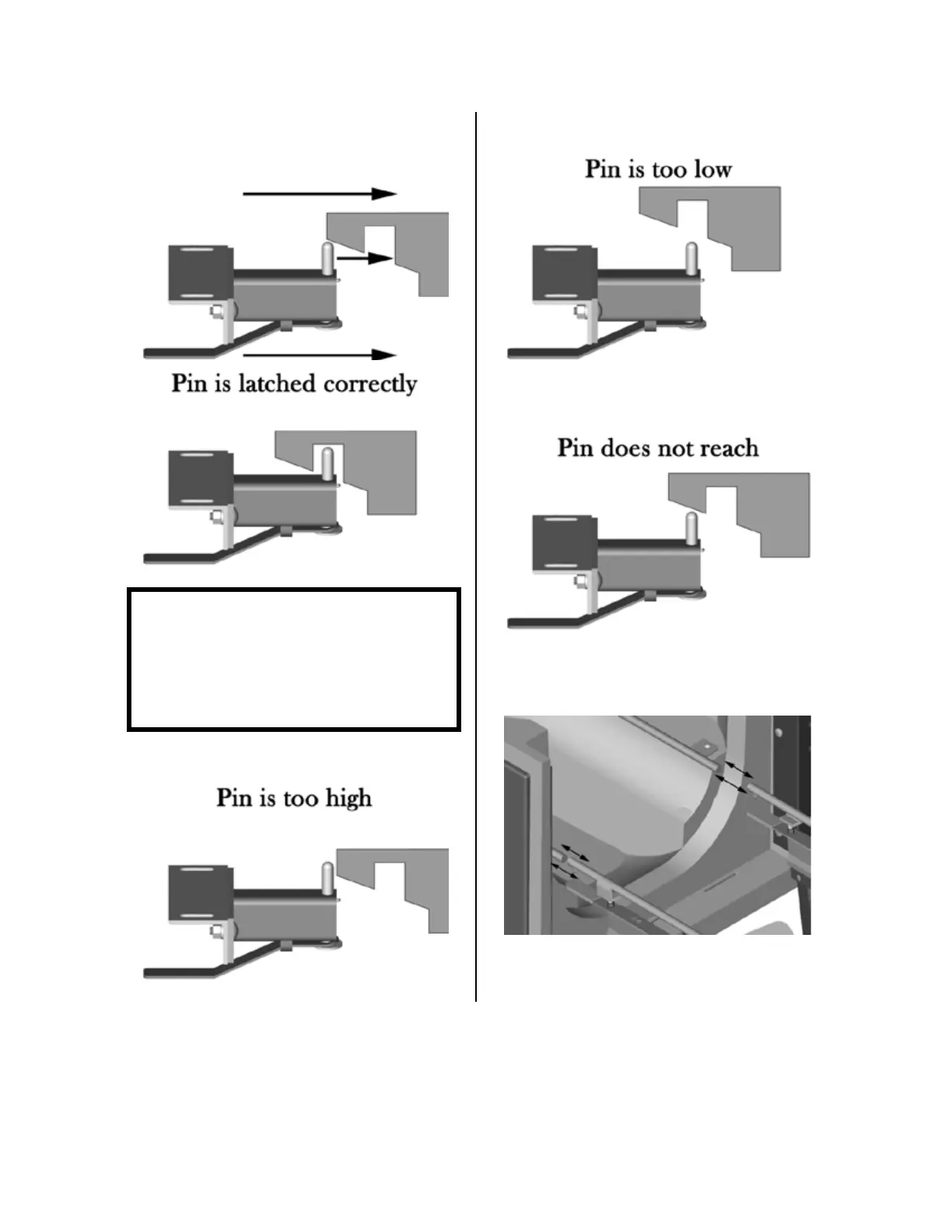

Pin Hits Receiver Top.
Adjust vertical position.
Pin does not latch.
Adjust vertical position.
Pin does not latch.
Adjust horizontal position.
Rails too far away?
Adjust horizontal position.
To Next Page
