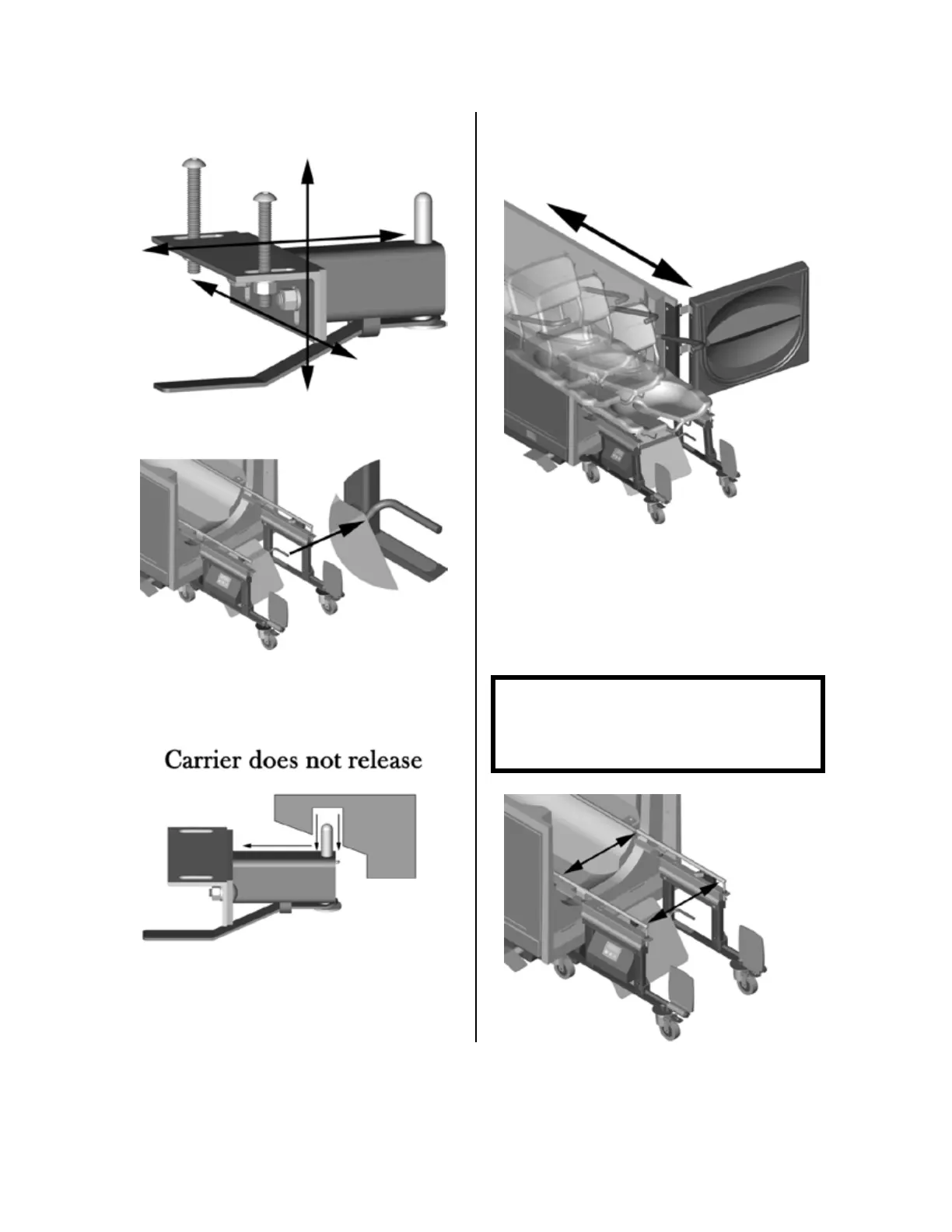

8. Adjust horizontal, vertical and lateral
positions.
9. Release Latching Pin.
Unlock casters and release carrier from
tub.
10. Carrier will not release from tub?
Re-adjust latching pin.
11. Check & Align Carrier Rails
Re-attach Carrier to Tub.
Move Chair between Carrier and Tub.
Verify chair does not rub or catch. Does
chair transfer smoothly? If yes, proceed
to return chair to carrier on page 50. If
not, proceed to adjust carrier rail
alignment on page 50.
Note: Left and right rails should be the
same distance apart at both front and
back ends and aligned with tub rails but
never wider than the tub rails.
