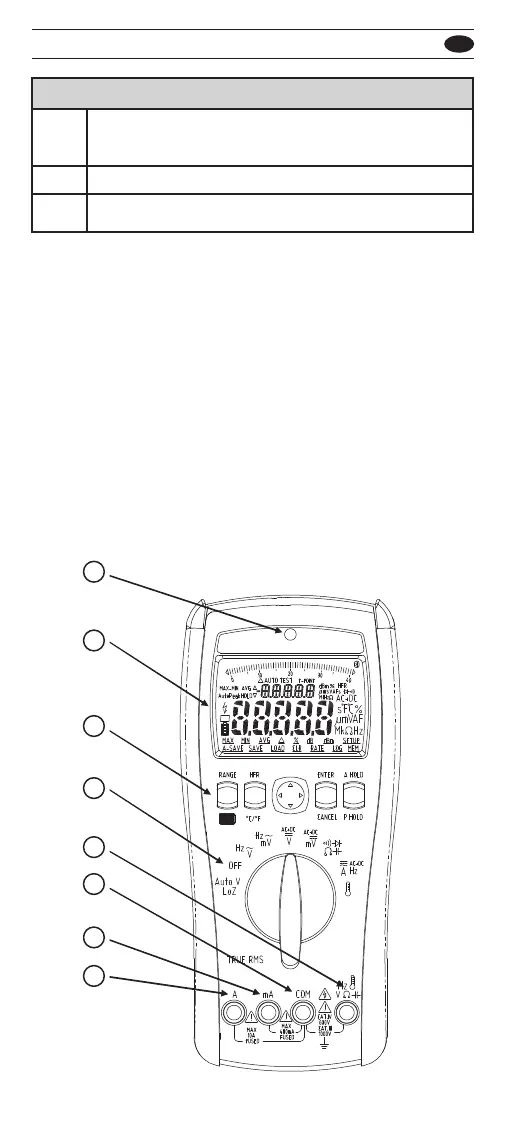

Front panel illustration :
1. Auto backlight sense point
2. 40,000 count dual display
3. Push buttons
4. Rotary switch
5. Input terminal for voltage, frequency, resistance,
continuity, diode, capacitance and temperature
measurements.
6. Return terminal for all measurements.
7. Input terminal for 0 to 400mA current
measurements.
8. Input terminal for 0 to 10A current measurements.
The Meter Description
Meter error. Have meter serviced.
Error Message
ProbE
FUSE
Er
Test probe alert. Displayed when the test probes are in the
A or mA terminal and the selected rotary switch position
does not correspond to the terminalbeing used.
Fuse broke. Replace fuse as soon.
1
2
3
4
5
6
7
8
