APRILIA ATLANTIC 500 Workshop Manual

Electrical system
chap. 6
6-28
Release 00 2002-09
Atlantic 500
CHECKING THE DASHBOARD
• If the dashboard is working correctly, when the
ignition switch is in the “ ” position, the red LED
“ ” of the oil pressure should light up.
CHECKING THE SENSOR
• When the ignition switch is in the “ ” position, the
red LED “
” of the engine oil pressure should
light up.
• If the red LED “
” does not light up, check the
working state of the sensor.

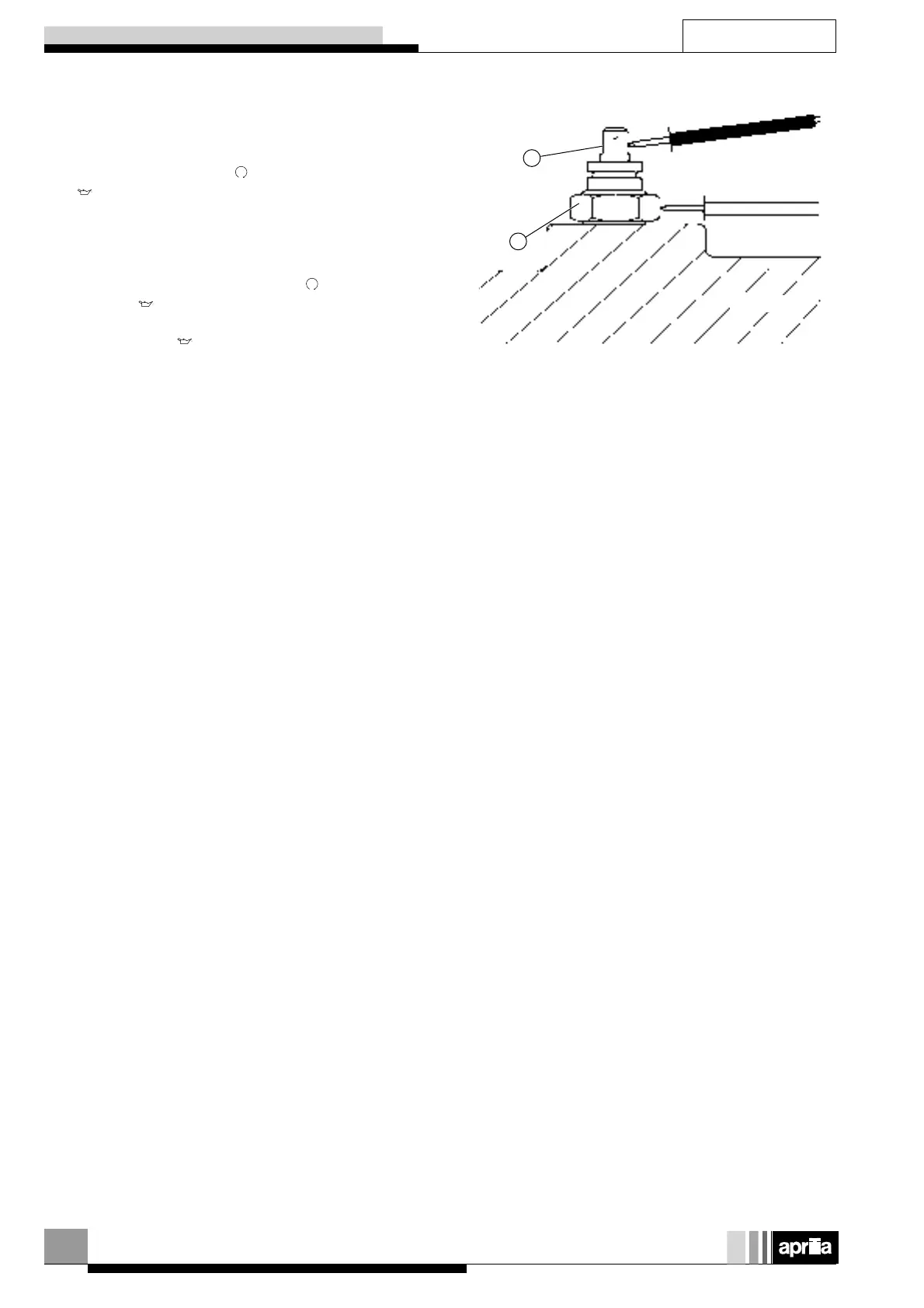

• Use a tester (scale 100 Ω) to check the continuity
between the tab terminal (1) and the body of the
sensor (2) (see figure).
Correct value (engine off): 0
ΩΩ
ΩΩ
Ω
Correct value (engine on): ∞
ΩΩ
ΩΩ
Ω
If the values do not correspond to those given, check
to see that the engine oil level is correct, see (CHECK-
ING THE ENGINE OIL LEVEL AND TOPPING UP)
and replace the sensor, if necessary.
1
2
ENGINE

APRILIA ATLANTIC 500 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic Fuel Injection
Transmission	Automatic CVT
Front Suspension	Telescopic fork
Front Tire	120/70 - 14
Rear Tire	140/60 - 14
Front Brake	Single disc
Rear Brake	Single disc
Seat Height	780 mm
Fuel Capacity	15 liters
Rear Suspension	Double hydraulic shock absorber with adjustable preload
