APRILIA ATLANTIC 500 Workshop Manual

Cycle parts
chap. 7
7-36
Release 00 2002-09
Atlantic 500

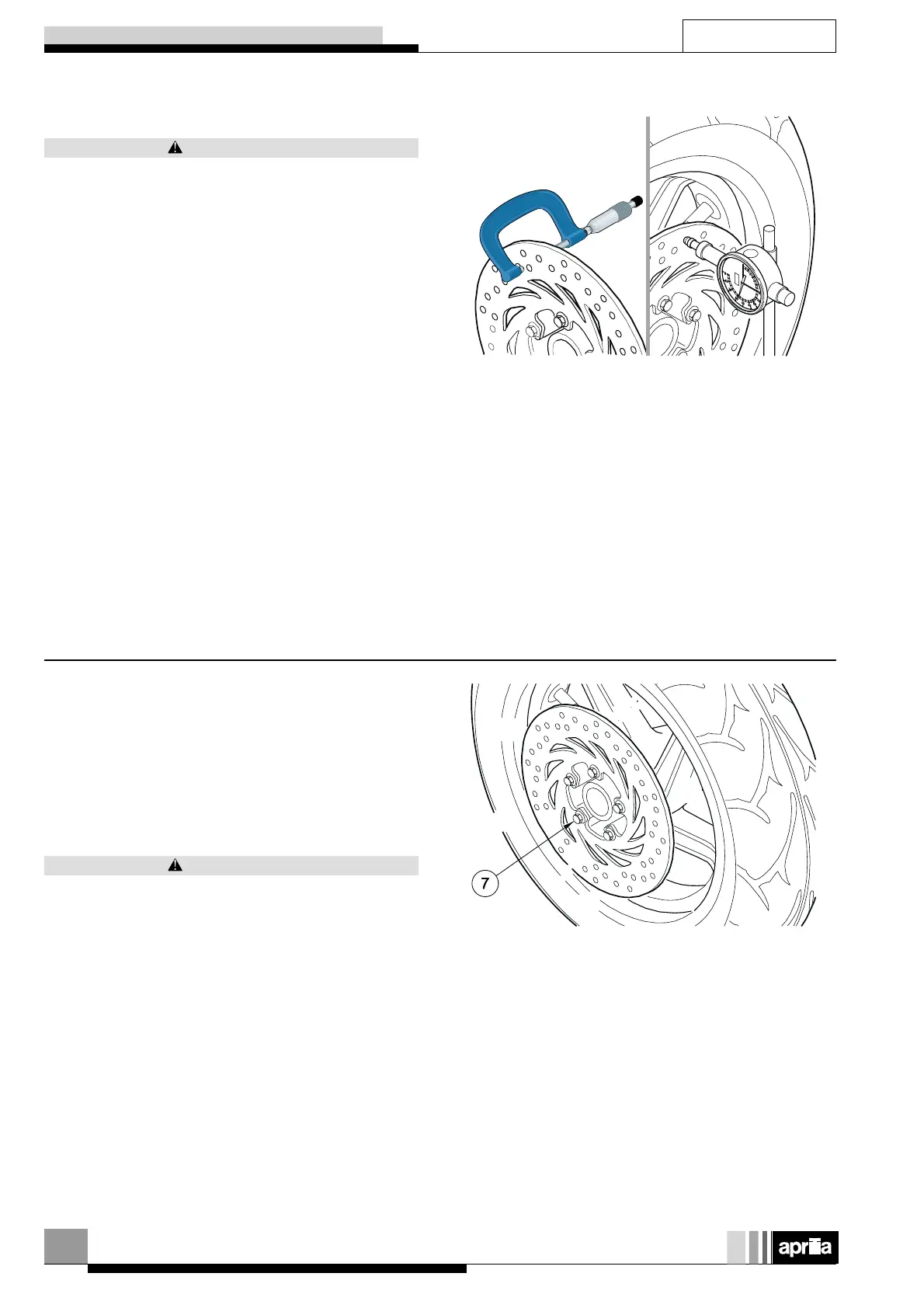

CHECKING THE BRAKE DISC
This check must be done with the brake disc
installed on the wheel.
Make a visual check of the brake disc surface. If there
are any lines or signs of wear, replace the disc, see
(REMOVING THE BRAKE DISC).
Check the brake disc for wear by measuring the
minimum thickness in different points using a mi-
crometer. If the minimum thickness is less than the
limit value, even in a single point, replace the disc.
Minimum brake disc thickness value: 0.137 in (3.5 mm)
Use a dial indicator to check that disc oscillation does
not exceed tolerance levels and if it does, replace the
disc.
Brake disc oscillation tolerance: 0.004 in (0.1 mm)
CAUTION
REMOVING THE BRAKE DISC
Read carefully (PRECAUTIONS AND GENERAL
INFORMATION).
Remove the rear wheel, see (REMOVING THE REAR
WHEEL).
Unscrew and remove the five brake disc screws (7).
When refitting, apply LOCTITE
®
270 to the brake
disc screw threads.
Remove the brake disc.
CAUTION

APRILIA ATLANTIC 500 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic Fuel Injection
Transmission	Automatic CVT
Front Suspension	Telescopic fork
Front Tire	120/70 - 14
Rear Tire	140/60 - 14
Front Brake	Single disc
Rear Brake	Single disc
Seat Height	780 mm
Fuel Capacity	15 liters
Rear Suspension	Double hydraulic shock absorber with adjustable preload
