Cycle parts
chap. 7
7-30
Release 00 2002-09
Atlantic 500
INSPECTION

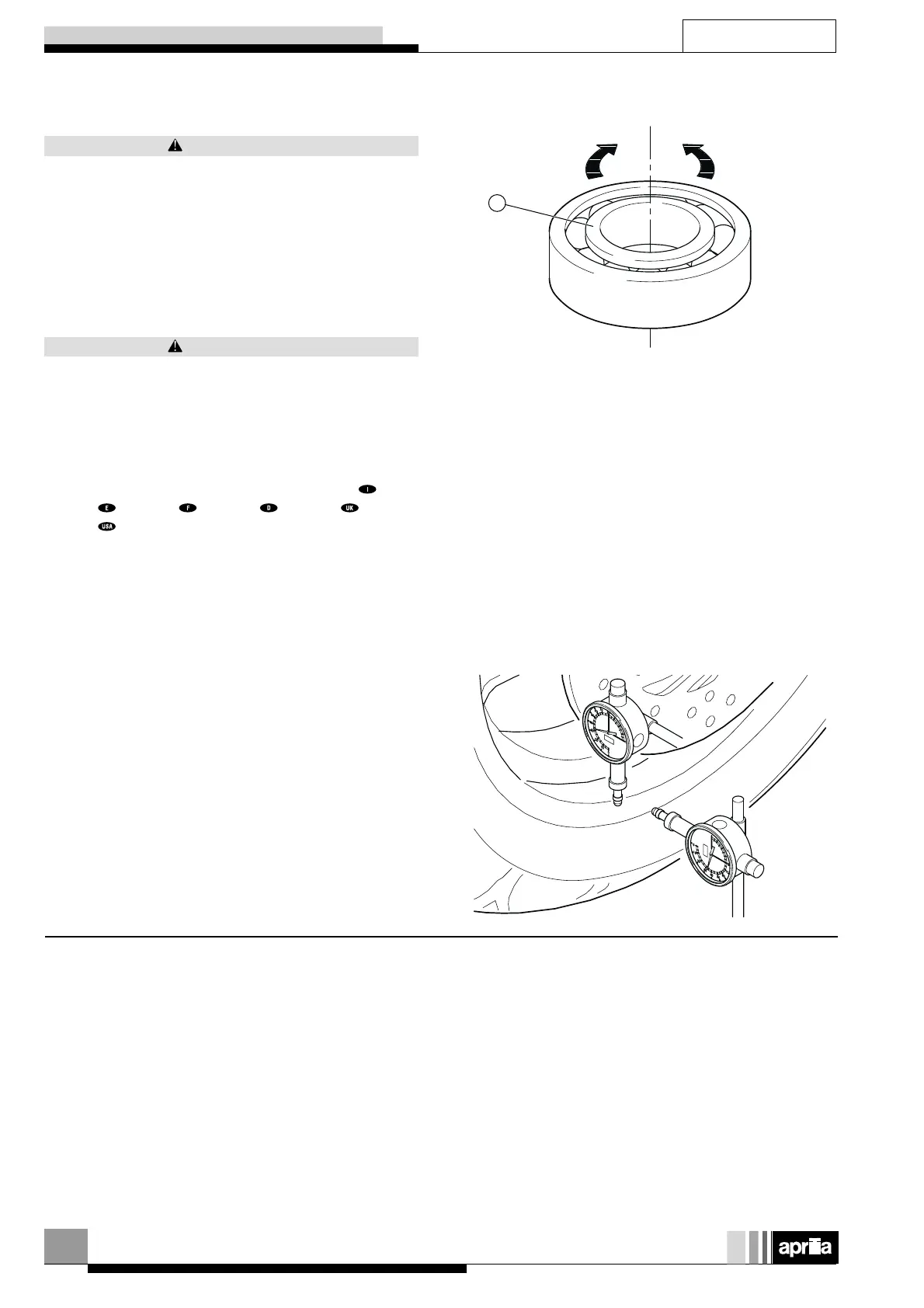

Inspect the condition of all the components,
especially the ones listed below.
Bearings
Rotate the internal ring (1) manually: there must be no
catching or noise.
There must be no end float.
Any bearings not meeting these requirements must be
renewed.
Apply grease to the balls (or rollers) at the side of
each bearing, see (LUBRICANT CHART) .
This operation is not required of the bearing is of
the self-lubricating type.
Rear axle
See ENGINE WORKSHOP MANUAL n°1063 ,
n°1064 , n°1065 , n°1066 , n°1067 and
n°1068 .
Rim
Using a dial indicator, determine that the radial and
axial runout of the rim are within specification.
Excessive runout is usually caused by worn or dam-
aged bearings or a bent axle. If after checking these
components, you determine the rim still does not meet
specification, the rim must be replaced.
Max. radial and axial runout: 0.078 in (2 mm).
Tires
Check the condition of the tires, see (TIRES).
CAUTION
1
CAUTION
FRONT BRAKE
For general information, see (BRAKE FLUID).
For information about the following:
Brake system parts, see (BRAKING SYSTEM).
Brake pad wear checks, see (CHECKING THE WEAR
OF THE BRAKE PADS).
Bleeding the brake system, see (BLEEDING THE
BRAKING SYSTEM).
