Cycle parts
chap. 7
7-13
7
Release 00 2002-09
Atlantic 500

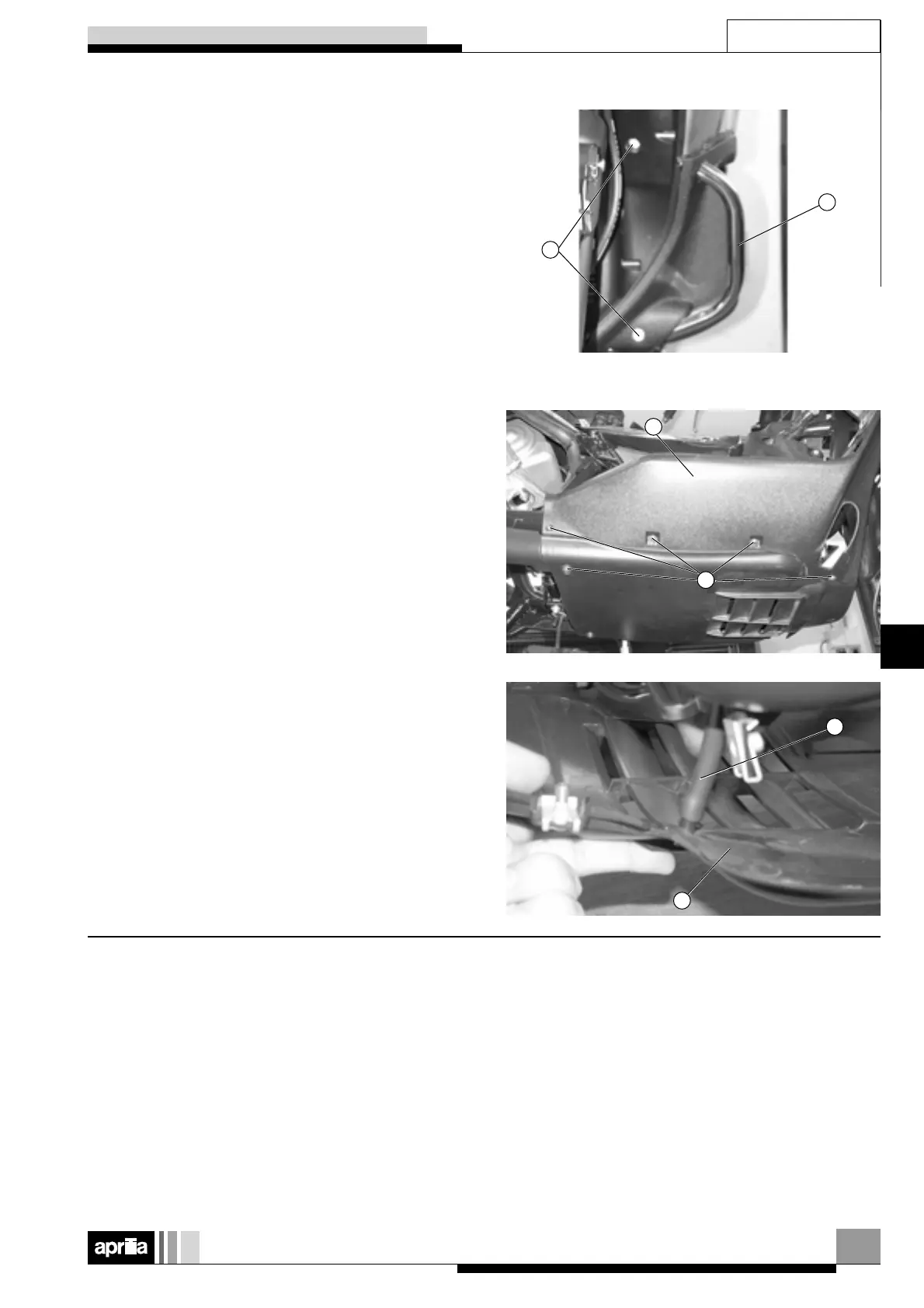

REMOVING THE FOOTREST SUPPORT AND
BOTTOM SPLASH GUARD
Remove the leg shield, see (REMOVING THE LEG
SHIELD).
Remove the central tunnel, see (REMOVING THE
CENTRAL TUNNEL).
Unscrew and remove the two screws (1).
Remove the chrome-plated protection pipe (2).
Unscrew and remove the 5 screws (3).
Remove the footrest support (4).
2
1
4
3
5
6
Support the bottom splash guard (5).
Disconnect the bleeder pipe (6) from the coolant tank.
Remove the bottom splash guard (5).
