aptos MAC 800R - Wiring Diagrams

28
Appendix 2:

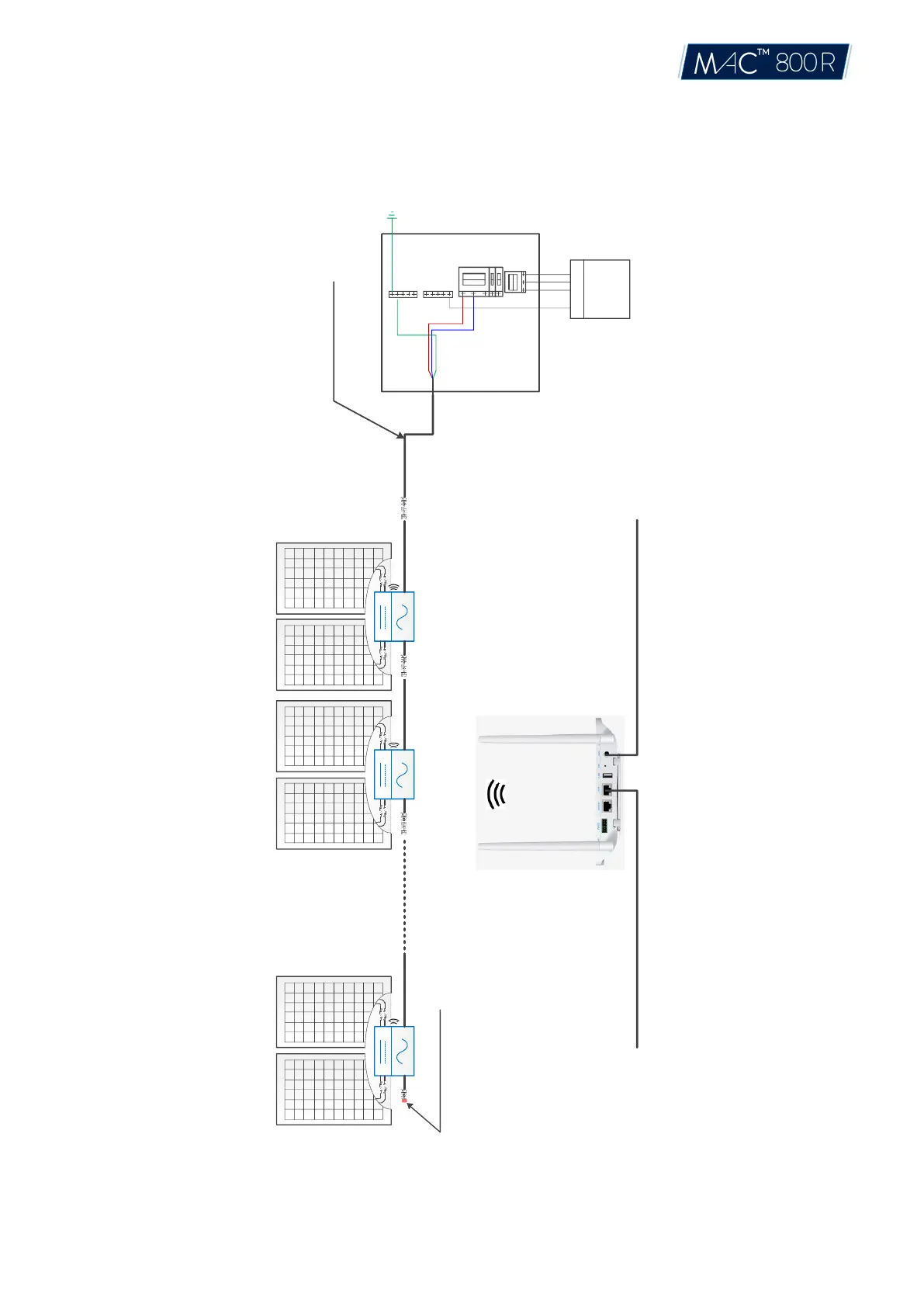

WIRING DIAGRAM –120VAC / 240VAC SPLIT PHASE:
GROUND
NEUTRAL
W
AC DISTRIBUTION PANEL
OR SUBPANEL
METER
AC BRANCH CABLE
BROWN - L
BLUE - N
YELLOW&GREEN - G
BRANCH END CAP
L1
PHASE-L1&L2
ETHERNET CONNECTION
TO BROADBAND ROUTER
CONNECTION TO DTU
POWER ADAPATER
5V
L2
© 2021 Aptos Solar Technology, LLC. All rights reserved.
UP TO 5 MAC
TM
800R
PER AC BRANCH CIRCUIT
DTU
UP TO 49 MAC
TM
800R
